Cup capacity 0.34 litres 2.1-2.8 Required pressure(kgs/sq.cm)
1(HP) Min. Air Compressor
115-170(4-6)Air Consumption of rated pressure lit/min(c.f.m)
Description

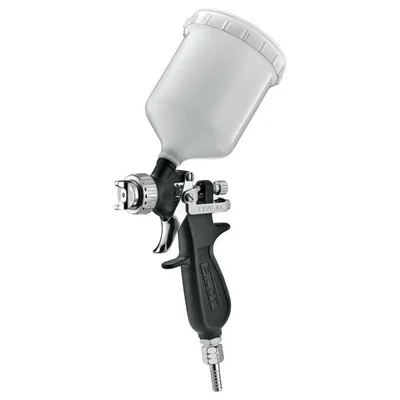

Pilot High Pressure Spray Gun With Plastic Top Feed Cup,0.34 Litre (Type 64N)
Description :
Spray guns are painting tools that atomize liquids into precise patterns using compressed air from a nozzle. The spray nozzle works by impinging highly turbulent air at high speed onto liquid filaments or films, forcing them to collapse into a variety of sized droplets.
Features :
Lightweight Gravity Feed Spray Gun
Flexible Air cap facility spray from round concentrated to fan pattern
Applications :
Electrical equipments
Sports Goods
Computer Cabinets
Furniture
Automobiles
Specifications :
Model no : 64000N
Product Type : Air Spray Gun
Brand : Pilot
Type : 64N
Cup capacity(Litres) : 0.34
Gun distance from workpiece mm(inch) : 228.6(9)
Fluid nozzle orifice dia(mm) : 1.6
Required pressure(kgs/sq.cm) : 2.1-2.8
Air Consumption of rated pressure lit/min(c.f.m) : 115-170(4-6)
