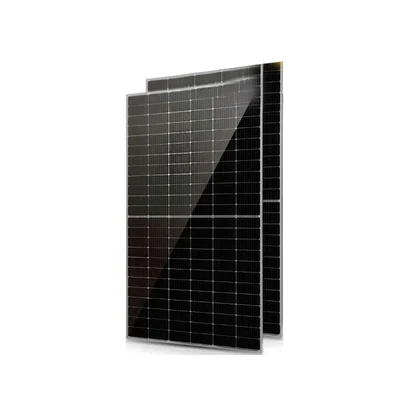

SERVOTECH TOPCon-600W N-Type Bifacial Module Solar Panel 144 Half-Cut Cells

Brand: Servotech

SERVOTECH TOPCon-600W N-Type Bifacial Module Solar Panel 144 Half-Cut Cells

Name: SERVOTECH TOPCon-600W N-Type Bifacial Module Solar Panel 144 Half-Cut Cells
Brand: Servotech
SKU: TI-S3-37655
Price: 32500 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-S3-37655

MRP : ₹45500 ₹32500

29% OFF!

2324 people have viewed this recently

Get Extra ₹488 OFF on Prepaid Orders

Estimated Delivery By: Oct 10 - Oct 12

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹32500 (Including GST)

MRP : ₹45500

29% OFF!

Get Extra ₹488 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

SERVOTECH TOPCon-600W N-Type Bifacial Module Solar Panel

144 Half-Cut Cells

Country of origin: India

Brand: Servotech
Weight (Approx.) : 27 kg

Nominal Maximum Power (Pmax) : 600W
Short Circuit Current (Isc) : 14.16
Open Circuit Voltage (VOC) : 51.42 V
Operating Current (Imp) : 13.60 A
Operating Voltage (Vmp) : 44.15 V
Module Efficiency (%) : 23.20 %
Operating Temperature : -40 degree C to 80 degree C
Maximum System Voltage : 1500 V
Maximum Series Fuse Setting : 25 Amp
Application Classification : Class A
Power Tolerance : +-3

MECHANICAL DATA

Solar Cells : N-Type Bifacial TopCon 91mm x 182mm
Cell Orientation : 144 half cut cells (12x12)
Module Orientation : 2278 x 1134 x 35 mm
Weight : 27 kg
Front Glass : 3.2 mm toughened textured glass
Back Sheet : White
Frame : Anodized Aluminum Alloy
Junction Box : IP68 Split Junction Box, 3 Diode
Cable and Connectors : 4mm2 AWG 1500V MC4 Connector
Standard Packing : 25/29 Panels per Pallet
Module Pieces per container : 600 Pieces/ Modules/Panels (40HQ)

15% Power Output (W) : 690W
Module Efficiency (%) : 26.71
20% Power Output (W) : 720
Module Efficiency (%) : 27.88
25% Power Output : 750
Module Efficiency (%) : 29.04
30% Power Output (W) : 780
Module Efficiency (%) : 30.20

The 600W N-Type TOPCon 144 Half-Cut Cell Bifacial Solar Module delivers industry-leading photovoltaic power generation for commercial, industrial, and utility-scale solar projects. Built with high-efficiency N-Type TOPCon cell technology, this module minimizes degradation while delivering a front-side peak power output of 600W at an impressive 23.20% efficiency. Engineered with dual-surface light capture capability, the bifacial architecture absorbs both direct sunlight on the front and ambient reflected light (albedo) on the rear surface. Under optimal reflective ground conditions, rear-side gain boosts total power output up to 780W with an ultra-high effective efficiency of 30.20%.

Features

Advanced N-Type TOPCon Cell Architecture: Offers superior temperature coefficient performance, lower LID/LeTID degradation, and enhanced low-light energy yield.
Bifacial Power Output Up to +30%: Rear-side illumination adds up to 180W of extra yield depending on ground albedo conditions.
Half-Cut Cell Configuration: 144 half-cut cells (12x12 matrix) reduce internal electrical resistance and mitigate hotspot risks under partial shading.
Heavy-Duty Weather Protection: Built with 3.2 mm textured toughened glass and an anodized aluminum alloy frame for high load endurance.
IP68 Water & Dust Proofing: Enclosed split junction box with 3 bypass diodes ensures reliable operation in harsh outdoor environments.
Container-Optimized Logistics: 25 to 29 modules per pallet, fitting up to 600 panels per 40HQ container for cost-effective freight shipping.

Applications

Utility-Scale Solar Farms: High peak wattage and 1500V system capability lower total Balance of System (BOS) wiring, racking, and inverter costs.
Commercial & Industrial Roofs: Delivers maximum power density on limited roof space with white or light-colored roofing membranes.
Agri-Photovoltaic (Agri-PV) Systems: Elevated mounting allows crops or livestock underneath while capturing reflected sunlight from soil and vegetation.
Solar Carports & Canopy Arrays: Open-underside structural installations take full advantage of ambient ground light reflection to generate maximum yield.
High-Albedo Ground Installations: Ideal for installation over snowfields, sandy terrain, gravel beds, or light concrete platforms.
