Features

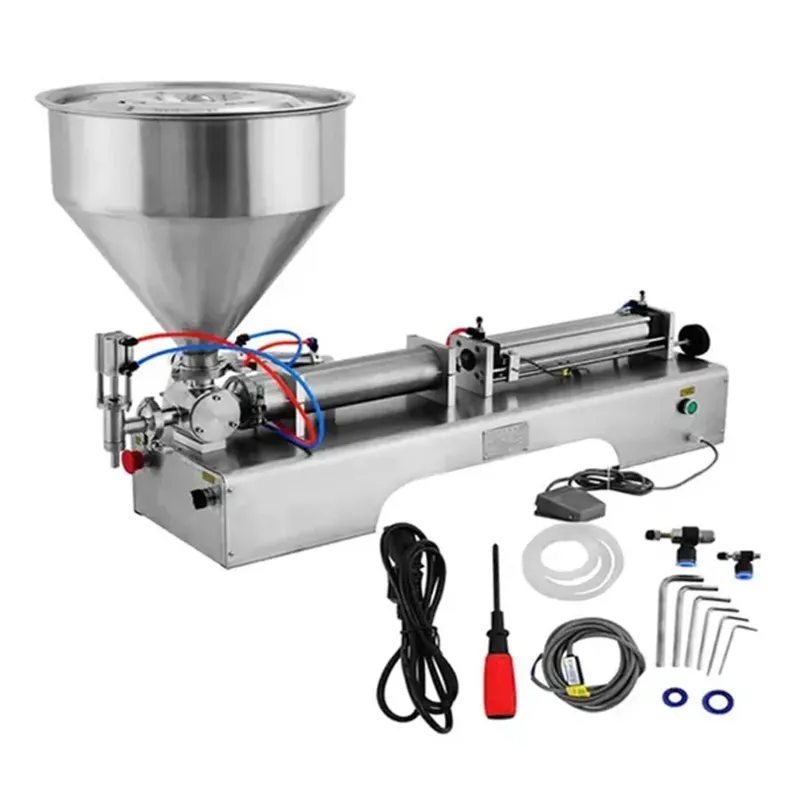

• Semi-automatic piston type filling machine.
• Automatic and manual switch, Emergency stop switch, you could stop and start the machine at any time.
• High accuracy filling, Filling volume and speed can be arbitrary regulation.
• Simple and reasonable structure, easy operation. All the parts that will contact the materials were made of 304 stainless steel, large-scope chrome plating structural parts, effectively prevent rust and stuck.
• This pneumatic filling machine is of wide applicability.
• It is suitable for filling viscosity liquid-like sauce, jam, shampoo, lotion, perfume, etc with soft particulate.

Specification

• Power source : 220V/110V
• Phase : Single
• Frequency : 50Hz
• Filling Head : Single Head
• Filling Volume : 100-1000 ml
• Capacity of Hopper : 20 L
• Air Supply : 200 LPM
• Air Pressure : 0.6 Mpa
• Efficiency : 600-1500 bottles per hr

Applications

• Food Industry : One of the primary applications of the single nozzle paste filling machine is in the food industry. It is designed to fill containers with high viscosity products such as sauces, creams, and other food items.
• Cosmetic Industry : In the cosmetic sector, the single nozzle paste filling machine is utilized for filling products that have a thick consistency.
• Pharmaceutical Industry : The pharmaceutical sector employs single nozzle paste filling machines for packaging various medicinal products.
• Chemical Industry : In chemical manufacturing, these machines are used to fill containers with viscous chemicals and adhesives.

Usage

• Setup the Machine : Place the machine on a stable, flat surface. Ensure that all parts are securely assembled according to the manufacturer’s instructions.
• Adjust the Filling Volume : Set the desired filling volume (between 100-1000 ml) using the adjustment knob.
• Prepare the Paste : Ensure that the paste is at an appropriate viscosity for filling. If necessary, mix or dilute it to achieve optimal flow.
• Fill the Hopper : Pour the prepared paste into the hopper of the machine, ensuring not to overfill.
• Select Operating Mode : Choose between manual or automatic mode based on your production needs.
• Start Filling Process : Press the start button or activate the foot pedal to begin filling. Monitor the process to ensure consistent filling and check for any clogs or issues.
• Collect Filled Containers : Position containers under the nozzle to catch filled paste. Ensure containers are stable and aligned properly for accurate filling.

• Regular Cleaning : After each production run, thoroughly clean all parts that come into contact with the paste. This includes the filling nozzle, hopper, and any other components.
• Inspection for Wear and Tear : Conduct regular visual inspections to check for signs of wear, leaks, or corrosion on seals and gaskets.
