Brand: HPM

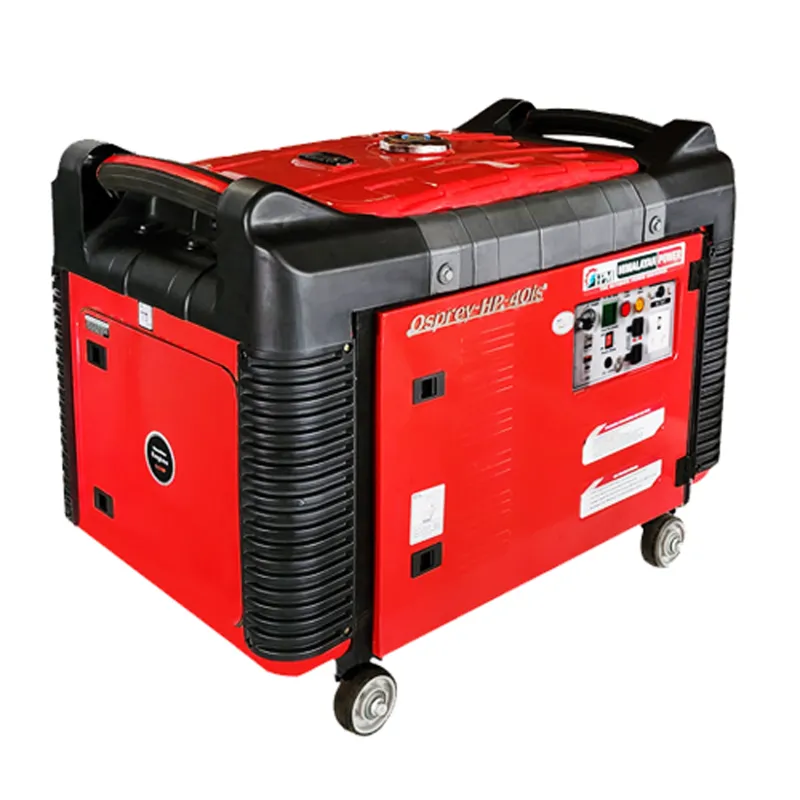

HPM 4 KVA Recoil & Self Start Portable Petrol Inverter Generator (Osprey HP-40is)
SKU: TI-H4-22495
1397 people have viewed this recently
Delivery By: Dec 24 - Dec 26
MRP : ₹162950 ₹116399
29% OFF!
1397 people have viewed this recently Delivery By: Dec 24 - Dec 26 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹116399 (Including GST)
MRP : ₹162950
29% OFF!
Get Extra ₹1,746 OFF on Prepaid Orders
Short Description
HPM 4 KVA Petrol Inverter Generator
Recoil and Self Start
16.5 Amp Rated Current Of Generator
20.5 Ltr. Fuel Tank Capacity
16 hr Run Time
Country of origin: India
Specifications
- Brand: HPM
- Weight (Approx.) : 71.5 kg
- Fuel Used : Petrol
- Fuel Consumption : 1 l/hr
- Model No. : Osprey HP-40is
- Battery Specification : 12 Volt 9 Ah Size
Generator :
- Max AC. Output VA : 4000
- Rated AC. Output VA : 3800
- Rated Current Amps : 16.5
- NFB Amps : 17
- AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
- Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
- Invertor : 100 KHz, IGBT Based Digital Invertor – 3 Kw
DC Outputs :
- DC 12 V – 120-Watt, CG Port
- Continuous Output Current : 10 A (Max. 120 Watt)
- 12V DC Output Over Load Current Protection : Yes >10 A (Disconnected Load Recovery)
- DC Output Short-circuit Protection : Yes (Disconnect Load Recovery)
- DC Outputs - 5V to 20 V & DC Ports USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
- USB Output Fast Charging QC 3.0 (3) : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
- Type - C USB (4) : 1* 'C' Type - 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A
Engine :
- Model : HM170P
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power : 6.5 HP @ 3600
- Bore x Stroke : 70 x 58 mm
- Displacement : 223 cc
- Starting System : Recoil Start + Self Start
- Governor : Electronic Governor (Load Sensitive – Variable Speed) Engine RPM 2200 (No Load) to 3800 RPM (at Full load)
- Fuel Tank Capacity : Petrol 20.5 Ltr.
- Run time: 16 hr. Approx.
- Fuel Consumption : Approx. Petrol 1.5 ltr/hr
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Sound level (from 1 meter) : < 86Db (as per CBCP - II Norms)
Panel & Other Standard Features :
- Multifunction Digital Meter & Indicator : Digital Console (V, Hz, Amp)
- Oil Alert System : Yes
- Over Load Indicator : Yes
- 2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
- Fuel Level Gauge : Yes
- AC On /Off, Overload Protection (NFB) : Yes
- Electronic Over Load Protection : Yes, Inbuilt with Inverter
- Castor Wheels : Yes
Description
The HPM 4 KVA Osprey HP-40is is a versatile portable petrol inverter generator featuring both recoil and self-start capabilities. It delivers reliable power for various applications, boasting a compact design for easy transport. With advanced inverter technology, it ensures stable voltage output, making it suitable for sensitive electronics while maintaining fuel efficiency.
Features
:- 4 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
Accessories
:- Owner Manual 1 pc
- Funnel 1 pc
- Screw Driver 1 pc
- Spanner 1 pc
- Three Pin Plug 1 pc
Applications
:- Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipment's, Military & Powering Defense Equipment's etc.
