Brand: Generic (Imported)

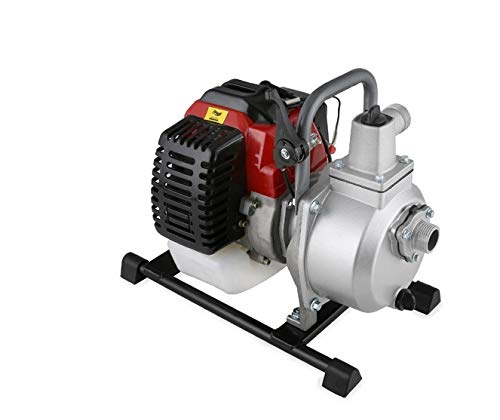

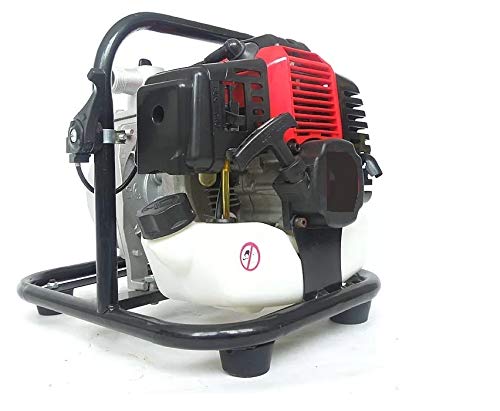

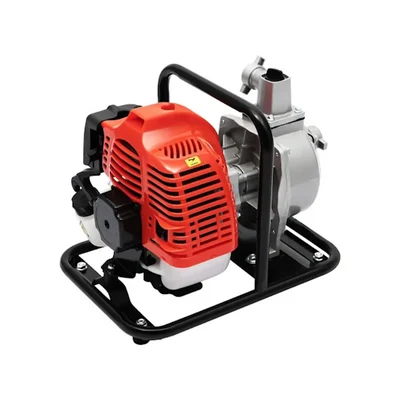

Heavy Duty 2-stroke 1.5 inch Petrol Water Pump for Irrigation Purposes
SKU: DK-GT-2305
₹6990 (Including GST)
MRP : ₹8500
Get extra ₹105 Discount (On Checkout)
Delivery By: May 6 - May 8
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Heavu Duty 26-cc Water Pump
1.5 inch (38 mm) Outlet & Inlet Size
Country of origin: China
Description
A water pump is a machine that is used to transfer water from one location to another. This can be used to transfer water from one place to another which can be used for irrigation, or it can be used to remove water from an area to prevent damage. Agricultural 1HP Water Pump petrol engine are highly efficient, energy-saving, lightweight, and compact easily maintainable design that is required in irrigation.
Features
:- Potable Design : It is designed to handle the most toughest jobs like irrigating a field, draining a pool in no time, pump out a flooded trench, fill or empty a water storage tank.
- Extra Lifting Capacity: It has higher suction power and give high discharge in its operating range.
- Highly efficient, energy-saving, lightweight, and compact easily maintainable design that is required in irrigation.
Specification
:- Brand: Generic (Imported)
- Power : 1 hp
- Weight (Approx.) : 9 kg
- Fuel Used : Petrol
- Displacement : 26 cc
- Stroke : 2
- Speed : 3600 RPM
- Fuel Tank Capacity : 1.2 Liter
- Oil Mixing : 50 ml 2T in 1L Petrol
- Fuel Consumption : 700 ml/hour
- Suction (vertical) : 6 m (Approx.)
- Delivery Distance (horizontal) : 25 meter
- Inlet Size : 1.5-inch (38 mm) (Approx.)
- Outlet Size : 1.5-inch (38 mm) (Approx.)
- Output Capacity : 8000 liter / Hour
Note : Color may vary
Accessories
:- Foot Valve
- Washers
- Clamps
- Coupling
- Toolkit
- User Manual
Usage
:Before you start:
- In a clean fuel container, mix 2T oil with petrol in the desired ratio (40 ML Oil in 1 Liter Petrol)
- Shake the container well to mix the fuel.
- Attach the suction hose to the pump's intake and the delivery hose to the outlet.
- Ensure all connections are secure and leak-free.
- Prime the pump by filling it with water through the priming plug. This removes air and prepares it to draw water effectively
Starting the Engine:
- Ensure the fuel valve is open, allowing petrol to flow to the engine .If the engine is cold, engage the choke.
- Pull the recoil starter cord gently until you feel resistance, then give it a sharp tug.
- Repeat until the engine starts.
- Once the engine starts, gradually disengage the choke as it warms up.
- Adjust the throttle to control the water flow rate
**Turn off the engine and allow it to cool before refueling.
Applications
:- Used in agriculture fields, irrigation, farming land, gardening, farmhouses, fountains, drain water from a basement or shallow flooded areas, drain and fill a swimming pool or dam.
