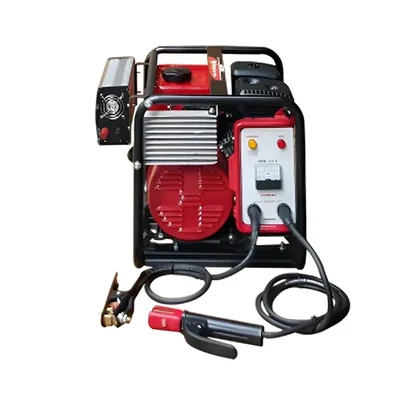

HPM 175 Amp Portable Petrol DC Welding Machine and Generator, Welds up to 4 mm Electrode

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

DC Welding Machine and Generator, 175 Amp

AC Output & 1.5 KVA Inverter

Welds Up to 4 mm Electrode

Description

HPM 175 Amp Portable Petrol DC Welding Machine and Generator, Welds up to 4 mm Electrode

Descriptions :

•  Ultra Light& Low Cost Arc Welding Machine Suitable for General Purpose Structural Welding, Light and medium Welding Generator, Welds up to 4 mm Electrode

Features :

• World’s Ultra Light & Low Cost Arc Welding
• Machine Suitable for General Purpose, Structural Welding, Light and medium.
• Overload Protection

• Power Indicator
• Engine Oil Protection ( Electronic Oil Alert & Indicator)


Specifications :

• Model No : HPW 175 AC
• Product Type : Welding Machine and Generator
• Brand: HPM
• Dimension (LxWxH) : 440 x 385 x 420 mm

• Weight : 27 Kg (Approx)


DC Welding :

• Maximum Output  : 175 Amps, 3.5 KW
• Maximum AC Output (optional) : 1000 VA
• Working Voltage : 20-30 V
• Open Circuit Voltage : 50 Volt (Maximum)
• Current Regulation Amps : 75 -160 Amps
• Rectifying Mode : 3 phase- Bridge Rectifier (Full Wave)

• Maximum Electrode diameter : 2.5 mm to 4 mm


Engine :

• Model : HM170 P

• Type : Single Cylinder Air-cooled; 4-stroke, OHV  25° Inclined

• Maximum Power : 6.5 HP

• Bore x Stroke : 70 x 54

• Displacement : 208 cc

• Starting System : Recoil Start

• Ignition System : TCI (Transistor Control Ignition)
• Fuel : Standard Petrol
• Fuel Tank Capacity : 3.6 Ltr

• Fuel Consumption Ltr/Hr : 1 Ltr / Hr

• Continuous Operating Hour : 3.5 Hrs

• Lube. Oil Capacity : 600 ml

• Lubricating Oil Consumption : 2.5 gm/Hr


Accessories :

• Tool Kit (1 Set)
• Welder Holder (1 Set)

• Earthing Clamp with 3 Mtr. Cable (1 Set)

• Oil Funnel

• Owner's Manual


Note :

• Do not use the welder for work other than welding.
• Do not touch the live part.
• Do not solder in places where skimming, cleaning and spraying are required.
• When using, please wear a protective cover or protective clothing.
