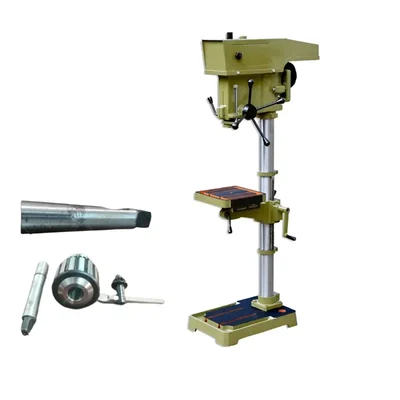

20 mm Commercial Bench Drill Machine Without Motor

• Required Motor : 1 HP
• Tilting working table : Fixed

• Drilling capacity : 20 mm

• Pillar Diameter : 74.30 mm

• Spindle nose-to-table distance : 660mm

• Distance from spindle nose to base distance : 900 mm

• Distance from spindle center to pillar surface : 200 mm

• Table travel : 381 mm

• Taper in spindle : MT-2

• Number of speed : 8 Speed

• Range of Speed : 87 to 3224 RPM
• Table size : 270 x 270 mm

• Base size : 480 x 300 m/c area in mm

• Over all base size : 490 x 310 mm

• Spindle travel : 130 mm

• Pillar length : 1170 mm

• Over all height with pulley guard : 1420 mm

• V-belt section : A-42"

• Shipping Dimension (L x W x H) : 660 x 380 x 1440 mm

• The bench drill is used for heavy-duty drilling and making holes in wood, metal, aluminum steel, etc.
• These machines are primarily used for several drilling purposes and are configured on the lines of advanced technological procedures.
• Bench pillar drill or pedestal drill as it is called is used mainly in workshops, garages, and small industries where very accurate vertical drilling is required.

Features

• Ergonomically Design
• For Commercial Usage
• Efficient Usage
