S.S Top Feed Cup 0.34 Litre high Pressure Spray Gun
115-170(4-6)lit/min(c.f.m)Air consumption of rated pressure
180(mm)Max. pattern width
1(HP)Min. Air-compressor
Description

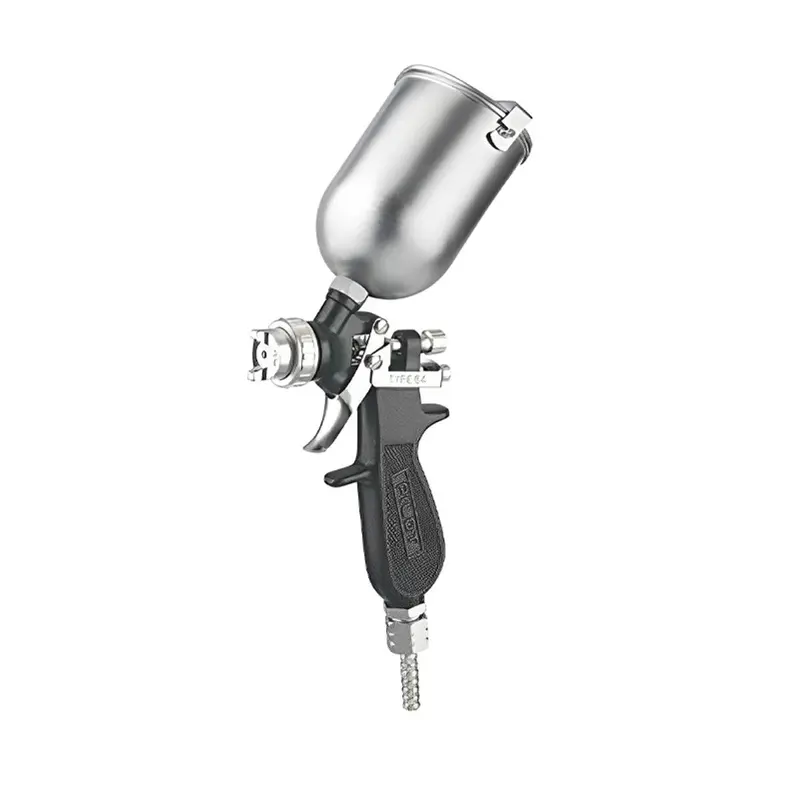

Pilot high Pressure Spray Gun with S.S Top Feed Cup,0.34 Litre (Type-64S)
Description :
Spray guns are painting tools that atomize liquids into precise patterns using compressed air from a nozzle. The spray nozzle works by impinging highly turbulent air at high speed onto liquid filaments or films, forcing them to collapse into a variety of sized droplets.
Features :
Lightweight gravity feed spray gun
Flexible air cap facilitating spray from round concentrated to fan pattern.
Applications :
Electrical equipments
Sports Goods
Computer Cabinets
Furniture
Automobiles
Specifications :
Model no : 64000S
Product Type : Paint Spray Gun
Brand : Pilot
Type : 64S
Cup capacity (litres) : 0.34
Gun distance from workpiece mm(inch) : 228.6 (9)
Fluid nozzle orifice dia.(mm) : 1.6
Required pressure (kgs/sq.cm) : 2.1-2.8
Air consumption of rated pressure lit/min(c.f.m) : 115-170(4-6)
