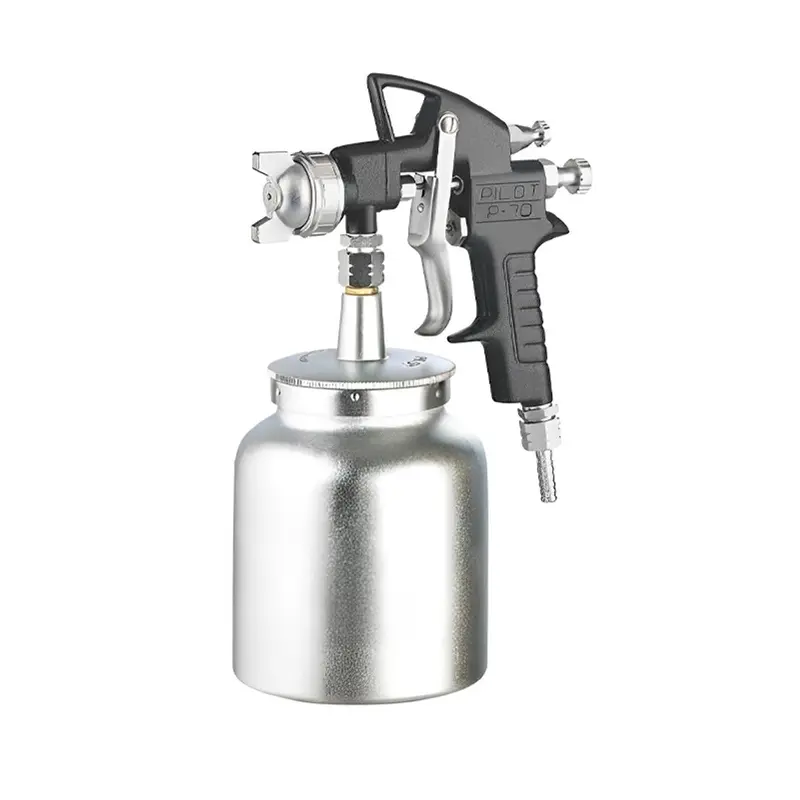

1 litre High pressure Spray Gun with bottom feed cup
1.7(mm)Fluid nozzle orifice dia.
2.5-5(kgs/sq.cm)Required pressure
200-283(7-10)lit/min(c.f.m)Air consumption of rated pressure
Description
Pilot High pressure Spray Gun With Bottom Feed Cup,1 litre (Type P- 70)
Description :
Spray guns are painting tools that atomize liquids into precise patterns using compressed air from a nozzle. The spray nozzle works by impinging highly turbulent air at high speed onto liquid filaments or films, forcing them to collapse into a variety of sized droplets.
Features :
High Speed production
Spray-jet variable from round concentrated to wide fan pattern
Applications :
Automobiles
Ship building
Industries
Specifications :
Model no : 70000
Product Type : High pressure Spray Gun
Brand : Pilot
Type : P-70
Cup capacity (litres) : 1
Gun distance from work piece mm(inch) : 228.6(9)
Fluid nozzle orifice dia. (mm) : 1.7
Required pressure (kgs/sq.cm) : 2.5-5
Air consumption of rated pressure lit/min(c.f.m) : 200-283(7-10)
