Brand: Neptune

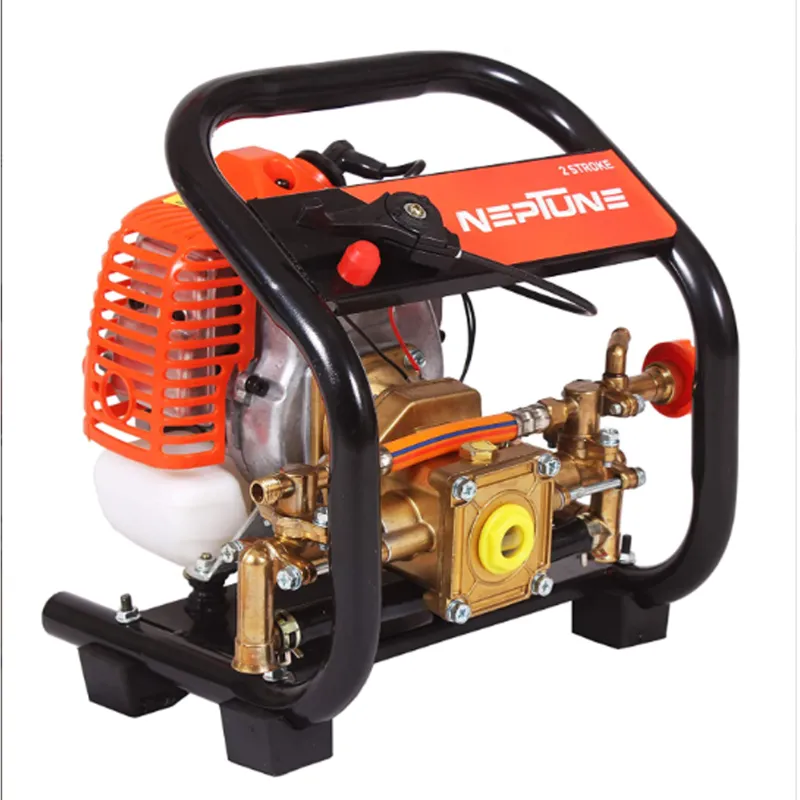

Neptune PW-768A , 2 Stroke 26 CC Portable Power Sprayer with 15 meter Hose Pipe for Agriculture and Gardening Purpose
SKU: AT-SD-20236319
₹7950 (Including GST)
MRP : ₹9000
Get extra ₹119 Discount (On Checkout)
Delivery By: May 20 - May 22
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

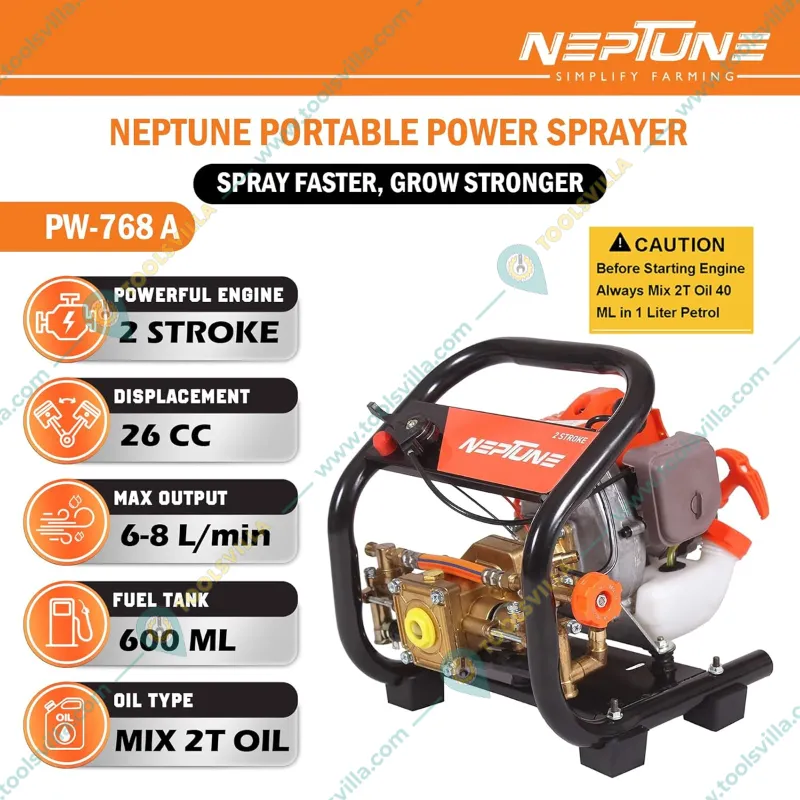

Neptune PW-768A, Portable Power Pressure Sprayer
0.7kW Power

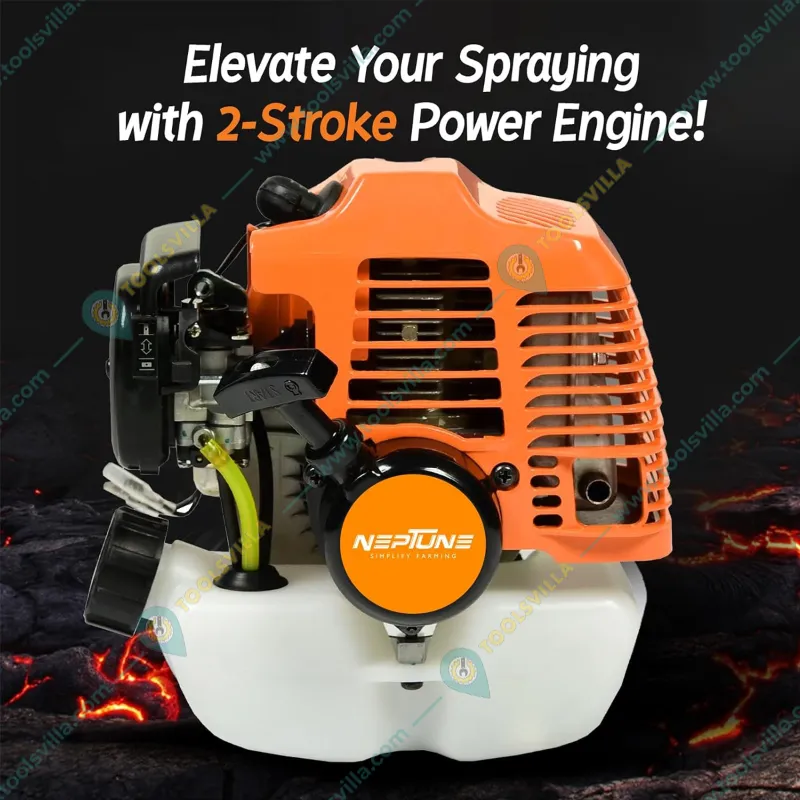

2 Stroke and 26CC Petrol Operated Engine
Country of origin: India
Description

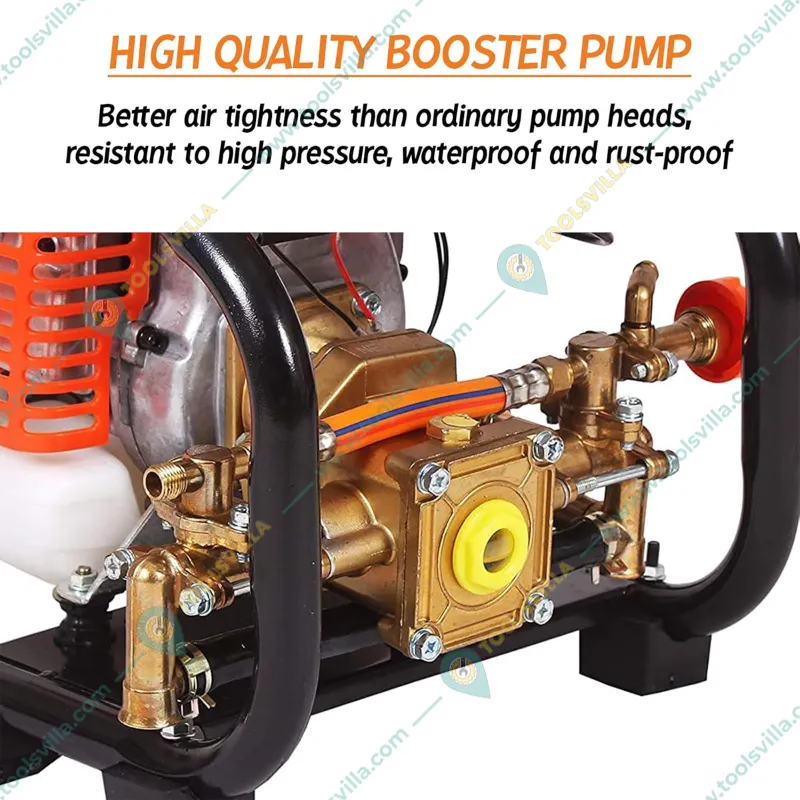

Neptune PW-768A sprayer is very versatile cleaning & Spraying equipment. This one is Supplied with forced air cooled 2 Stroke petrol Engine and is equipped with a Aluminum pump that makes it more reliable and powerful
Features
:- Capable of very high pressure
- Less fuel consumption
- Economic for spraying costly pesticides
- Easy & Quick Cleaning
Specification
:- Brand: Neptune
- Power : 0.7 kw
- Stroke : 2
- Weight (Approx.) : 10 kg
- Model No. : PW-768A
- Pump Material : Aluminum
- Displacement : 26 CC
- Gun Length : 60 cm
- Gun Type : hijet
- Flow Rate : 10-12 lpm
- Suction Volume : 10-14 lpm
- Sparing Range (Vertically & Horizontally) : 20-25 Feet (6-7.5 Meter)
- Mixed Fuel Ratio : 40 ml 2T oil in 1 Liter petrol
- Fuel tank capacity : 700 ml (approx)
- Fuel consumption : 600 ml / hour
- Gross Weight : 10 kg (Approx.)

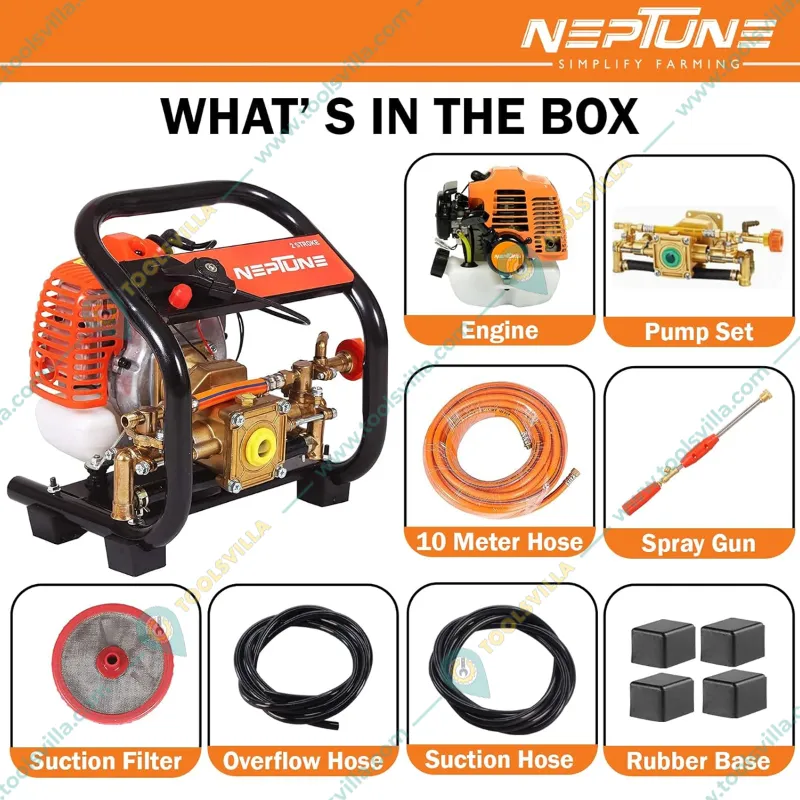

Accessories
:- Suction pipe (3-5 meter)
- Overflow hose pipe (5-10 meter)
- Strainer Filter

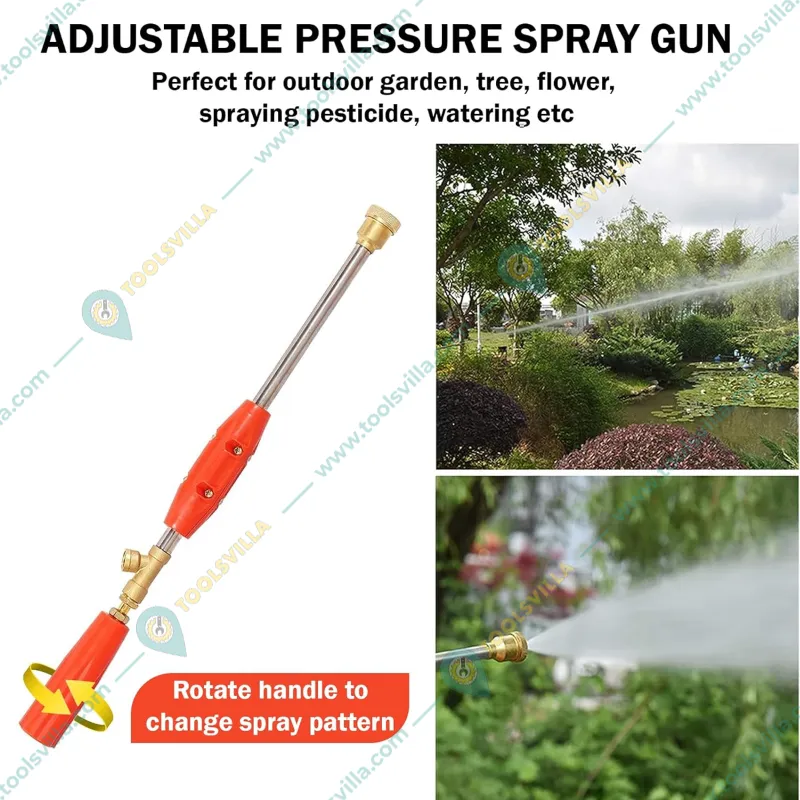

- Spray Gun 1 pc
- Hose Pipe 15 Meter
- Oil mixing can
- Tool Kit
- User manual
Applications
:- Pest Control: Effective for spraying pesticides on various crops, including cotton, vegetables, and fruit trees, to manage pest populations.
- Disease Management: Used to apply fungicides and other protective chemicals to prevent crop diseases.
- Fertilizer Application: Facilitates the delivery of liquid fertilizers directly to plants, enhancing nutrient uptake.
- Sanitation: Employed in urban settings for disinfecting public spaces and controlling health risks associated with pests.
- Versatility: Suitable for both small and large areas, making them adaptable for various agricultural tasks.
Usage
:Before you start :
- Read the Manual properly and Wear Personal Protective Equipment.
- Ensure the air filter is clean and the tank is securely closed.
Starting the machine:
- Mix 2T oil with petrol in the desired ratio (40ml oil in 1liter petrol)
- Pour the fuel mixture into the tank, leave some space in the tank to allow for expansion.
- Locate the primer bulb at the bottom of the carburetor.
- Pump the primer bulb 5-7 times until you see fuel flowing through the fuel lines. This step is crucial as it ensures that fuel reaches the engine.
- Pull the recoil starter grip until you feel resistance, then pull briskly to start the engine.
- Once you hear the engine flutter, push down on the choke.
How to stop the machine:
- Move the throttle control to the “OFF” position or turn off the ignition switch. This will stop the engine from running.
