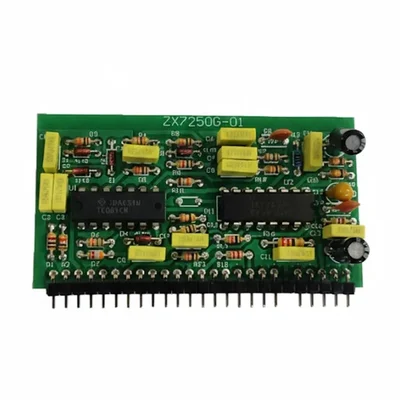

NG Weld 8 IGBT Vertical Card ZX7250G-01, Power Control Board for Inverter Welding Machines, 8 IGBT Unit
SKU: TI-NW-54399
Delivery By: Jan 10 - Jan 12
MRP : ₹804 ₹619
23% OFF!
Delivery By: Jan 10 - Jan 12 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹619 (Including GST)
MRP : ₹804
23% OFF!
Get Extra ₹9 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Vertical PCB Design
8 Heavy-Duty Power IGBTs MMA / MIG / TIG Inverter Stages
Country of origin: China
Specifications
- Brand: Imported
- Weight (Approx.) : 100 gm
- Model Number : ZX7250G-01
- IGBT Count : 8 Heavy-Duty Power IGBTs
- Mounting Style : Vertical PCB Design
- Cooling Compatibility : Forced Air Cooling Compatible
- Application : MMA / MIG / TIG Inverter Stages
- Board Material : Industrial Grade FR4 with Heat-Resistant Coating
Description
The NG WELD ZX7250G-01 is a heavy-duty vertical power card featuring 8 high-performance IGBTs. Designed for industrial MMA, MIG, and TIG inverters, it ensures superior switching efficiency and a stable welding arc. Its vertical PCB architecture allows for compact installation and enhanced airflow, making it the perfect choice for continuous, high-load industrial welding applications.
Features
:- 8-IGBT Powerhouse : Equipped with eight high-power IGBTs for exceptional current handling and switching speed.
- Vertical Space-Saver : Slim vertical design optimizes internal machine space and improves thermal dissipation.
- Superior Arc Performance : Engineered to provide a smooth, splatter-free arc even under continuous heavy-duty loads.
- Industrial Durability : Built with low-loss components to ensure high efficiency and a long operational lifespan.
- Heat Resistant : Robust PCB traces designed to withstand the high temperatures of professional welding.
Usage
:Usage Guidance :
- Thermal Prep : Ensure high-quality thermal paste is applied between the IGBTs and the machine’s main heat sink.
- Mounting : Secure the card vertically into the designated slot, ensuring all standoffs are tight to prevent vibration.
- Isolation : Check for proper insulation between the IGBT collectors and the heat sink to avoid electrical shorts.
- Soldering : Use industrial-grade solder for the primary power leads to ensure a low-resistance connection.
Maintenance Guidance :
- Airflow Check : Regularly clean the card with dry compressed air to remove conductive metal dust from the IGBT legs.
- Tighten Fasteners : Periodically check that the mounting screws haven't loosened due to machine vibration.
- Visual Audit : Inspect the IGBT casing for any signs of discoloration or thermal stress.
