Brand: Wadfow

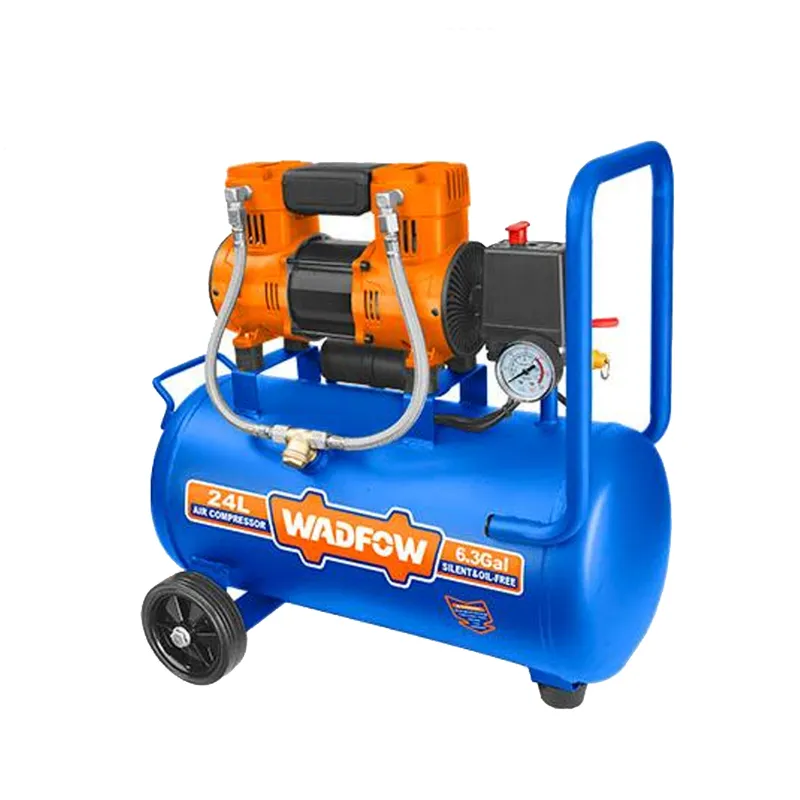

Wadfow 24L Oil Free Air Compressor with 1.5 HP Aluminium Winding Motor (WAP1A24)
SKU: SD-PT-21110
840 people have viewed this recently
Delivery By: Dec 12 - Dec 14
MRP : ₹16100 ₹10899
32% OFF!
840 people have viewed this recently Delivery By: Dec 12 - Dec 14 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹10899 (Including GST)
MRP : ₹16100
32% OFF!
Get Extra ₹163 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Wadfow 24L Oil Free Silent Air Compressor
67 dB Noise level
Max. 8 Bar Pressure
2850 RPM Speed
Country of origin: China
Specifications
- Brand: Wadfow
- Weight (Approx.) : 18 kg
- Max. Pressure : 8 bar
- Model No. : WAP1A24
- Voltage : 220-240V~50Hz
- Input power : 1.5 HP (1100 W)
- Tank Capacity : 24 L (6.3 Gal)
- Motor Winding : Aluminium
- Noise : 67 dB
- No-load Speed : 2850 RPM
Description
The Wadfow 24L Oil Free Air Compressor with 1.5 HP aluminium winding motor (WAP1A24) is a compact, low‑maintenance compressor designed for clean, reliable air supply for home, garage, and light industrial tasks. It combines a 24 litre tank with an oil‑free pump and aluminium motor for efficient performance, easy start‑up, and reduced servicing needs.
Features
:- 24 litre tank capacity supports short to medium duty cycles without frequent motor restarts.
- Oil‑free pump for low maintenance, cleaner air, and no oil changes.
- Around 1.5 HP (≈1100 W) aluminium winding motor for efficient cooling and durability.
- Operates on 220–240 V, 50 Hz mains supply, suitable for most households and small workshops.
- Noise level around 67 dB (approx.), providing relatively quiet operation compared to conventional compressors.
- Pressure gauge, regulator, and quick‑coupler outlet for easy control and connection of pneumatic tools (varies by region/model but standard on this class of unit).
- Portable chassis with wheels and handle for easy movement around the job site or workshop.
Applications
:- Inflation : Car, bike, scooter, and light truck tyres, as well as sports balls and inflatables.
- Workshop/DIY : Powering air blow guns for cleaning, staple guns, brad nailers, and light air tools.
- Painting and finishing : Operating small HVLP or touch‑up spray guns for furniture, grills, gates, or small panels.
- Maintenance tasks : Dust cleaning of filters, radiators, electronics housings, and work areas.
- Hobby and craft : Airbrush work (with reducer/regulator), modelling, and small craft projects where intermittent air supply is sufficient.
Usage
:- Place the compressor on a flat, stable surface and ensure good ventilation around the motor and pump.
- Connect to a 220–240 V power source, switch on, and allow the tank to pressurise until the pressure switch cuts off at the preset maximum.
- Set the outlet pressure using the regulator according to the requirement of the connected tool, then attach the air hose using the quick coupler.
- Use intermittently within the recommended duty cycle to avoid overheating; let the unit rest if it runs continuously for extended periods.
- After work, switch off the power, release line pressure, and open the tank drain valve to remove accumulated condensate, protecting the tank from corrosion.
