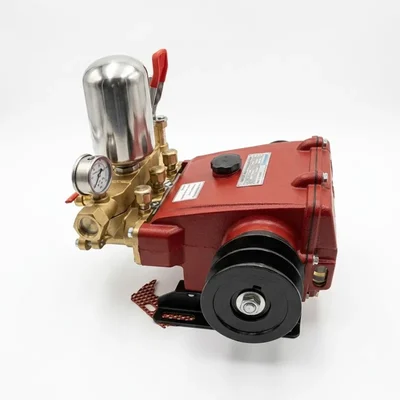

Hummer (CS-H75) HTP 75 Triplex Piston Power Sprayer Pump

With 4 Inch Pulley

For Commercial Agriculture and Car Washing

Country of origin: China

Brand: Generic (Imported)
Weight (Approx.) : 12 kg

Model : CS-H75
Piston Setup (Qty x Dia x Stroke) : 3 x 30 x 20
Operational Speed (RPM) : 800 – 1000 RPM
Suction Capacity (LPM) : 45 – 55 Liters Per Minute
Working Pressure Range : 15 - 35 kgf/cm²
Drive Pulley Size : 4 Inch
Dimensions : 39 x 30 x 34 cm

Maximize your spraying efficiency with the heavy-duty Hummer CS-H75 HTP 75 Power Sprayer Pump. Driven by a balanced 4-inch pulley system, this industrial-grade horizontal triplex piston pump delivers exceptional high-pressure performance designed specifically for large-scale agricultural operations, orchard management, and commercial washing. Featuring a robust 3 x 30 x 20 piston design, it safely operates within a smooth 800–1000 RPM range, producing a powerful suction capacity of 45–55 liters per minute (LPM). With an adjustable output pressure spanning 15–35 kgf/cm², it effortlessly handles tall tree crop spraying and stubborn dirt blasting. Encased in a highly compact footprint measuring just $39 \times 30 \times 34\text{ cm}$, it easily mounts onto tractor trailers, portable frames, or static wash stations for reliable, year-round field service.

Features

Optimized RPM Efficiency: Engineered to run smoothly at 800–1000 RPM, reducing mechanical wear and overheating.
Industrial Pressure Output: Generates up to 35 kgf/cm² of continuous pressure for long-distance vertical and horizontal reach.
Durable Pulley Integration: The integrated 4-inch belt-driven pulley ensures uniform torque allocation and high system reliability.
Rigid Cast Frame: Built with structural integrity to resist heavy field vibrations while keeping a highly transportable profile.

Applications

Orchard & Tall Tree Spraying: Provides the long vertical throw required to apply treatments to tall fruit trees and dense mango groves.
Commercial Vehicle Wash Stations: Delivers the aggressive 35 kgf/cm² water pressure needed to scrub down commercial trucks, tractors, and mud-covered farm equipment.
Field Crop Pest Control: Feeds multi-nozzle boom sprayers efficiently due to its high-volume 45–55 LPM fluid output.
Livestock Sanitization: Enables rapid, thorough washing and disinfection of large dairy barns, poultry farms, and concrete stables.
Industrial Pipeline Cleaning: Serves as a portable, high-pressure utility pump for clear-outs, storage tank rinsing, and site dust suppression.
