Brand: Generic ( Made in India )

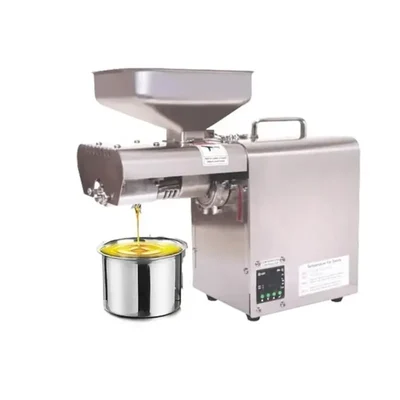

Premium 700W Mini Cold Oil Seeds Press/Expeller Machine, Stainless Steel Body, 3 to 4 Kg/hr Output With 1 Year Warranty
SKU: DK-SO-2052
₹20550 (Including GST)
Get extra ₹308 Discount (On Checkout)
Delivery By: May 5 - May 7
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

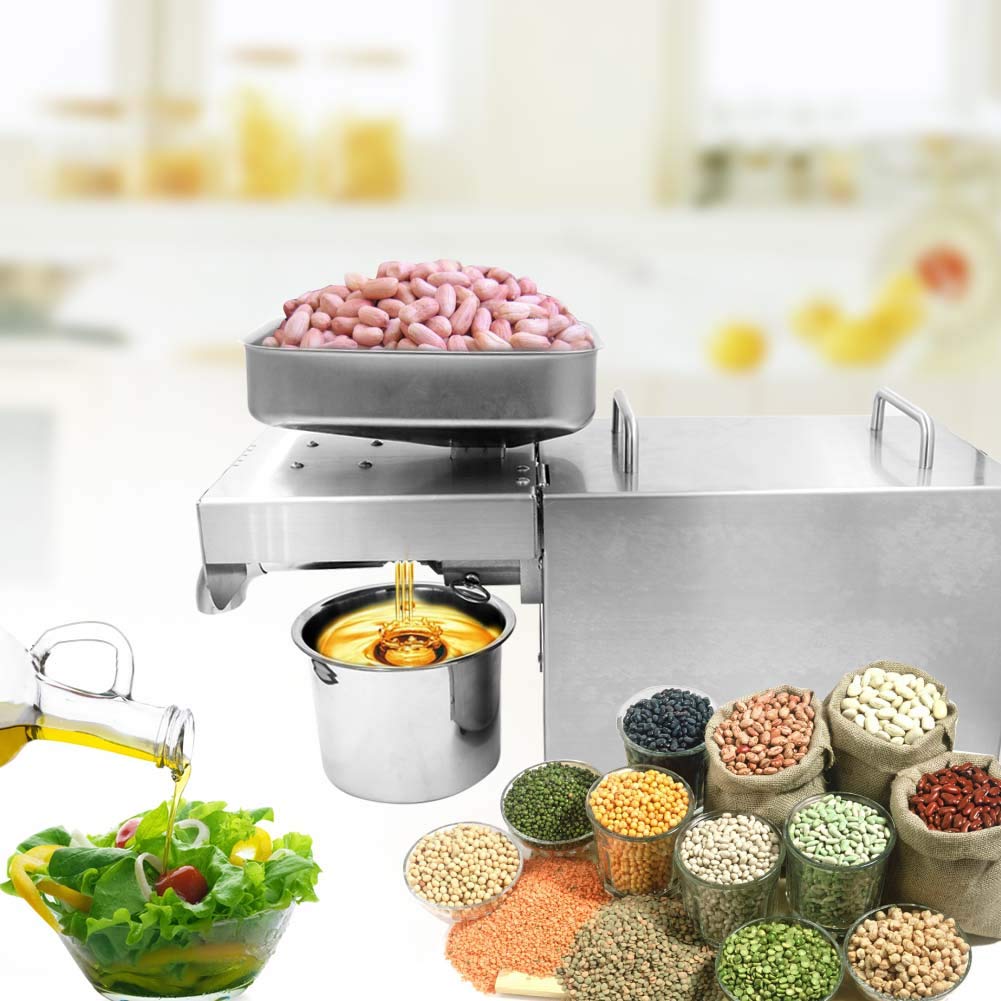

Premium Mini Cold Oil Seeds Press/Expeller Machine
3-4 kg/hr Capacity
Stainless Steel Body
Country of origin: India
Description
The Mini Cold Oil Press Machine is used for pressing peanuts, coconut, sesame, soybeans, walnuts, sunflower seeds, vegetable seeds, flax seeds, almonds, castor seeds, mustard seeds, etc. The machine is designed in a way to extract pure and fresh oil while keeping the comfort and convenience both in mind. The machines uses cold oil press technique for grinding oil seeds which means that the seeds are pressed at a slower speed which results in less heat generation and as a result of that it helps in retaining essential nutrients in the oil. This machine gives the freedom of extracting oil whenever in need and can continuously work for longer periods of time. The machine has a motor with the power rating of 700 watts and is built using stainless steel material which adds up to the overall durability and makes the machine food safe.
Features
:- Temperature Control : Equipped with temperature regulation systems to maintain optimal conditions during extraction, which helps preserve the quality and nutritional value of the oil.
- User-Friendly Operation : Designed with intuitive controls that allow operators to easily manage the extraction process without extensive training.
- High Oil Extraction Efficiency : The machine is capable of extracting oil from the material with high efficiency, resulting in minimal waste and maximum yield.
- Cost-Effectiveness : By producing oil at home, consumers can save money in the long term, as buying raw seeds is often less expensive than purchasing bottled oil.
Specification
:- Brand: Generic ( Made in India )
- Material : Stainless Steel
- Weight (Approx.) : 15 kg
- Motor Power : 0.5 HP
- Wattage : 700W
- Raw Material Capacity : 3 to 4 kg per hr
- Running Durations : 6-8 hr
- Voltage : 220V
- Frequency : 50 Hz
Output Details :
GroundNut : 3-4 Kg/hr. Raw Material Input, 35-43 % Yield, 1.5-2 Lit/hr. (Approx.)
Sesame : 3-4 Kg/hr. Raw Material Input, 40-45 % Yield, 1.5-2 Lit/hr. (Approx.)
Coconut : 3-4 Kg/hr. Raw Material Input, 58-63 % Yield, 1.5-2.5 Lit/hr. (Approx.)
Mustard : 3-4 Kg/hr. Raw Material Input, 25-35 % Yield, 1.5-2 Lit/hr. (Approx.)
Used to press and grind the following materials for oil :
- Peanuts
- Coconut
- Sesame
- Almond
- Sunflower Seeds
- Vegetable Seeds
- Flax seed
- Mustard Seed
Accessories
:- Oil Can
- Strainer
- Gloves
- Brush
Warranty Parts :
- Motor
- Heater
- Switch.
Note :
- Covered in Warranty : Manufacturing Defects
- Not Covered in Warranty : Physical Damage
- Suitable for extracting oil from edible seeds only.
Working :
- Can work continuously for up to 6-8 hours.
Usage
:Step 1: Preparation
- Choose Your Seeds or Nuts : Determine which type of oil you want to extract based on your cooking needs and preferences. Common choices include sunflower seeds, sesame seeds, canola seeds, or nuts like walnuts and almonds.
- Clean the Seeds/Nuts : Rinse them to remove any dirt or contaminants. Ensure they are completely dry before proceeding, as moisture can affect the oil extraction process.
- Preheat the Machine : Some oil press machines require preheating for optimal oil extraction. Check your user manual to see if this step is necessary.
Step 2: Setting Up the Machine
- Assemble the Machine : Ensure all parts of the oil press machine are correctly assembled. This usually includes attaching the oil collector and checking for proper alignment.
- Set the Temperature : Depending on the type of seeds or nuts you are using, you may need to adjust the temperature settings. Higher temperatures can increase extraction rates but may also affect the oil’s flavor and nutritional quality.
Step 3: Oil Extraction
- Add the Seeds/Nuts : Pour the prepared seeds or nuts into the hopper of the machine. Do not overload the machine, as this can impede the extraction process.
- Start the Machine : Turn on the oil press machine. It will automatically start the extraction process, squeezing the oil out of the seeds/nuts.
- Monitor the Process : Keep an eye on the machine as it operates. Most automatic machines will allow you to see the amount of oil being extracted and provide alerts for any issues.
Step 4: Collecting the Oil
- Stop the Machine : Once the oil extraction process is complete, turn off the machine. This usually happens when the seeds or nuts have been fully pressed.
- Collect the Oil : Carefully collect the freshly extracted oil from the container. It’s a good idea to use a funnel to avoid spills.
- Store the Oil : Transfer the oil into a clean, airtight glass or metal container. Store it in a cool, dark place to preserve its quality.
Step 5: Cleaning the Machine
- Disassemble the Parts : After the machine has cooled down, disassemble it according to the manufacturer’s instructions.
- Clean Thoroughly : Use warm, soapy water to clean the parts. Avoid using harsh chemicals that could linger and contaminate future batches of oil.
- Dry Completely : Ensure all parts are thoroughly dried before reassembling or storing the machine.
Maintenance :
- Periodic Deep Cleaning : In addition to regular cleaning, perform a deep clean every few months. This involves disassembling the entire unit and cleaning each component meticulously.
- Use Appropriate Lubricants : Choose food-grade lubricants to ensure safety during oil production.
- Screws and Fasteners : Ensure they are tight to prevent vibrations that can lead to mechanical failure.
- Heating Elements : Check for discoloration or damage, as these are indicators of overheating.
- Listen for Unusual Noises : Grinding or squealing sounds can indicate a problem that requires immediate attention.
- Check for Consistent Oil Quality : If you notice a significant change in oil quality or yield, it may be time for a deeper inspection or professional servicing.
Applications
:- Food Industry : The primary application of automatic oil press machines is in the food industry, where they are utilized to produce edible oils. These machines can extract oils from seeds such as sunflower, soybean, peanut, sesame, and rapeseed. The cold-press method employed by these machines helps retain the natural flavors, aromas, and nutritional values of the oils, making them ideal for cooking, salad dressings, and gourmet food products.
- Small-Scale Oil Production : Many small businesses and startups utilize automatic oil press machines for local or artisanal oil production. These setups allow entrepreneurs to create niche products tailored to specific markets or consumer preferences while ensuring high-quality output.
- Animal Feed : The by-products generated from oil extraction, such as oil cakes, are rich in protein and serve as valuable components in the formulation of animal feed.
