Brand: Generic ( Made in India )

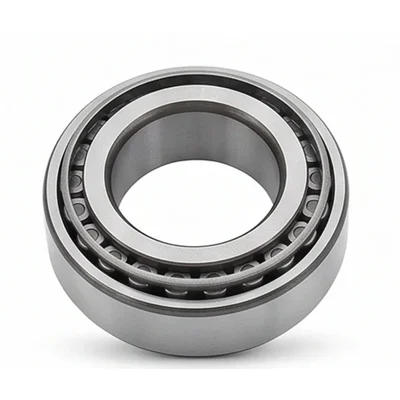

Premium Quality 32005 Tapered Roller Bearing High-Load Wheel Hub Axle Single Row Bearing
SKU: TI-PQ-74131
Estimated Delivery By: Jun 23 - Jun 25
MRP : ₹2376 ₹1980
17% OFF!
Estimated Delivery By: Jun 23 - Jun 25 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹1980 (Including GST)
MRP : ₹2376
17% OFF!
Get Extra ₹30 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Premium Quality 32005 is a single-row tapered roller bearing measuring 25x47x15mm, designed to accommodate high combined radial and single-direction axial loads. Its versatile, separable cup-and-cone design ensures low-friction performance and precise shaft rigidity, making it ideal for automotive hubs, industrial gearboxes, and agricultural machinery.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Model: 32005
- Bearing Type: Single Row Tapered Roller Bearing
- Bore Diameter (Inner d): 25 mm
- Outside Diameter (Outer D): 47 mm
- Total Width (Thickness T): 15 mm
- Inner Ring Width (B): 15 mm
- Outer Ring Width (C): 11.5 mm
- Basic Dynamic Load Rating (C): 33.2 kN
- Basic Static Load Rating (C0): 32.5 kN
- Limiting Speed: 14,000 r/min (with oil lubrication)
- Reference Speed: 12,000 r/min
- Cage Material: Pressed Sheet Steel
- Bore Type: Cylindrical
Description
This premium-quality 32005 single-row tapered roller bearing is engineered to deliver exceptional performance under demanding conditions. Designed with an optimized internal geometry featuring tapered inner and outer ring raceways alongside precision-crafted tapered rollers, it manages heavy combinations of radial and axial (thrust) loads simultaneously.
The bearing incorporates a smart, separable design where the cone assembly (comprising the inner ring, rollers, and cage) can be cleanly mounted independently from the cup (the outer ring).
Features
:- Combined Load Optimization: Accurately engineered to handle severe radial and single-direction axial forces at the same time.
- Separable Configuration: Independent cone and cup layout enables straightforward mounting, prompt maintenance, and effortless inspection.
- Minimized Friction & Heat: Refined roller profiles promote ideal lubrication film creation, cutting drag and running temperatures.
- High Operational Rigidity: Provides a stiff, rigid configuration when preloaded in opposition, ensuring pinpoint shaft alignment.
- Sturdy Cage Support: Includes a precision-pressed sheet steel cage that uniformly spaces out the rollers to eliminate stress concentrations.
Applications
:- Automotive Wheel Hubs: Widely integrated within vehicle front and rear axles, light-to-medium trucks, and trailer hubs.
- Agricultural Machinery: Highly used in tractor gearboxes, harvesters, cultivators, and heavy plow systems.
- Industrial Gearboxes: Deployed in bevel pinions, speed reducers, and power transmission shafts to balance thrust.
- Machine Tool Spindles: Built into lathes, heavy grinders, and milling machines requiring high rotational correctness.
- Construction Machinery: Found in mechanical concrete mixers, rollers, and material handling conveyors.
Usage
:- Opposed Mounting Setups: Must generally be paired against another single-row tapered roller bearing to handle axial forces from both directions.
- Controlled Preloading: Apply the appropriate physical preload during installation to establish strict rigid stability and limit excessive baseline shaft play.
- Lubrication Allocation: Thoroughly coat with dedicated high-pressure grease or high-grade oil systems before spinning up under operational loads.
- Clean Environment Press-Fitting: Always use mechanical press-sleeves targeting the specific ring being mounted to prevent transmission of mounting impact to the rollers.
Maintenance
:- Regular Lubrication Audits: Regularly evaluate the state of grease or oil for consistency, degradation, or metallic contamination.
- Temperature Monitoring: Monitor operational temperatures; sudden, unexpected spikes usually point to an over-tightened preload or oil starvation.
- Visual Cup & Cone Checks: During scheduled teardowns, inspect the raceway tracks for signs of micro-pitting, scoring, or uneven wear trails.
- Contaminant Sealing: Check adjacent external rubber oil seals regularly to guarantee dust, dirt, and moisture do not breach the rolling elements.
