Brand: Generic (Imported)

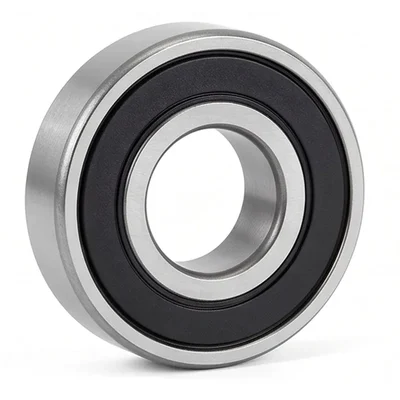

Premium Quality High-Speed Bearing 6202-2RS for E-rickshaw and E-vehicles (5 pc)
SKU: TI-PQ-74022
Estimated Delivery By: Jul 1 - Jul 3
MRP : ₹342 ₹285
17% OFF!
Estimated Delivery By: Jul 1 - Jul 3 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹285 (Including GST)
MRP : ₹342
17% OFF!
Get Extra ₹4 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
This high-grade 6202-2RS deep groove ball bearing features a 15mm bore and dual rubber seals optimized to isolate internal components from dirt and moisture. It is engineered to deliver smooth rotational stability and reliable load handling across electric motors, power tools, and two-wheeler assemblies.
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Model Number: 6202-2RS (Industry Standard Designation)
- Bearing Type: Deep Groove Ball Bearing (Product Category)
- Inner Diameter (Bore): 15 mm (Nominal Dimension)
- Outer Diameter: 35 mm (Nominal Dimension)
- Width (Thickness): 11 mm (Nominal Dimension)
- Enclosure Type: Double Rubber Sealed (2RS Synthetic Rubber Seals)
- Material: Chromium Steel (Standard Bearing Grade)
- Basic Dynamic Load Rating: Up to 9.55 kN (Dependent on Manufacturer Tolerances)
- Basic Static Load Rating: Up to 3.75 kN (Dependent on Manufacturer Tolerances)
- Limiting Speed: Up to 13,000 RPM (Grease Lubrication / Application Specific)
- Weight: 0.045 kg (Nominal Industry Mass)
Description
Engineered for reliable mechanical performance, this deep groove ball bearing offers a versatile solution for reducing rotational friction under balanced radial and axial loads. It features dual rubber seals optimized to retain vital lubrication while offering a defense against dust, moisture, and environmental contaminants. Designed with precise tolerances, it supports smooth operational efficiency and high-speed rotation in demanding day-to-day hardware applications.
Features
:- Dual Rubber Seals: Equipped with double-sided 2RS rubber barriers engineered to effectively retain internal grease while acting as an optimal defense against external dirt and moisture.
- High-Speed Tolerance: Advanced internal geometry allows for continuous, smooth rotation up to a nominal 13,000 RPM under optimal lubrication conditions.
- Robust Load Management: Designed with precisely matched deep grooves that accommodate both radial and light axial loads safely and efficiently.
- Premium Steel Composition: Fabricated from high-grade chromium steel alloy for enhanced resistance to deformation, wear, and structural fatigue over long-term operations.
- Pre-Lubricated Matrix: Comes factory-filled with high-grade performance grease to ensure immediate out-of-the-box installation and lower initial operational friction.
Applications
:- Electric Motors & Generators: Used to maintain internal rotor alignment and minimize rotational friction in single-phase and three-phase motors.
- Power Tools & Appliances: Integrated widely into household power drills, circular saws, washing machine drum assemblies, and utility pumps.
- Automotive & Two-Wheelers: Ideal for small-engine alternators, wheel hubs, starter motors, and drive assemblies across various two-wheeler applications.
- Industrial Fans & Ventilation: Utilized in high-velocity industrial fans, exhaust blowers, and air-handling equipment for smooth ventilation control.
Usage
:- Correct Shaft Alignment: Ensure that both the shaft housing and the seating bore are perfectly aligned to avoid off-center load distributions during mounting.
- Press-Fit Compliance: Use specialized mechanical press tools or specialized sleeves applied only to the ring experiencing the press fit to avoid denting the internal raceways.
- Load Constraint Verification: Ensure operational loads do not exceed the stated nominal static or dynamic load capacities during continuous running cycles.
- Operational Environment Security: Avoid using standard 2RS seals in environments that exceed the maximum thermal thresholds of the standard synthetic rubber components.
Maintenance
:- To preserve optimal performance, routinely monitor the operating temperature and noise output of the bearing assembly to catch early signs of misalignment or housing wear.
- Although factory-sealed for lifecycle retention under normal running environments, users should protect uninstalled units in a cool, moisture-free, and dust-protected storage space within their original packaging.
