Brand: UTL

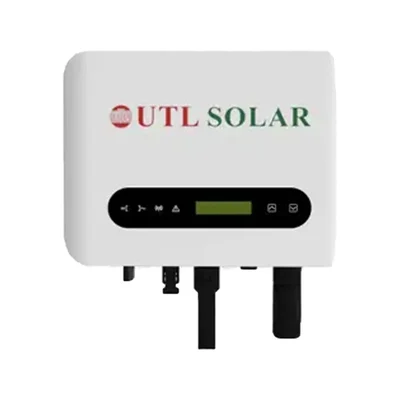

UTL GT-1.5-GXS1(Pro) - Grid Tie Single Phase 1.5KW Solar Inverter For Home, Office & Shop With 5 Years Warranty
SKU: TI-UG-55216
Delivery By: Jan 19 - Jan 21
MRP : ₹22000 ₹18750
15% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹18750 (Including GST)
MRP : ₹22000
15% OFF!
Get Extra ₹281 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL GT-1.5-GXS1(Pro) - Grid Tie Single Phase 1.5KW Solar Inverter (5 Years Warranty)
Designed For Home, Office & Shop
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 5 kg
Input Side :
- Max. DC Input Power (kW) : 2
- Max. DC Input Voltage (V) : 550
- Start-up DC Input Voltage (V) : 80
- MPPT Operating Range (V) : 70- 500
- Max. DC Input Current (A) : 13
- Max. Short Circuit Current (A) : 19.5
- No. of MPP Trackers : 1
- No. of Strings per MPP Tracker : 1
Output Side :
- Rated Output Power (kW) : 1.5
- Max. Active Power (kW) : 1.65
- Nominal Output Voltage/Range (V) : L/N/PE 220/230V
- Rated Grid Frequency (Hz) : 50 / 60 (Optional)
- Operating Phase : 1
- Rated AC Grid Output Current (A) : 6.8/6.5
- Max. AC Output Current (A) : 7.5/7.2
- Output Power Factor : 0.8 leading to 0.8 lagging
- Grid Current THD : <3%
- DC Injection Current (mA) : <0.5%
- Grid Frequency Range : 50/60Hz (±5)
Efficiency :
- Max. Efficiency : 97.3 %
- Euro Efficiency : 97.1 %
- MPPT Efficiency : >99 %
General Data :
- Size (WxHxD) : 280 x 272.5 x 184 mm
- Topology : Transformerless
- Internal Consumption : <1W (Night)
- Running Temperature : -25-65°C, 45°C derating
- Ingress Protection : IP65
- Noise Emission (Typical) : <35 dB
- Cooling Concept : Natural cooling
- Max. Operating Altitude Without Derating : 2000m
Description
The UTL 1.5KW GXS1 (Pro) is a transformer-less, on-grid solar inverter that offers a compact and lightweight solution for homes, offices, and shops. It features a wide MPPT operating range and a low startup voltage, ensuring that power generation begins early in the morning and continues until late evening. Built with IP65 protection, it is suitable for outdoor installation and is designed to withstand harsh environmental conditions while delivering up to 99% MPPT efficiency. It allows users to reduce electricity bills by exporting surplus solar power back to the government grid through net metering.
Features
:- High Efficiency : Boasts a maximum efficiency of 97.3% and MPPT efficiency of >99%.
- ow Startup Voltage : Starts generating power at just 80V, maximizing energy harvest.
- Superior Protection : Equipped with AC & DC Type-II 20kA Surge Protection Devices (SPD) to safeguard against lightning and voltage spikes.
- Remote Monitoring : Built-in Wi-Fi support allows you to track real-time power generation via the UTL Solar App.
- Durable Design : IP65-rated weatherproof casing and a natural cooling system for silent operation (<35 dB).
- Advanced Safety : Includes Anti-Islanding protection, DC reverse-polarity protection, and AC short-circuit protection.
- Grid Compatibility : Supports a wide AC voltage range (160V to 290V) to handle grid fluctuations effectively.
- Warranty : Comes with a 5-year warranty.
