Brand: Polycab

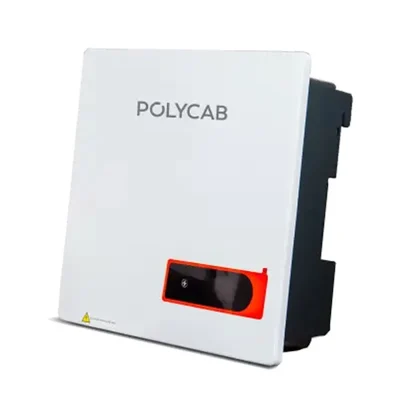

Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10kW Three Phase-1MPPT, For Residential & Commercial Use With 8 Years Warranty
SKU: TI-PP-62533
Delivery By: Feb 26 - Feb 28
MRP : ₹80600 ₹62000
23% OFF!
Delivery By: Feb 26 - Feb 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹62000 (Including GST)
MRP : ₹80600
23% OFF!
Get Extra ₹930 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Polycab PSIT-10K-SM1R2 Grid Tie Inverter
10kW Three Phase Inverter-1MPPT
For Residential & Commercial Use
With 8 Years Warranty
Country of origin: India
Specifications
- Brand: Polycab
- Weight (Approx.) : 17 kg
- Model : PSIT-10K SM1R2
- Rating : 10 kW
Input (PV) :
- Max. Input Voltage : 1100V
- Max. PV Configuration (STC) : 150%
- Rated / Nominal Input Voltage : 620V
- Max. Input Current : 20A
- Max. Short Circuit Current : 30A
- Start Input Voltage : 180V
- MPPT Operating Voltage Range : 160-1000V
- Full Power MPPT Voltage : 190V-500V
- Max. Number of PV Strings : 1
- No. of MPPTs : 1
Output (Grid) :
- Rated AC Active Power : 10,000W
- Max. AC Apparent Power : 11,200VA
- Max. AC Active Power (PF=1) : 11,200W
- Max. AC Output Current : 3*17A
- Rated AC Voltage : 380V/400V/415V, 3W+N+PE
- AC Voltage Range : 260V- 510V (Adjustable )
- Rated Grid Frequency : 50Hz/60Hz
- Grid Frequency Range : 45Hz-55Hz / 55Hz-65Hz (Adjustable)
- THDi : <3% (Rated Power)
- DC Current Injection : <0.5% (Rated Current)
- Power Factor : > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG)
Efficiency :
- Max. Efficiency : 97.8%
- Europe Efficiency : 97.1%
General :
- Topology : Transformer-less
- IP Rating : IP66
- Night Self Consumption : <1W
- Cooling : Natural Cooling
- Operating Temperature Range : -25°C to 60°C
- Relative Humidity Range : 0-100%
- Max. Operating Altitude : 4000m
- Noise(typical) : <30dB
- Dimensions (WxHxD) : 398 x 460 x 190 mm
- Warranty : 8 Years
Description
The Polycab PSIT-10K-SM1R2 is a premium 10kW Three-Phase Grid-Tie Inverter featuring a single MPPT (Maximum Power Point Tracking) channel. Built for durability and high efficiency, it is ideal for commercial and residential rooftops. It converts DC power from solar panels into clean AC power for the grid with minimal loss. Backed by an industry-leading 8-year warranty, it provides peace of mind and a faster return on investment for solar adopters. With its sleek design and robust 10kW output, it is engineered to maximize energy harvest while ensuring long-term stability.
Features
:- High Efficiency: Boasts a maximum efficiency of over 98%, ensuring minimal energy loss during conversion.
- Single MPPT Tracker: Optimized for installations where panels are oriented in a single direction, providing precise power tracking.
- Wide Input Voltage Range: Allows for flexible string sizing and starts generating power earlier in the morning.
- IP65 Protection: Fully protected against dust and water, making it suitable for harsh outdoor environments.
- Smart Monitoring: Supports RS485/WiFi/GPRS communication for real-time performance tracking via mobile or web apps.
- Natural Cooling: Designed with advanced heat dissipation technology to operate quietly without the need for external fans.
- Safety First: Includes integrated DC switch, overvoltage protection, and anti-islanding technology.
