Brand : Ralli Wolf

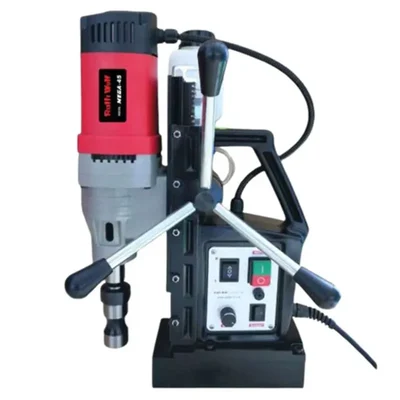

Ralli Wolf 45 mm 1380 Watt Magnetic Core Drill with Accessories (MEGA 45)
SKU : TI-RW-20518
MRP : ₹50000
₹41250
18% OFF!
-
1
+
8354 people have viewed this recently
Get Extra ₹619 OFF on Prepaid Orders
Delivery By: Sep 3 - Sep 5
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
45 mm 1380 Watt Magnetic Core Drill with Accessories
3 mm to 12 mm Max Tapping Dia
6 Months Warranty


Country of origin: India

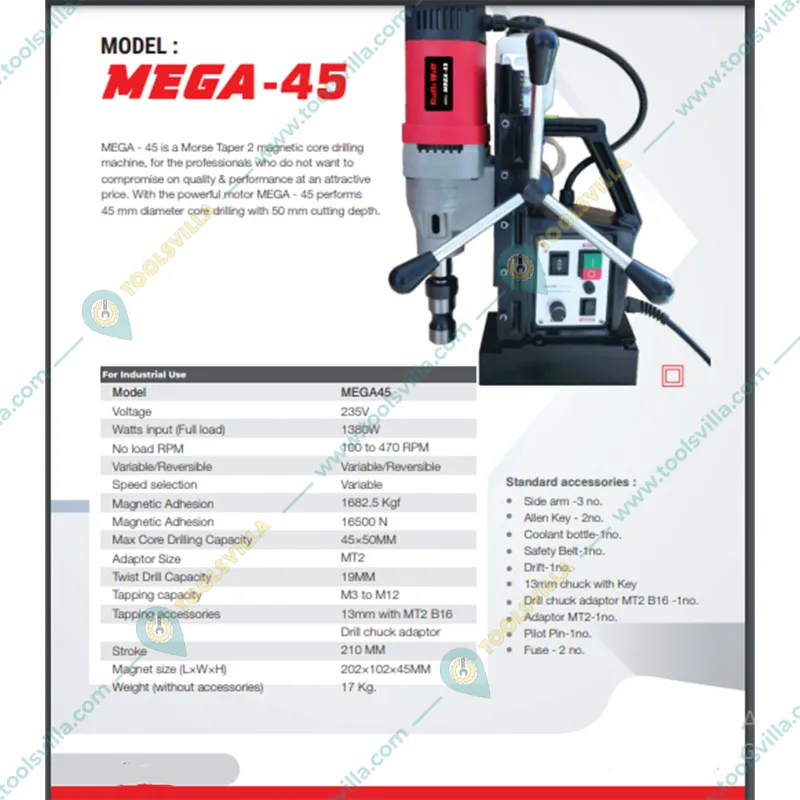

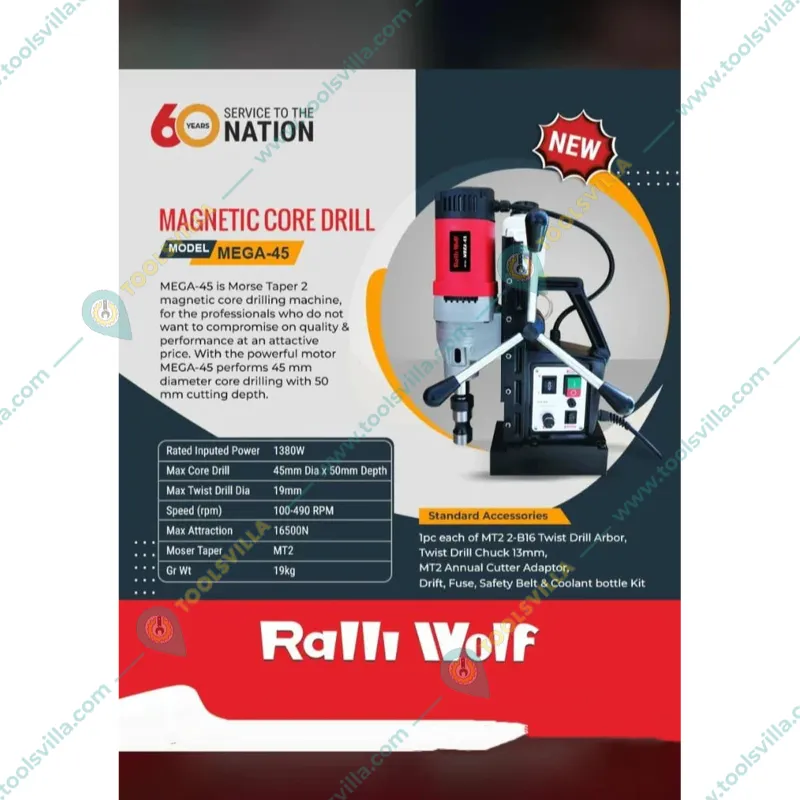

Specification
  • Brand: Ralli Wolf
  • Power : 1380 w
  • Weight (Approx.) : 19 kg
  • Drilling Capacity : 45 mm
  • Product Type : Magnetic Core Drill
  • Model No : MEGA 45
  • Brand : Ralli Wolf
  • Rated Voltage : 220V / 235V AC
  • Frequency : 50~60 Hz
  • Input Power : 1380 Watt
  • Max Core Drilling Capacity : Dia 45 x 50 deep
  • Max Drill with Twist Drill : 19 mm
  • Max Tapping Dia. : 3 mm to 12 mm Max
  • Speed - Variable : 100 – 470 rpm
  • Magnetic Adhesion : 16500 N
  • Magnet Base Size : 202 x 102 x 45 mm
  • Stroke : 210 rnm
Description
A magnetic core drill, a magnetic drilling machine or mag drill, is a specialized tool used primarily in metalworking and construction industries. It is designed to drill holes into metallic materials with precision and efficiency. The key feature of a magnetic core drill is its ability to secure itself to a metal workpiece using a strong magnet, which provides stability and allows for precise drilling in various positions. With the powerful motor MEGA – 45 performs 45 mm diameter core drilling with 50 mm cutting depth.

Features

 :
  • Precise, efficient, and convenient : the ideal solution for metal drilling.
  • Convenient, durable, highly efficient, and safe : a powerful motor for durable and efficient precise drilling, power supply cut-off system to prevent electric shock.
  • Ideal for tough metal core drilling : High magnetic force gives strong support to the drilling.

Accessories

 :
  • 3 Pcs Side Arms
  • 2 Pcs Allen Keys
  • 1 Pcs Coolant Bottle
  • 1 Pcs Safety Belt
  • 1 Pcs Drift
  • 1 Pcs 13 mm Chuck with Key
  • 1 Pcs Drill Chuck Adaptor MT2 B16
  • 1 Pcs Adaptor MT2
  • 1 Pcs Pilot Pin
  • 2 Pcs Fuse

Applications

 :
  • Drill Large, Precise Holes : Core drill holes up to 45mm diameter and 50mm deep on thick steel plates, structural beams, and metal frameworks for construction or fabrication.
  • Versatile Drilling Options : Capable of core drilling, twist drilling (up to 19mm diameter), and tapping (3–12mm diameter), so you can handle threading and various hole sizes efficiently.
  • Work On-Site or in Workshop : The strong electromagnetic base securely clamps onto steel surfaces, allowing drilling in any position — vertical, horizontal, or even overhead — with ultimate stability.
  • Flexible Speed Control : Adjust the motor speed to suit different materials and hole sizes for precise, smooth cutting.
  • Heavy-Duty Industrial Use : Perfect for bridge building, steel fabrication, structural steel installation, manufacturing, and maintenance tasks where accuracy and power are critical.
  • Portable & Stable : The compact design with a magnetic base enables fast setup and repositioning without bulky rigs or bench-mounted machines.
Note :
  • 6 Months Warranty
