Brand: Ralli Wolf

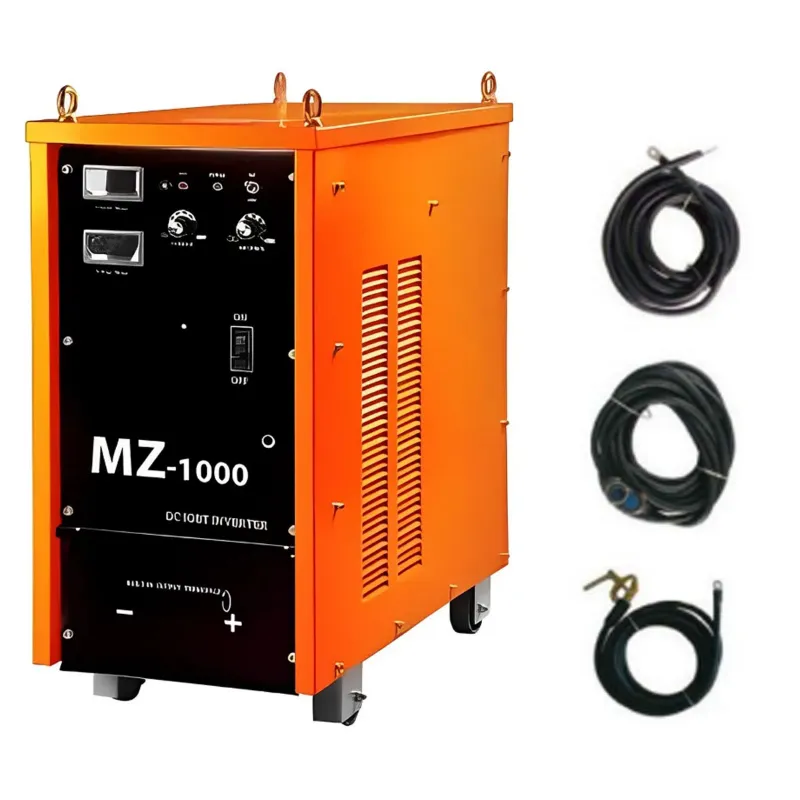

Ralli Wolf MZ 1000 Three Phase Submerged ARC Welding Machine, 1000 Amp (RS 100)
SKU: AB-RW-20233373
859 people have viewed this recently
Delivery By: Dec 21 - Dec 23
MRP : ₹720000 ₹390000
46% OFF!
859 people have viewed this recently Delivery By: Dec 21 - Dec 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹390000 (Including GST)
MRP : ₹720000
46% OFF!
Get Extra ₹5,850 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Ralli Wolf Submerged ARC Welding Machine
Three Phase Welding Machine
112 - 1000 Amp Output Current
Country of origin: India
Specifications
- Brand: Ralli Wolf
- Weight (Approx.) : 85 kg
- Output Current Range : 1000 amp
- Technology : Not Applicable
Description
Ralli Wolf MZ 1000 Three Phase Submerged ARC Welding Machine, 1000 Amp (RS 100)
Features :
- RALLIWOLF MZ1000 SAW welders are ruggedly built, high-performance machines that can take welding productivity & economy to new heights.
- The machine is widely used in welding heavy-duty structures like girders, I-beams, railway undercarriages, pressure vessels, etc.
- The multipurpose power source is suitable for SAW, MMA & Carbon Gouging applications.
- The Tractor and Welding Head comes with a Mechanical clutch for manual movement.
- Head swivel & tilting facility.
- Suitable horizontal and vertical slides.
- 4 roll drive wire feed motor for smooth and jerk-free wire feeding.
- Adequate capacity of flux hopper (10kgs) ensures uninterrupted long weld seams
- The state-of-the-art design of the control panel comes with Welding voltage, current & Tractor speed meters, Auto/ Manual Switch for the Tractor. Forward/ Reserve switch for Tractor. Stepless speed variation of Tractor. Stepless wire feed variation. Wire inch up / down switch for perfect wire positioning.
- Auto change over from creep speed to main speed.
Specifications :
- Model No. : RS 100
- Input Voltage (V) : AC 415 ± 15%
- Frequency (HZ) : 50 / 60
- Rated Input Current (A) : 77.1
- Power (KVA) : 55.5
- No-load Voltage (V) : 72
- Output Current Range (A) : 112 - 1000
- Rated Output Voltage (V) : 44
- Duty Cycle (%) : 60
- No-load Loss (W) : 300
- Efficiency (%) : 85
- Power Factor : 0.93
- Insulation Grade : F
- Housing Protection Grade : IP 21
- Arc Force Current Range (A) : 0 - 100
Standard Accessories :
- 1 x 2 seats earth clamp
- 1 x 14 core control cable
- 1 x 2 sets Aluminium Wire
Application:
- Shipbuilding: Because SAW creates strong, deep welds that can survive challenging maritime conditions, it is widely employed in the construction of big vessels.
- Manufacturing of Heavy Equipment: The method is perfect for creating parts of large machinery, where strong joints are necessary for structural stability.
- Pipeline Construction: SAW is frequently used in the production of pipes, especially ones that must be extremely strong and resilient to internal stresses.
- Pressure Vessels: The method works well for welding thick pressure vessel walls, guaranteeing dependability and safety in high-pressure settings.
- Structural steel fabrication: SAW is utilized in bridge and building framework construction, where reliable, robust welds are essential.
