Brand: GNAT

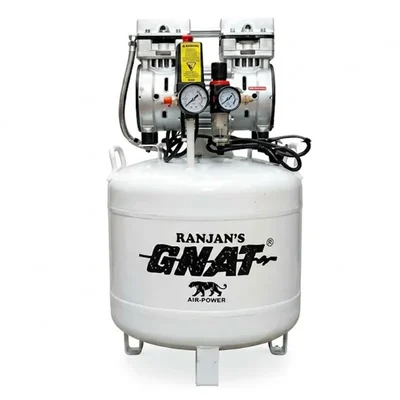

GNAT 1.5 HP Oil Free Vertical Tank Silent Air Compressor 45L for Dental, Medical and Lab Use
SKU: TI-G1-74766
Estimated Delivery By: Jul 2 - Jul 4
MRP : ₹26302 ₹20232
23% OFF!
Estimated Delivery By: Jul 2 - Jul 4 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹20232 (Including GST)
MRP : ₹26302
23% OFF!
Get Extra ₹303 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Ranjan's GNAT 1.5 HP Oil Free Air Compressor features a compact 45-liter vertical tank and delivers a noise-controlled 65 dBA operation with a robust 8 Bar max pressure.
Country of origin: India
Specifications
- Brand: GNAT
- Max. Pressure : 8 bar
- Weight (Approx.) : 40 kg
- Tank Capacity : 45 liters
- Motor Power: 1.5 HP (1.1 kW)
- Air Compressor HP: 1.5 HP
- Air Displacement (LPM): 81 LPM
- Displacement (CFM): 3.2 CFM
- Displacement CFM (FAD): 2.9 CF
- Tank Orientation: Vertical
- Sound Level: 65 dBA
- Cooling System: Air Cooled
Description
The GNAT 1.5 HP Oil Free Vertical Tank Air Compressor is a premium, high-efficiency pneumatic solution meticulously designed for environments that require absolutely clean and contaminant-free air. Featuring a space-saving vertical 45-liter pressure vessel, this ultra-quiet 65 dBA compressor eliminates the risk of oil mist pollution, making it perfectly suited for highly sensitive applications. Powered by a robust 1.5 HP electric motor operating on an air-displacement mechanism, it balances rapid pressure replenishment with a small physical footprint.
Features
:- Oil-Free Pump Mechanism: Guarantees 100% pure, oil-mist-free air discharge, fully protecting downstream equipment and delicate processes from contamination.
- Compact Vertical Design: The space-saving vertical tank configuration reduces floor footprint, allowing easy installation in cramped workshops, clinics, or laboratories.
- Ultra-Quiet Operation: Runs smoothly at just 65 dBA, ensuring a comfortable working environment with significantly lower acoustic fatigue.
- Dual Air Displacement Output: Provides a high flow displacement rate of 81 LPM (3.2 CFM) and a Free Air Delivery (FAD) rate of 2.9 CFM for consistent pneumatic performance.
- Dual Pressure Gauge System: Features integrated control and tank pressure indicators for precise air delivery regulation.
Applications
:- Dental Clinics: Ideal for supplying pure, moisture-regulated, and oil-free compressed air to dental chairs and air-driven handpieces.
- Medical & Laboratories: Powers critical diagnostic equipment, clean rooms, and analysis apparatus requiring sterile air streams.
- Food & Beverage Packaging: Suitable for pneumatic automation systems where direct or indirect air contact with food products occurs.
- Precision Spray Painting: Delivers clean, oil-free airflow for fine artistry, automotive touch-ups, and commercial airbrushing without ruining finishes.
- Electronics Manufacturing: Perfect for dust removal and powering pneumatic tools during delicate PCB assembly.
Usage
:- Position the compressor on a stable, level surface away from direct moisture, heat sources, and excessive dust.
- Plug the power cord into a standard grounded single-phase AC outlet and pull the red pressure switch knob upward to turn the machine ON.
- Allow the tank to fill automatically until it cuts off at its peak maximum factory pressure of 8 Bar.
- Adjust the outlet pressure regulator dial to match the specific operating requirements of your pneumatic tools or dental units.
- Press the pressure switch down to turn the machine OFF when the day’s work is complete.
Maintenance
:- Daily Condensation Drainage: Open the drain valve located underneath the vertical tank at the end of each working day to expel moisture and prevent rust.
- Air Filter Inspections: Regularly inspect the intake air filters weekly; clean out accumulated dust using a low-pressure air blow or replace the filter elements if clogged.
- Safety Valve Testing: Periodically pull the ring on the safety pop-off valve while the tank is pressurized to ensure it triggers smoothly.
- Structure Check: Visually check structural bolts, pneumatic fittings, and electric lines for loose joints or leaks caused by operational vibration.
