Brand: UJALA

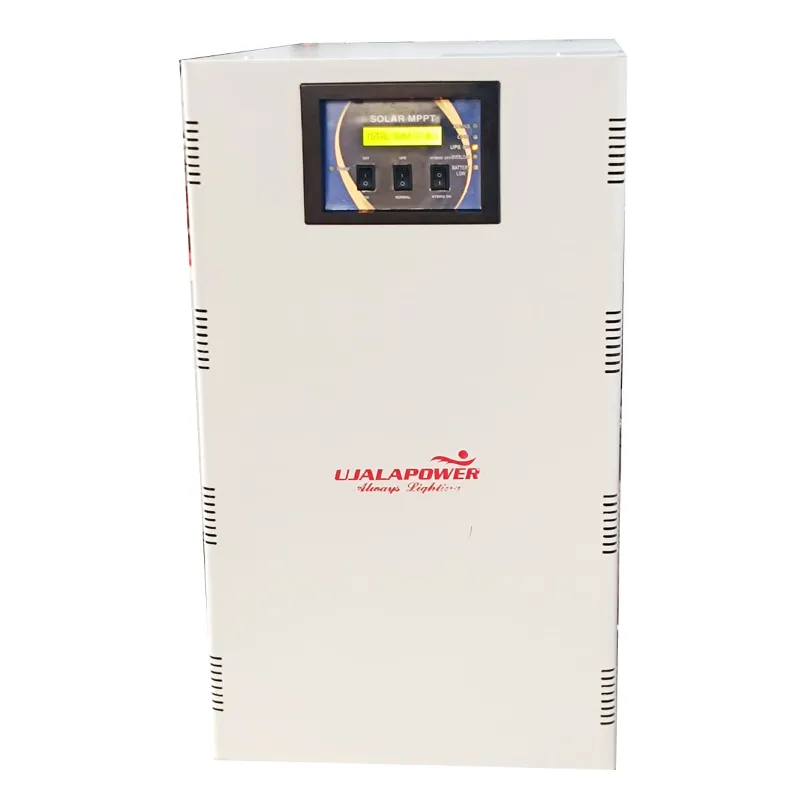

Ujala Hybrid Solar 10000VA 120V Sine Wave MPPT Compact Inverter With 2 Year Warranty Designed for Residential Use
SKU: TB-HY-33501
₹94000 (Including GST)
MRP : ₹139855
Get extra ₹1,410 Discount (On Checkout)
Delivery By: May 7 - May 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Home UPS
Residential use
Residential use
Warranty : 2 Year on Manufacturing Defect
Country of origin: India
Description
Hybrid Solar 10000VA 120V Sine Wave MPPT inverter is ideal for small households needing reliable backup for essential appliances during power outages. It is portable and user-friendly, but it does not support solar power compatibility.
This inverter is a cost-effective solution for basic residential power needs, combining safety features and efficient performance.
This inverter is a cost-effective solution for basic residential power needs, combining safety features and efficient performance.
Features
:- Battery Support: Compatible with various battery types, such as SMF (Sealed Maintenance-Free), Gel, and Tubular batteries.
- Waveform: Pure sine wave output ensures safe and stable power for sensitive electronic devices.
- Priority Selection: Allows users to set priorities for power sources (e.g., solar, battery, grid) to optimize energy usage and cost savings.
- Display: Often features an LCD display for monitoring system status and performance.
Specification
:- Brand: UJALA
- Weight (Approx.) : 70 kg
- Display Type : LCD
- Capacity : 10000VA
- Voltage : 120V
- Pv Controller Technology : MPPT
- Display Indicators : LCD/LED
- No. of Output Phase : Single Phase
- Dimensions (L X W X H) : 750 X 655 X 410 mm
Wire Connection Formation
- Battery Connection (From right to left) : Red Wire Batt + / Black Wire Battery-
- Input (From right to left) : Line/Neutral/Earth
- Solar (From right to left) : PV + / PV-
- Output (From right to left) : Output Line/ Neutral/Earth
- MCB'S : The MCB available for Mains Input/Battery/Solar
Solar Controller
- Solar Charger Type : MPPT
- Solar Panel VOC Max : 350v
- Max Solar Input Current : 50A
- Max Solar Input Power (KW) : 8KW
- Compatible Solar Panels : 15
- Peak Charge Controller Efficiency : 0.98
Charging Mode
- Maximum Charging Current : 12AMP+/-2AMP
- Boost Charging Voltage : 142V+/-2V
- Trickle Charging Voltage : 135V+/-2V
- Input Voltage Range UPS Mode : 100V ~ 250V
- Input Voltage Range Inverter Mode : 175V ~ 270V
Backup Mode
- Output Voltage at No Load (V) : 230V+/-2%
- Output Frequency (Hz) : 0.50012
- Output Wave Form : Sine Wave
- Battery Low Cutt Off : 104V
- Overload : 68AMP+/-2AMP
- Running Load : 66AMP+/-2AMP
- Overload Retry Inverter Mode : 3Times
Protections
- Low Battery Voltage : Yes
- Battery Overcharge : Yes
- Overload : Yes
- Over Temperature : Yes
- Shot Circuit : Yes
