Brand: UJALA

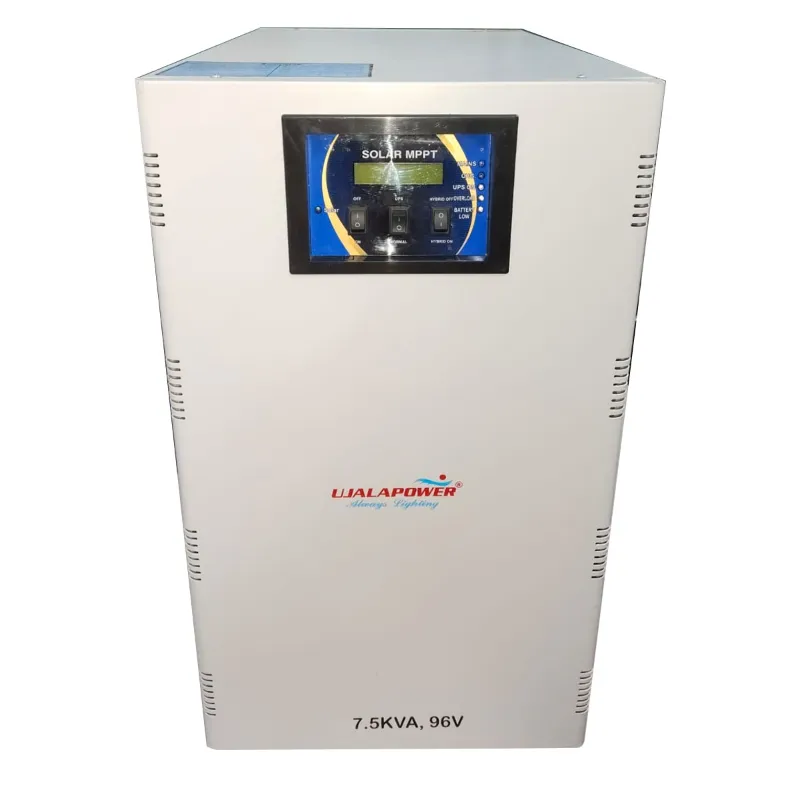

Ujala Hybrid Solar 7500VA 96V Sine Wave MPPT Inverter Compact Inverter With 2 Year Warranty Designed for Residential Use
SKU: TB-HY-33500
₹85000 (Including GST)
MRP : ₹120018
Get extra ₹1,275 Discount (On Checkout)
Delivery By: May 7 - May 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Home UPS
Residential use
Residential use
Warranty of 2 Year on Manufacturing Defect
Country of origin: India
Description
Hybrid Solar 7500,96V Sine Wave MPPT Inverter is ideal for small households needing reliable backup for essential appliances during power outages. It is portable and user-friendly, but it does not support solar power compatibility.
This inverter is a cost-effective solution for basic residential power needs, combining safety features and efficient performance.
This inverter is a cost-effective solution for basic residential power needs, combining safety features and efficient performance.
Features
:- Battery Support: Compatible with various battery types, such as SMF (Sealed Maintenance-Free), Gel, and Tubular batteries.
- Waveform: Pure sine wave output ensures safe and stable power for sensitive electronic devices.
- Priority Selection: Allows users to set priorities for power sources (e.g., solar, battery, grid) to optimize energy usage and cost savings.
- Display: Often features an LCD display for monitoring system status and performance.
Specification
:- Brand: UJALA
- Weight (Approx.) : 50 kg
- Display Type : LCD
- Capacity : 7500VA
- Battery Nominal Voltage : 96V
- No. of Output Phase : Single
- Pv Controller Technology : MPPT
- Display Indicators : LCD & LED (Both)
- Dimensions (LXWXH) : 750 X 655 X410 mm
Backup Mode
- Output Voltage at No Load : 230V+/-10V
- Output Frequency : 50.0±0.5Hz
- Output Wave Form : Sine Wave
- Battery Low Cut-Off : 83.2V
- Overload : 66AMP+/-2AMP
- Running Load : 62AMP+/-2AMP
Charging Mode
- Maximum Charging Current : 12AMP +/-2AMP
- Boost Charging Voltage : 114V +/-2V
- Trickle Charging Voltage : 108+/-2V
- Input Voltage Range UPS Mode : 100V~290V
- Input Voltage Range Inverter Mode : 175V270V
Solar Controller
- Solar Charger Type : MPPT
- Solar Panel VOC Max : 350
- Max Solar Input Current (A) : 60A
- Max Solar Input Power (W) : 7500 w
- Peak Charge Controller Efficiency : 0.58
Protections
- Low Battery Voltage : Yes
- Battery Overcharge : Yes
- Overload : Yes
- Over Temperature : Yes
- Shot Circuit : Yes
Battery Connection
- Input (From right to left) : Red Wire Batt+/Black Wire Battery-Line/Nutral/Earth
- Solar (From right to left] : PV+/PV-
- Output (From right to left) : Output Line/ Nutral/Earth
- MCB : The MCB available for Mains Input/Battery/Solar
