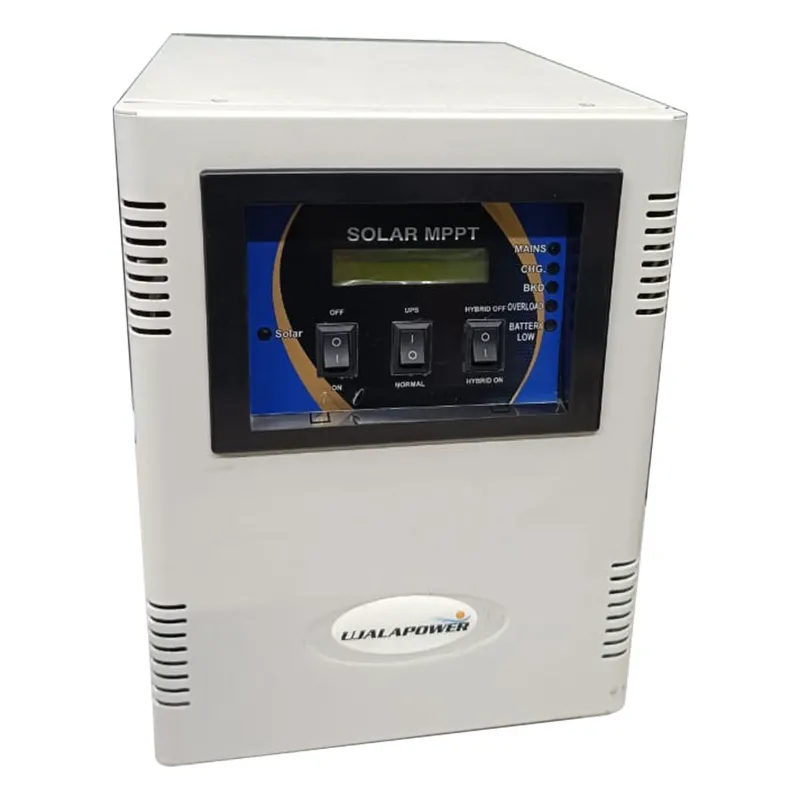

Ujala Hybrid Solar PCU 2.5KVA ,24V PWM compact inverter designed for residential use

Brand : UJALA

Ujala Hybrid Solar PCU 2.5KVA ,24V Sine Wave PWM Compact Inverter With 2 Year Warranty Designed for Residential Use

SKU : TB-HY-33495

MRP : ₹17463

₹12750

27% OFF!

811 people have viewed this recently

Get Extra ₹191 OFF on Prepaid Orders

Delivery By: Jun 24 - Jun 26

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

PWM
Residential use

Warranty : 2 Year on Manufacturing Defect

Country of origin: India

Specification

Brand: UJALA
Weight (Approx.) : 20 kg

Display Type : LCD
Capacity : 2500VA
Operation DC Voltage : 24
Switching Element : Mosfet
Charger Topology : Boost Mosfet

Grid Stable Range

Nominal Grid Voltage : 230V
Battery Low Buzzer : 21.2V+0.2V
Battery Low Cut : 21.2V +0.2V
Battery High Cut : 28.4V-0.2V
SPV Charging Current : Depends upon panel capacity
SPV Charging Voltage Boost : 29V+-02V
SPV Charging Voltage Float : 28.4+-0.2V
Grid-Battery Charging Voltage Boost : 28.4+-0.2V
Grid-Battery Charging Voltage Floot : 13.9V+-0.2V
Grid-Battery Charging Current : 12AMP-2AMP
Grid Reconnect @ Battery Voltage : 11.6V
Grid Low Cut Voltage : 170V-10V
Grid Low Cut Recovery : 180+-10V
Grid Hight cut Voltage : 255V+-1OV
Grid High Cut Recovery : 255v+-10v
Change Over (Battery to Mains) : <5ms
Change Over (Mains to Battery) : Mode Enabled/ Disabled : <10ms/<60ms
Operating Mode : POU/Hybrid

Inverter

Output Phase : 1 Phase, 3 Wire
Nominal Output Voltage : 220-10V
Nominal Frequency : 50-1%
Load Powers Factor : 0.8
Output waveform : Sinewave
Typical Waveform : >80%
Voltage Harmonic : <3% (Line Load)
Overload Capacity (IT Load Enable)% : 100-110:10 Min 150-200:2 sec
Overload Capacity (IT Load Disable) % : 100-120(3times auto reset ): 60sec 250-350:1sec
Protection : Overload, Battery Low, Battery High, Output Short Circuit, battery Reverse, Over Heat, SPV high
Display (LCD) : Battery Voltage, Grid Voltage, Grid Frequency, Load %, Battery Graph, Overheat, SPV Current

Solar

Switching Element : Mosfet
Controller : Yes
Type of Charger : PWM
Efficiency : >90%
Input Voltage Range (Min-Max) Voc : 15-45V
Maximum PV Power Recommended : 1600 WATT

Environment

Cooling : Fan
Max. Relative Humidity @ 25°C (Non Condensing) : 90%

Description

Hybrid Solar PCU 2.5KVA ,24V Sine Wave PWM Inverter is ideal for small households needing reliable backup for essential appliances during power outages. It is portable and user-friendly, but it does not support solar power compatibility.
This inverter is a cost-effective solution for basic residential power needs, combining safety features and efficient performance.

Features

Battery Support: Compatible with various battery types, such as SMF (Sealed Maintenance-Free), Gel, and Tubular batteries.
Waveform: Pure sine wave output ensures safe and stable power for sensitive electronic devices.
Priority Selection: Allows users to set priorities for power sources (e.g., solar, battery, grid) to optimize energy usage and cost savings.
Display: Often features an LCD display for monitoring system status and performance.
