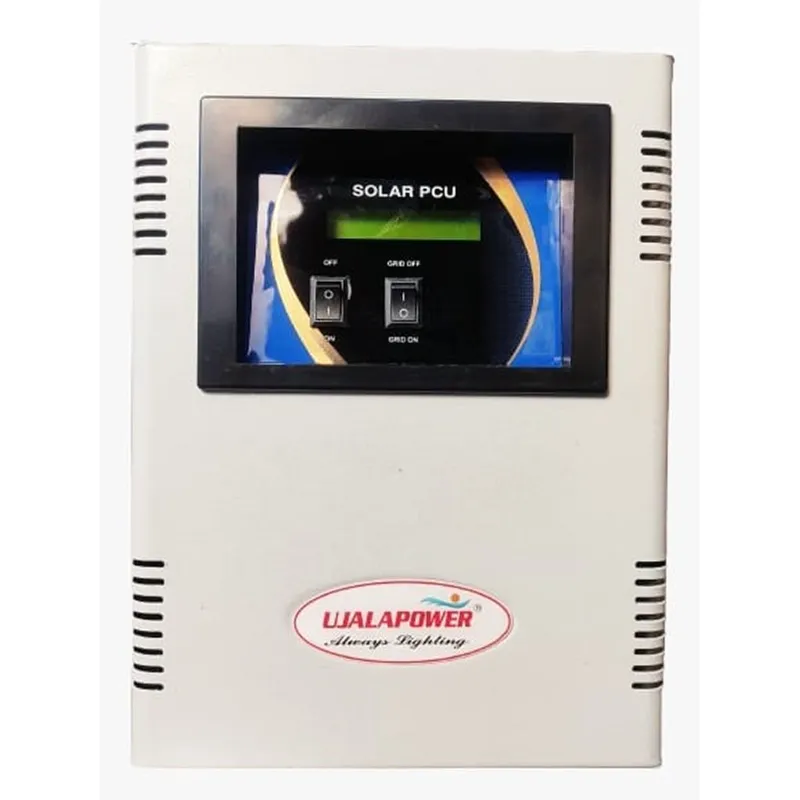

Ujala Hybrid Solar 2500VA 24V Sine Wave MPPT Compact Inverter With 2 Year Warranty Designed for Residential Use

Brand : UJALA

SKU : TB-HY-33497

MRP : ₹25649

₹17950

30% OFF!

Get Extra ₹269 OFF on Prepaid Orders

Delivery By: Jun 24 - Jun 26

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

MPPT
Residential use

Warranty : 2 Year on Manufacturing Defect

Country of origin: India

Specification

Brand: UJALA
Weight (Approx.) : 20 kg

Display Type : LCD
Capacity : 2500VA
Voltage : 24V
SPV Open Circuit Voltage Range (Min-Max) :36-90 v
Max SPV Power : 2.5 KW
Compatible SPV Panels : 36/60/72 Cell

MPPT BASED CHARGE CONTROLLER

Switching Element : IGBT Module
Controller : DSP
Efficiency : >95%
Battery Charging Stages : 5 (Softstart, Boost, Absorption, Float, Equalize)

BATTERY

Low Cut Off Volts : 10.5/Battery +/-2%
Low Cut off Recovery Volts : 11.5/Battery +/-2%
Low Buzzer Volts : 10.7/Battery+/-2%
High Cut Off Volts : 15.5/Battery +/-2%
High Cut off Recovery Volts : 15.0/Battery +/-2%
Boost Charging Volt by SPV (TUB) Volts : 14.5/Battery +/-2%
Boost Charging Volt by Grid (TUB) Amps : 14.0/Battery +/-2%
Charging Current by Grid % : 10A +/-2%
No Load Battery Current : 0.02

OUTPUT

Output No Load (V) : 230 +/-2%
Output Frequency (Hz) : 50 +/-2c

Overload

Amp : 8.7A
Watts : 2kW
Output Low Retry : 1 Time
Output Short Circuit : 1 Time

GRID

No of Phase : 1 Phase-3Wire PN.E.
Voltage Range (Inverter Mode) V : 100-280 +/-2%
Voltage Range (UPS Mode) V : 175-255 +/-2%
Frequency Range Hz : 45-55 +/-2%

DISPLAY

Alphanumeric : 16x2 LCD
Output (Inverter) : Voltage, Current, Power & Frequency
Input (Grid) : Voltage and Frequency
Battery : Voltage, Current
Status/Faults : Inverter Status, Mains Status, Charger Status, Solar Status & Battery Status

INVERTER

Switching Element : MOSFET
Output Voltage : 230 +/-2%
Phase :1 Phase-3Wire P.N.E
Output Waveform : Digitally Filtered Pure Sine Wave
Frequency : 50+/-2 Hz
Changeover (Mains to Inverter) : <10ms
Output Power Factor : 0.8 Pf
Overload Retry : 3 Times
Switches : System ON/OFF, Mode Selection Hybrid/PCU/Smart INV/UPS Selection
Indications (LED) : Inverter On, Mains in Range, Battery Low/High, Charger On, Overload Faults
Alarm (Audible) : Battery Low, Overload, Charger On, Inverter On, Solar Charger On
Protection : Overload, Short Circuit Protection, Over Voltage, SPV Surge & Transient protection (MOV Varistors) Reverse Polarity of Battery, Over temperature protection, Under Voltage & Over Voltage Protection
Cooling : Forced Air Cooling (Temp Controlled
Communication : Remote Monitoring System (Over GPRS/BLE & WiFi) or R5232
Operating Temp : 0-50 C
Operating Humidity : 95 %
Protection Class : IP20
Dimension (L x W x H) : 510 x 460 x 305 mm

Description

Hybrid Solar 2500VA 24V Sine Wave MPPT is ideal for small households needing reliable backup for essential appliances during power outages. It is portable and user-friendly, but it does not support solar power compatibility.
This inverter is a cost-effective solution for basic residential power needs, combining safety features and efficient performance.

Features

Battery Support: Compatible with various battery types, such as SMF (Sealed Maintenance-Free), Gel, and Tubular batteries.
Waveform: Pure sine wave output ensures safe and stable power for sensitive electronic devices.
Priority Selection: Allows users to set priorities for power sources (e.g., solar, battery, grid) to optimize energy usage and cost savings.
Display: Often features an LCD display for monitoring system status and performance.
