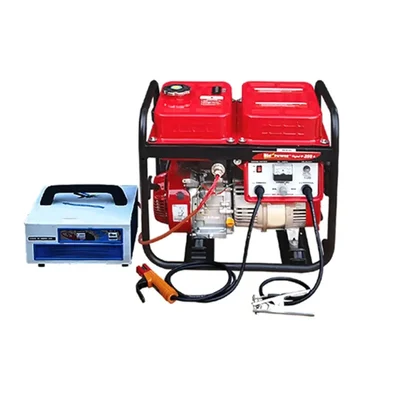

HPM 225 Amps Digital Petrol DC Welding Generator Machine, Welds upto 4mm Electrode

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

World’s Most Portable, Professional & Low Cost Arc Welding

Machine Suitable for Welding Rods 7018 Size 4mm Electrode

Inbuilt 2 KVA Inverter for 230 Volt, AC Output

Description

HPM 225 Amps Digital Petrol DC Welding Generator Machine, Welds upto 4mm Electrode

Descriptions :

• HPM Portable, Professional & Low Cost Arc Welding Machine Suitable for High Class Welding Including Structural Welding Rods 7018 Size 4mm Electrode. Sheet Metal Welding Attachment (Helps to adjust low current upto 50Amps.)

Features :

• World’s Most Portable, Professional & Low Cost Arc Welding
• Machine Suitable for High Class Welding Including Structural
• A.C. Circuit Protector (NFB)

• A C. Pilot Lamp

• Engine Oil Protection

• Fuel Level Gauge

• A.C. Output Sockets

• Costar Wheels & Handles

Specification :

• Model No. : Digital-W250AC
• Product Type: Welder Generator
• Brand: HPM
• Starting Type : Recoil Starter
• Fuel Used : Petrol
• Dimension (LxWxH) : 670 x 510 x 670 mm
• Weight : 73 Kg (Approx)

DC Welding :

• Maximum Output (Duty Cycle 60%) : 200 Amps
• Working Voltage : 20v to 32v

• Current Regulation Amps : *50-225

• Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge

• Maximum Electrode diameter : 2.6 mm to 4.0 mm (E 7018)


AC Generator :

• Alternator Type : Multiphase, Brush less with Rear Earth Magnet Rotor
• Maximum Power (VA) : 2000 VA
• Rated Power (VA) : 1800 VA
• Rated Current : 7.5 Amps

• NFB Amps : 7.5 Amps

• AC. Output Voltage : 220 Volts ± 8% Volts, Single Phase – 50 Hz

• Class of Insulation : F


Engine :

• Model : HM170FB
• Type : Single Cylinder Air-cooled; 4-stroke, OHV 25 ̊ Inclined

• Maximum Power : 7.5 HP

• Bore x Stroke : 70x58
• Displacement : 223 cc

• Starting System : Recoil Start

• Ignition System : TCI (Transistor Control Ignition)

• Fuel : Standard Petrol

• Fuel Tank Capacity : 15.5 Liters

• Fuel Consumption Ltr/Hr : 1.1 Ltr/hr

• Continuous Operating Hour : 15 hr

• Lube. Oil Capacity : 600 ml

• Lubricating Oil Consumption : 2.5 gm/Hr

Accessories :

• AC Plug
• Tool Kit

• Welder Holder

• Earthing Clamp with 3 Mtr Cable

• Oil Funnel

• Owner’s Manual

Note :

• Do not use the welder for work other than welding.
• Do not touch the live part.
• Do not solder in places where skimming, cleaning and spraying are required.
• When using, please wear a protective cover or protective clothing.
