Reliant Lab Resistance Box Plug Type 0.1-1000 Ω & 1-10000 Ω for Verification of Network Theorems

Brand: Reliant Lab

Reliant Lab Resistance Box Plug Type 0.1-1000 Ω & 1-10000 Ω for Verification of Network Theorems

Name: Reliant Lab Resistance Box Plug Type 0.1-1000 Ω & 1-10000 Ω for Verification of Network Theorems
Brand: Reliant Lab
SKU: TB-RE-68278
Price: 2799 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TB-RE-68278

MRP : ₹3899 ₹2799

28% OFF!

Get Extra ₹42 OFF on Prepaid Orders

Estimated Delivery By: Apr 16 - Apr 18

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹2799 (Including GST)

MRP : ₹3899

28% OFF!

Get Extra ₹42 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Reliant Lab Resistance Box Plug Type 0.1-1000 Ω & 1-10000 Ω

For Verification of Network Theorems

Country of origin: India

Brand: Reliant Lab

Block Material : Brass
Block Shape : Rectangular

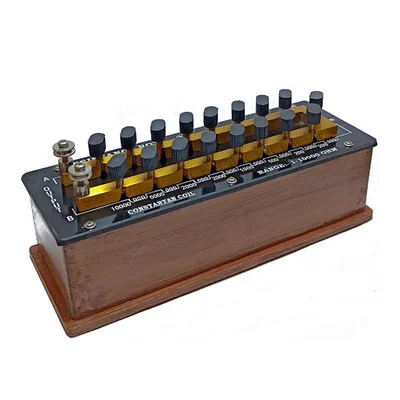

The Reliant Lab Resistance Box (Plug Type) is a high-precision, heavy duty electrical standard designed for advanced laboratory research and industrial calibration. The instrument operates on the classic "Short-Circuit" principle: tapered brass plugs are inserted into CNC machined sockets between thick brass blocks. When a plug is seated, the current bypasses the resistor; when removed, the current is forced through a precision wound Manganin or Constantan coil housed beneath the ebonite plate. Enclosed in a seasoned teak wood case, these boxes offer exceptional stability and accuracy for high-sensitivity bridge circuits and sensitive electrical measurements.

Features

Non Inductive Winding: Coils are wound using a double back non inductive technique to cancel out self-inductance, ensuring high accuracy for both DC and low frequency AC applications.
Superior Ebonite Insulation: The 15mm thick high grade ebonite top plate provides excellent surface resistivity, preventing current leakage and maintaining high measurement precision in varying humidity.
CNC Machined Brass Interface: Features heavy, high conductivity brass blocks that provide a robust electrical path and minimize contact resistance at the plug and socket interface.
