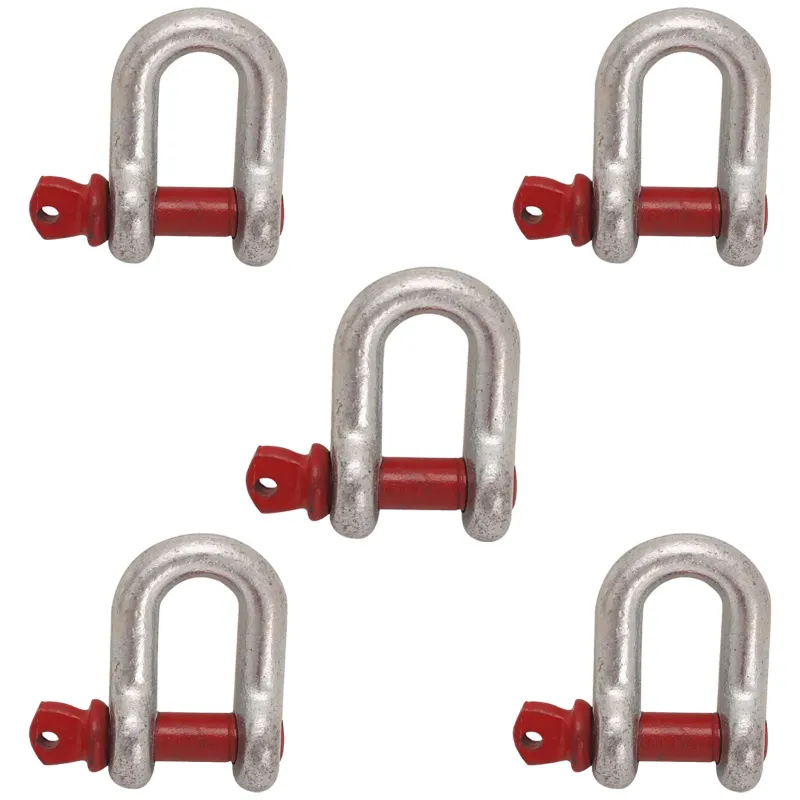

A Screw Pin D-Shackle is a type of shackle used in various applications, particularly in the field of construction, transportation, and industrial settings. It is characterized by its D-shaped design, which allows for easy attachment to various objects and materials using ropes, chains, or other connectors. The screw pin mechanism is an essential feature of this shackle, providing enhanced security and durability.
Features
:- Galvanized Shackle
- Drop Forged
Specification
:- Product Type: Shackle
- Brand: Generic (Imported)
- Weight (Approx.) : 0.5 kg
- Load Capacity : 3.25 ton
- Product Type : D-Shackles
- Brand : Generic (Imported)
- Capacity : 3.25 Ton (3250 kg)
- Size : 5/8 inch (15.9 mm)
- Pin Type : Screw
- Body Material : G80 Alloy Steel
- Pin Diameter : 0.78 inch (19.8 mm)
- Number of Pack : 5 Pcs
Applications
:D-Shackles are widely used in various industries such as port operations, electricity generation, steel and shipbuilding, mining, railroad construction, chemical metallurgy, auto manufacturing, plastic machinery, industrial control, road and transport equipment, marine and airport engineering, as well as slope tunnel and well control.
