0.5 HP, Single Phase
21M Max. Head, 1980 LPH Max. Discharge
1 Year Warranty
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Kirloskar

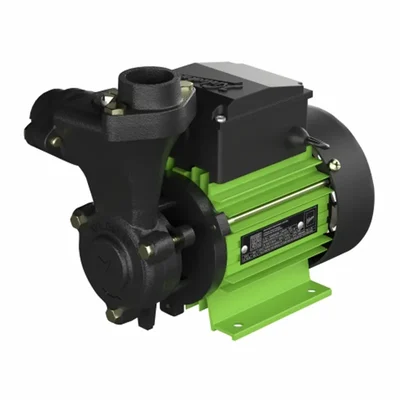

Kirloskar 0.5Hp Single Phase Self Priming Monoblock Pump, 21m Max. Head, 25x25mm (ANAYA - II) - 1 Year Warranty
SKU : TI-KA-18141
MRP : ₹5600
₹3799
32% OFF!
-
1
+
693 people have viewed this recently
Delivery By: Jun 20 - Jun 22
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Kirloskar Self Priming Monoblock Pump
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 0.5 hp
- Weight (Approx.) : 5.5 kg
- Flow Rate : 33 lpm
- Head : 21 meter
- Model No : ANAYA - II
- Product Type : Self Priming Monoblock Pump
- Brand : Kirloskar
- Power : 0.37 kW
- Electricity Connection : Single Phase
- Rated Voltage : 220 Volt
- Insulation Class : B
- Current Rating : 2 Amp.
- Pipe Size (Suction X Delivery) : 25x25 mm
- Head Range : 6 to 21 Meter (19 to 68 Feet)
- Discharge Range : 1980 to 680 LPH (33 to 11 LPM)
Material Of Construction :
- Impeller : Brass
- Pump Shaft : Carbon Steel
- Motor Body : Aluminium
- Cover NDE : Aluminium
- Delivery Casing : Cast Iron
- Seal : Carbon Vs Ceramic
Description
The Kirloskar Anaya-II is a self-priming monoblock pump intended for a range of uses, including home water supply, building sites, car washes, lawn sprinklers, gardens, fountains, and feedwater for RO plants. This pump powered by a 0.5 HP motor with a single-phase power source. The pump has a capacity of max. 1980 liters per hour (LPH) and can reach a head of 21 meters. The impeller material is brass, and the motor body is made of aluminum.
Features
:- Cathodic Electro Deposition (CED) Coating : CED is the latest coating technology for corrosion resistance with a uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
- Advanced Electrical Design : Lesser current for same output (compared to any other similar products)
- Wide Voltage Range Operability : The motor is designed to withstand wide voltage variation from 180 to 260 volts and reduces chances of motor burning due to low / high voltage.
- Lightweight and Compact Design : It allows users to carry the pump anywhere with ease, adding to its portability and convenience of use.
- High Suction Lift : The pump has a suction lift capacity of up to 7.5 meters.
- Enhanced Safety Features : All electrical parts of the pump are covered, which makes it safer to use.
- Dynamically Balanced Rotating Parts : Minimum vibration protect components from damage during the operation, thus ensuring consistent performance as concentricity is maintained.
- TOP - Thermal Overload Protector : The pump set features a Thermal Overload Protector that protects the motor from overloading, shielding of the motor and associated circuit from the effects of fault current.
- Shielded Ball Bearing : The pumps are fitted with shielded ball bearings, which results in low noise level and so no external lubrication is required throughout the life cycle.
Applications
:- Water supply to overhead tanks in bungalows
- Gardens / Fountains
- Feedwater to RO plants
- Domestic water supply
- Construction sites
- Car washing
- Lawn sprinklers
WARRANTY :
- 1 Year Onsite Warranty.
