Short Description

HPM 275 Amps DC Welder Cum Generator Machine With Lithium Battery

Recoil and Self Start

Petrol Operated

Maximum Ac Output 5000 VA

Welds Upto 5 mm Electrode

Description

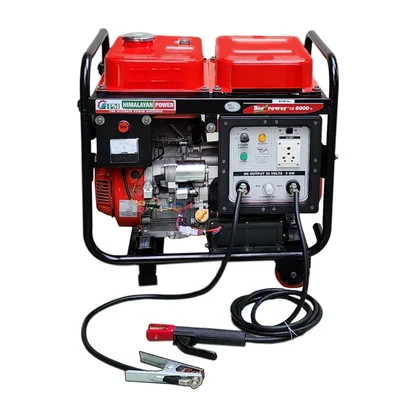

HPM 275 Amps Recoil and Self Start Petrol Operated DC Welder Cum Generator Machine With Lithium Battery (GE-W8000RS)

Description :

• Portable Arc Welder Cum Generator Machine Suitable for All types of General Purpose Structural Welding, Light & Heavy Welding Jobs, up to 5mm Electrode

Features :

• A.C. Circuit Protector (NFB)

• A.C. Pilot Lamp

• Engine Oil Protection (Electronic Oil Alert & Indicator)

• Fuel Level Gauge

• A.C. Output Sockets

• Costar Wheels and handles

Specifications :

• Model No. : GE-W8000RS
• Product Type: Welder Cum Generator
• Brand : HPM
• Battery Power : 12 Volt 25 Ah
• Dimension (LxWxH) : 660 x 500 x 575 mm
• Weight : 103 Kg (Approx.)

DC Welding :

• Maximum Output (Duty Cycle 60%) : 275 Amps.
• Working Voltage : 20 V to 35 V

• Open Circuit Voltage (OCV) : 70 Volt (Maximum)

• Current Regulation Amps : 40-275
• Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge

• Maximum Electrode diameter : 2.6 mm to 5.0 mm


AC Generator :

• Alternator Type : Brushless with Rear Earth Magnet Rotor.
• AC. Voltage On Eco Mode : 220 Volts ± 10 Volts, Single Phase
• AC. Voltage On Power Mode (No Load) : 250 Volts ± 5 Volts, Single Phase
• Rated Current : 20.5 Amps.
• NFB Amps : 21 Amps.
• Rated Power : 4500VA
• Peak Power (for 1 Minute) : 5000 VA
• Frequency : 50 to 60 Hz.
• Class of Insulation : F

Engine :

• Model : HM192P
• Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
• Maximum Power : 16HP
• Bore x Stroke : 92×67
• Displacement : 460cc
• Starting System : Recoil Start / Self Start
• Ignition System : TCI (Transistor Control Ignition)
• Fuel : Standard Petrol
• Fuel Tank Capacity : 15.5 Liters
• Fuel Consumption # Ltr./Hr : 2.0 Ltr./hr.
• Continuous Operating Hour : Approx. 8 hr.
• Lube. Oil Capacity : 1200 ml.
• Lubricating Oil Consumption : 4.3 gm./Hr

Accessories :

• AC Plug : 1 Pc

• Tool Kit : 1 Set

• Welder Holder : 1 Set

• Earthing Clamp with 3 Mtr. Cable : 1 Set

• Oil Funnel : 1 No

• Owner’s Manual : 1 No

• Battery Terminal : 1 Set

• Battery Tray & Holding Set : 1 Set

Optional Accessories :

• Sheet Metal Welding Attachment(Helps to adjust low current up to 50 Amps.) : 1 Kit (Additional Cost)
• Costar Wheels : Optional (Wheels & Handle Sets)@(Additional Cost)

Panel And Other Standard Features :

• A.C. Circuit Protector : Yes
• A C. Pilot Lamp : Yes
• Engine Oil Protection : Electronic Oil Alert & Indicator
• Fuel Level Gauge : Yes
• A.C. Output Sockets : 1 Nos.

Note :

• Do not use the welder for work other than welding.
• Do not touch the live part.
• Do not solder in places where skimming, cleaning and spraying are required.
• When using, please wear a protective cover or protective clothing.
