Servotech 6VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support, 5 Years of Warranty

Brand : Servotech

SKU : TI-S6-37383

MRP :

₹76999

Get Extra ₹1,155 OFF on Prepaid Orders

Delivery By: Jun 18 - Jun 20

Add to Cart

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Servotech Solvion Series

Single Phase On-Grid Inverter

Country of origin: India

Specification

Brand: Servotech
Weight (Approx.) : 7 kg

Embedded DC Switch : Optional
Night power consumption (W) : < 0.2
Isolation type : Transformerless
Protection degree : IP65 according to IEC60529
Operation temperature (oC) : -25~+60
Cooling concept : Smart Cooling
Operatiing Altitude (m) : <2000m without power derating
Acoustic noise level (dB) : < 25
Display : Graphic LCD
Communication Interface : Standard WIFI; RS485 (optional)
Warranty : Standard 5 years
Dimension (L x W x H) : 370 x 318.5 x 105.5 mm

DC Side / Input Parameters

Model No : ST-ONGINV6KW/S1
Max DC power (W) : 7500W
Max DC voltage (Vdc) : 550
Min System start/Shut down voltage (Vdc) : 75/100
MPPT voltage range(Vdc) : 100~500
Max. input current (A) : 22A
Max. input short circuit per MPPT : 30A
Number of MPP trackers : 1
Strings per MPP tracker : 1

AC Side / Output Parameters

Nominal output power (W) : 6000
Maximum output power (W) : 6600
Nominal output voltage/range (V) : 208,220,230,240/180~270
AC grid frequency/range (Hz) : 50Hz, 60Hz(auto-selection) /44Hz-55Hz; 54Hz-65Hz
Maximum output current (A) : 28
AC connection (with PE) : Single phase
Current distortion (THDi) Power factor : <2.5%
Power factor : ~1% (Adjustable from 0.8 leading to 0.8 lagging)

Efficiency

Maximum conversion efficiency : 97.60%
European efficiency : 97.30%
MPPT efficiency : 99.90%

Safety and Protection

DC reverse-polarity protection : Yes
Anti-islanding / Overvoltage protection : Yes
Short circuit protection : Yes
Leakage current protection : Yes
Grid monitoring / Ground fault monitoring : Yes
Efficiency : Yes
DC/AC side SPD(thermally protected) : Yes

Description

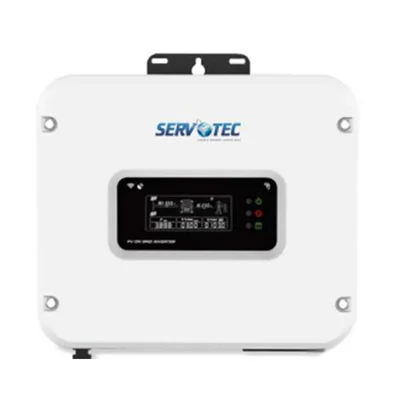

The Servotech 6VA MPPT Solvion Series On-Grid Three Phase Solar Inverter is a high-efficiency solar inverter designed for seamless integration with residential, commercial, and institutional solar systems. It features MPPT technology for optimized energy conversion, pure sine wave output for stable power, and dual technology support for grid and solar compatibility. With a 5-year warranty, it ensures long-term reliability and performance.

Features

6VA Capacity – Provides efficient power conversion for various applications.
MPPT Technology – Maximizes solar energy utilization for improved performance.
Three-Phase System – Ensures stable and balanced power distribution.
On-Grid Functionality – Allows direct connection to the utility grid.
Advanced Protection – Includes overload, short circuit, and overcharge safeguards.
Energy-Efficient Operation – Reduces electricity consumption and enhances system efficiency.
Smart LCD Display – Allows easy monitoring of system performance.
Compact & Durable Design – Ensures long-term reliability and easy installation.
