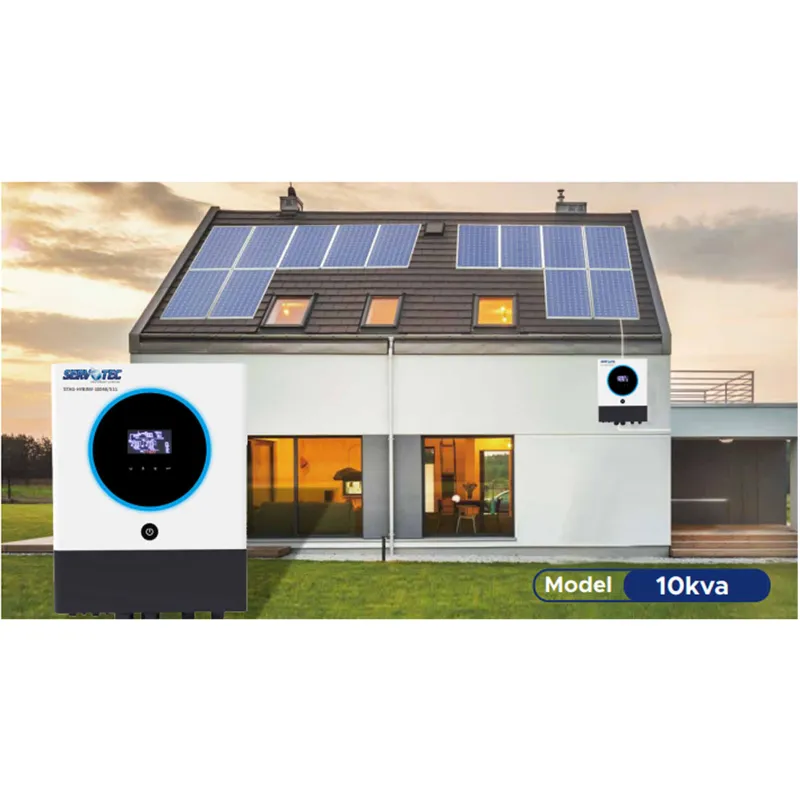

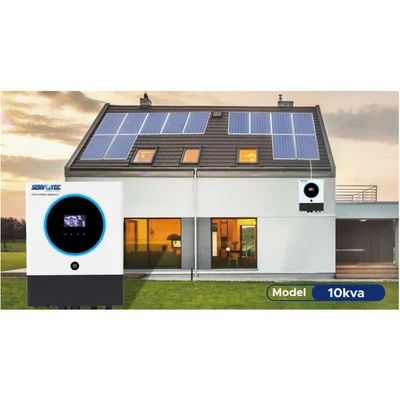

SERVOTECH 10KVA Amalgam Series Hybrid On Grid & Off Grid Solar Inverter For Home & Office With 2 Year of Warranty

Brand : Servotech

SKU : TI-S1-37769

MRP : ₹150000

₹132900

11% OFF!

Get Extra ₹1,994 OFF on Prepaid Orders

Delivery By: Jun 27 - Jun 29

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Servotech Amalgam Inverter

Hybrid Inverter

2 Years Of Warranty Only Available on Technical Faults

Country of origin: India

Specification

Brand: Servotech
Weight (Approx.) : 18.8 kg

Power : 10000VA

AC INPUT

Nominal Voltage(VAC) : 230VAC
Voltage range(VAC) : 170~280VAC / 90~280VAC
Frequency range(Hz) : 50/60Hz

AC OUTPUT

Surge Power : 16000
Output Voltage(VAC) : 220/230/240
Output Wave Form : Pure sine wave
Rated Frequency(Hz) : 50/60
Efficiency (Peak) : 93% max
Transfer time : 10ms typical(narrow range), 20ms typical (wide range)

BATTERY

Nominal DC voltage(VDC) : 48
Floating charge voltage(VDC) : 54
Overcharge protection(VDC) : 63
Battery type : Lithium & Lead-acid

SOLAR CHARGER & AC CHARGER

Max. PV Array Open Circuit Voltage(VDC) : 500
Max. PV Array Power(W) : 10000W(5000*2)
MPPT Input Voltage Range @ operating(VDC) : 60-450
Max. Input current(A) : 27*2(Max 40A）
Max. Solar Charging Current(A) : 120
Max. AC charging Current(A) : 120
Max. Charging Current(A) : 120

DISPLAY INTERFACE

Parallel function : Up to 6 units
Communication : Standard : RS232, CAN & RS485, Optional: WIFI, Bluetooth
Display : 5”colorful LCD

ENVIRONMENT

Humidity : 5~90%RH (No Condensing)

Operating Temperature : -10°C to 50°C

Dimensions D x W x H(cm) : 42 x 56.1 x 15.2

Description

The Servotech 10KVA Amalgam Series Hybrid Solar Inverter is a versatile and high-performance energy solution designed for home and office applications. It supports both on-grid and off-grid functionality, ensuring seamless power backup. Featuring MPPT technology, it optimizes solar energy conversion for maximum efficiency. With a 2-year warranty, this inverter offers reliable and sustainable energy management.

Features

10KVA Capacity – Provides robust power backup for various applications.
Hybrid Functionality – Supports both on-grid and off-grid operations.
MPPT Technology – Maximizes solar energy utilization for improved performance.
Pure Sine Wave Output – Ensures stable and smooth power for sensitive appliances.
Advanced Protection – Includes overload, short circuit, and overcharge safeguards.
Energy-Efficient Operation – Reduces electricity consumption and enhances battery life.
Smart LCD Display – Allows easy monitoring of system performance.
Compact & Durable Design – Ensures long-term reliability and easy installation.
