Brand: Servotech

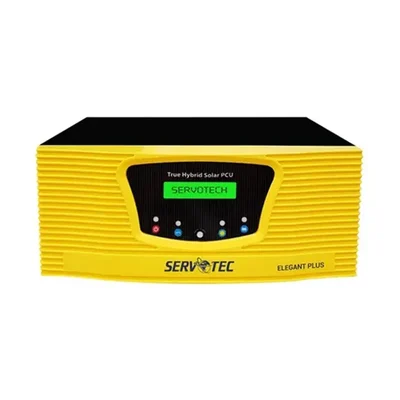

Servotech 2850VA 24V Elegant Plus 3524 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty
SKU: TI-S2-37142
Delivery By: Dec 20 - Dec 22
MRP : ₹22500 ₹16900
25% OFF!
Delivery By: Dec 20 - Dec 22 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹16900 (Including GST)
MRP : ₹22500
25% OFF!
Get Extra ₹254 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Servotech Solar Inverter
2850 VA
2 Years of Warranty Will Be Available on Technical Fault
Country of origin: India
Specifications
- Brand: Servotech
- Weight (Approx.) : 18 kg
- Model : EL-PCUGP-3524/S11 (70A)
- Capacity : 2850VA
- Operating DC Voltage : 24V
- Typical Efficiency : ≥82%
- Switching Element : MOSFET
- Charger Topology : Boost MOSFET
- Dimension (L x W x H) : 395 X 385 X 270 mm
Parameters (Grid) :
- Nominal Grid Voltage : 230V
- Nominal Frequency : 50Hz
- Frequency Range : 45-55Hz
- Output PF : 0.7
- Battery Charging Method (5 Stage) : Soft Start/Bulk/Absorption/Float/Equalize
- Grid-Battery Charging : TUB (Default) : Boost : 14.4V ± 0.2V (Each Battery)
- Grid-Battery Charging : TUB (Default) : Float : 13.8V ±0.2V (Each Battery)
- Grid-Battery Charging : SMF : Boost : 14.2V ± 0.2V (Each Battery)
- Grid-Battery Charging : SMF : Float : 13.8V ±0.2V (Each Battery)
- Grid-Battery Charging Current : Enable : Default : 15A±1A
- Grid-Battery Charging Current : Enable : Maximum : 18A±1A
- Grid-Battery Charging Current : Disable : Normal/Boost : Charging Current 0.0A
- Grid Reconnect @Battery Voltage : 11.7V ±0.2V (Each Battery)
- Grid Low Cut Voltage : UPS Mode Enable : 170V±10V
- Grid Low Cut Voltage : UPS Mode Disable : 100V±10V
- Grid Low Cut Recovery : UPS Mode Enable : 180V±10V
- Grid Low Cut Recovery : UPS Mode Disable : 110V±10V
- Grid High Cut Voltage : UPS Mode Enable : 265V ±10V
- Grid High Cut Voltage : UPS Mode Disable : 290V ±10V
- Grid High Cut Recovery : UPS Mode Enable : 255V ±10V
- Grid High Cut Recovery : UPS Mode Disable : 280V ±10V
- Changeover (Batt. to Mains) : UPS Mode Enable/Disable : <6ms
- Changeover ((Mains to Batt) : UPS Mode Enable/Disable : <25ms
- DG Mode : Disable
Parameters (Battery Mode)
- Output Phase : Single Phase
- Output Waveform : Sinewave
- Nominal Output Voltage : 220V ± 5%
- Max. Output Current : 7A
- Nominal Frequency : 50Hz±1
- Battery Low Buzzer : 10.8V ±0.02V (Each Battery)
- Battery Low Cut : 10.5V ±0.02V (Each Battery)
- Battery High Cut : 16.5V ±0.02V (Each Battery)
- Voltage THD : <3% (Linear Load)
- Overload Capacity : UPS Mode Disable : >110% 3-Times Auto Reset with 30sec. Delay and 4th Time Shut Down
- Overload Capacity : UPS Mode Enable : >110% 1st Time Shut Down after 30sec. Delay
- Protection : Overload, Battery Low, Battery High, Over Temperature, Short Circuit, PV Reverse, PV High, Mains Fuse Trip, Grid Overload, Wiring
Switches and LED Indication
- POWER : Function : ON/OFF UPS Output : SYSTEM ON-LED ON, SYSTEM OFF-LED OFF
- Inverter/UPS : When it is Short Pressed it Enable UPS/Inverter Mode Selection. When it is long Pressed Enables the UPS Parameter Setting - UPS Mode ON-LED ON, UPS Mode OFF-LED OFF
- SMF/TUB : When it is Pressed it Enables TUBULAR/SMF Battery Selection - TUBULAR Battery-LED ON, SMF Battery LED OFF
- Hybrid/PCU : When it is short pressed it enables Hybrid/PCU Mode Selection - PCU Mode - LED ON, Hybrid Mode - LED OFF
- Only LED : Solar Status Green/Red - Green LED ON - Full Solar used, Green LED Blinking - Partial Solar used, Green LED OFF No Solar used, Red LED ON-PV Reverse Protection, Red LED OFF-No Protection Selected
- Display : Battery Voltage, Solar Charging Current, Grid Charging Current, Solar Load Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load in % on Battery, Load in % on Solar, Charging Mode, Protection, Charging Mode, Solar Kwh (Saving), Solar Availability Status, Solar Working Mode (Hybrid/PCU Lite/PCU Ultra), UPS ON/OFF
Parameters (Solar)
- Switching Element : MOSFET
- Operating Mode HYBRID/PCU LITE/PCU ULTRA : Hybrid
- Type of charger : PWM
- SPV Charging Voltage : TUB : Boost : 15V ± 0.02V (Each Battery
- SPV Charging Voltage : TUB : Float : 14.2V ±0.02V (Each Battery)
- SPV Charging Voltage : SMF : Boost : 14.3V ± 0.02V (Each Battery)
- SPV Charging Voltage : SMF : Float : 13.9V ±0.02V (Each Battery)
- Efficiency : ≥97%
- Solar Current Min. : >1A (Below 1A, System will act like Solar Absent)
- Solar Current Max. : 70A
- Input Voltage Range (Min-Max) Voc : 17V-25V
- Maximum PV Power Recommended : 2000W
Parameters (Environment)
- Operating Temperature : 0-50°C
- Cooling : Fan
- Max. Relative Humidity@25°C (Non-condensing) : 95%
- Noise : 50dB
- Standard Compliance : IP20
Description
The Servotech 2850VA 24V Elegant Plus 3524 PWM Pure Sinewave Intelligent Solar Inverter is a high-efficiency solar-compatible inverter designed for home and commercial use. It features advanced solar protection, dual technology support, and pure sine wave output, ensuring stable and reliable power for sensitive appliances.
Features
:- 2850VA Capacity: Provides efficient power backup.
- 24V System: Optimized for energy conversion.
- Pure Sine Wave Output: Ensures smooth and stable power.
- Intelligent Solar PWM Technology: Enhances battery charging efficiency.
- Advanced Solar Protection: Prevents overload and short circuits.
- Dual Technology Support: Compatible with grid and solar power.
- Compact & Lightweight Design: Easy to install and transport.
- Energy-Efficient Operation: Reduces electricity consumption.
- Durable Build: Ensures long-term reliability.
- 1-Year Warranty: Provides manufacturer support.
