Single Phase On-Grid Inverter
Brand : Servotech

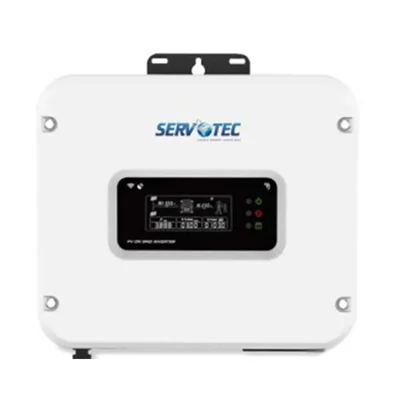

Servotech 3KVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support, 5 Years of Warranty
SKU : TI-S1-37322
MRP :
₹25999
-
1
+


Easy Return
& Refund
& Refund

Quality
Assurance
Assurance

Trusted
Delivery
Delivery

After Sales
Assistance
Assistance

Buyer
Protection
Protection
Short Description
Servotech Solvion Series
Country of origin: India
- Brand: Servotech
- Weight (Approx.) : 7 kg
- Embedded DC Switch : Optional
- Night power consumption (W) : < 0.2
- Isolation type : Transformerless
- Protection degree : IP65 according to IEC60529
- Operation temperature (oC) : -25~+60
- Cooling concept : Smart Cooling
- Operatiing Altitude (m) : <2000m without power derating
- Acoustic noise level (dB) : < 25
- Display : Graphic LCD
- Communication Interface : Standard WIFI; RS485 (optional)
- Warranty : Standard 5 years
- Dimension (L x W x H) : 300 x 294 x 104 mm
- Model No : ST-ONGINV3KW-S1
- Max DC power (W) : 4500W
- Max DC voltage (Vdc) : 550
- Min System start/Shut down voltage (Vdc) : 75/100
- MPPT voltage range(Vdc) : 100~500
- Max. input current (A) : 18A
- Max. input short circuit per MPPT : 25A
- Number of MPP trackers : 1
- Strings per MPP tracker : 1
AC Side / Output Parameters
- Nominal output power (W) : 3000
- Maximum output power (W) : 3300
- Nominal output voltage/range (V) : 208,220,230,240/180~270
- AC grid frequency/range (Hz) : 50Hz, 60Hz(auto-selection) /44Hz-55Hz; 54Hz-65Hz
- Maximum output current (A) : 16
- AC connection (with PE) : Single phase
- Current distortion (THDi) Power factor : <1.5%
- Power factor : ~1% (Adjustable from 0.8 leading to 0.8 lagging)
- Maximum conversion efficiency : 97.50%
- European efficiency : 97.20%
- MPPT efficiency : 99.90%
Safety and Protection
- DC reverse-polarity protection : Yes
- Anti-islanding / Overvoltage protection : Yes
- Short circuit protection : Yes
- Leakage current protection : Yes
- Grid monitoring / Ground fault monitoring : Yes
- Efficiency : Yes
- DC/AC side SPD(thermally protected) : Yes
The Servotech 3KVA MPPT Solvion Series On-Grid Single Phase Solar Inverter is a high-efficiency solar inverter designed for seamless integration with residential, commercial, and institutional solar systems. It features MPPT technology for optimized energy conversion, pure sine wave output for stable power, and dual technology support for grid and solar compatibility.
Features
:- 1KVA Capacity – Provides efficient power conversion for various applications.
- MPPT Technology – Maximizes solar energy utilization for improved performance.
- On-Grid Functionality – Allows direct connection to the utility grid.
- Advanced Protection – Includes overload, short circuit, and overcharge safeguards.
- Energy-Efficient Operation – Reduces electricity consumption and enhances system efficiency.
- Smart LCD Display – Allows easy monitoring of system performance.
- Compact & Durable Design – Ensures long-term reliability and easy installation.
