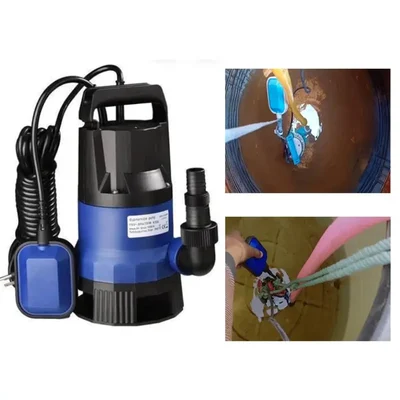

Heavy Duty 1.5 HP Single Phase Sewage Submersible Pump - PP Body & 15000 LPH

Brand: Generic (Imported)

Heavy Duty 1.5 HP Single Phase Sewage Submersible Pump - PP Body & 15000 LPH
4.8

Name: Heavy Duty 1.5 HP Single Phase Sewage Submersible Pump - PP Body & 15000 LPH
Brand: Generic (Imported)
SKU: SD-DM-21185
Price: 5019 INR
Availability: InStock
Rating: 4.77 (13 reviews)

SKU: SD-DM-21185

MRP : ₹7620 ₹5019

34% OFF!

289 people have bought this recently

Get Extra ₹75 OFF on Prepaid Orders

Delivery By: Dec 18 - Dec 20

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹5019 (Including GST)

MRP : ₹7620

34% OFF!

Get Extra ₹75 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

1.5 Hp Single Phase PP Body Sewage Submersible Pump

10 meters Max. Head

15000 LPH Max. Discharge

Country of origin: China

Brand: Generic (Imported)
Power : 1.5 hp
Weight (Approx.) : 6 kg
Flow Rate : 250 lpm
Head : 10 meter

Product Type : Sewage Submersible Pump
Wattage : 1.1 kW
Voltage : 230 V AC Supply
Electricity Connection : Single Phase
Max. Discharge Range : 15000 LPH (250 LPM)
Cable Length : 5 meter
Max. Head Range : 10 meter (33 feet)
Max Submersible Depth : 7 meter (23 feet)
Solid Size : Up to 35 mm
Delivery Size : 50 mm
Temperature Range : Up to 35 °C
Shaft Material : Stainless Steel
No Load Speed : 2800 RPM

How To Operate :

Connect a discharge pipe with a diameter at least equal to the diameter of the pump outlet.
Immerse the pump in the liquid to be sucked, by making an angle of 45 degrees (to reduce the amount of air rapped in tho pump body) the pump rests on he bottom, make sure it is on a flat and stable surface.
Make sure that no one is present in the liquid to be pumped.
Plug the pump to the mains.

The drainage pump is used for draining pits and deep roadway underpasses, as well as for de-watering basements and courtyards subject to a flooding risk or groundwater. It is usually started automatically via float switches.

Features

Built-in overload motor protector with automatic reset permanent split capacitor.
Impeller: Noryl.
Superior Steel Shaft with the rotor.
Mechanical seal: Carbon-ceramics.
Type Con galleggiante with float switch.
Protection: IP 68.

Applications

Submersible draining pumps is suitable for automatic fixed domestic applications and for draining cellars and garages subject to flooding, also particularly useful as a portable pump for emergencies such as draining waste from tanks or rivers, emptying muddy swimming pools, fountains or excavations and subways. These pumps can lift liquids even with suspended solids in sewage water from septic tank. Level float switch offers permanent and automatic pump operation.

Note : As the head or height increases the flow rate continues to decrease.
