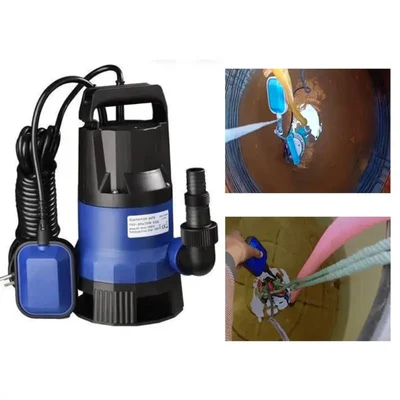

Heavy Duty 1 HP Single Phase Sewage Submersible Pump PP Body & 12000 LPH

Brand: Generic (Imported)

Heavy Duty 1 HP Single Phase Sewage Submersible Pump PP Body & 12000 LPH
4.8

Name: Heavy Duty 1 HP Single Phase Sewage Submersible Pump PP Body & 12000 LPH
Brand: Generic (Imported)
SKU: SD-DM-21184
Price: 4399 INR
Availability: InStock
Rating: 4.83 (17 reviews)

SKU: SD-DM-21184

MRP : ₹6000 ₹4399

27% OFF!

462 people have bought this recently

Get Extra ₹66 OFF on Prepaid Orders

Delivery By: Dec 9 - Dec 11

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹4399 (Including GST)

MRP : ₹6000

27% OFF!

Get Extra ₹66 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

PP Body Sewage Submersible Pump

1 HP (0.75 kW) Single Phase Motor

12000 LPH (200 LPM) Discharge Range

Country of origin: China

Brand: Generic (Imported)
Power : 1 hp
Weight (Approx.) : 4 kg
Flow Rate : 200 lpm
Head : 8 meter

Product Type : Sewage Submersible Pump
Power : 230 V AC Supply
Electricity Connection : Single Phase
Wattage : 0.75 kW
Max. Discharge Range : 12000 LPH (200 LPM)
Cable Length : 5 meter
Max. Head Range : 8 meter (26 feet)
Max Submersible Depth : 7 meter (23 feet)
Delivery Size : 50 mm
Solid Size : 35 mm
Outlet Size : G1-1/4"
Body Material : PP Body
Fluid Temperature : Up to 60 deg C
Ambient Temperature : Up to 35 deg C
No Load Speed : 2800 RPM

How To Operate :

Connect a discharge pipe with a diameter at least equal to the diameter of the pump outlet.
Immerse the pump in the liquid to be sucked, by making an angle of 45 degrees (to reduce the amount of air rapped in the pump body) the pump rests on he bottom, make sure it is on a flat and stable surface.
Make sure that no one is present in the liquid to be pumped.
Plug the pump to the mains.

The drainage pump is used for draining pits and deep roadway underpasses, as well as for de-watering basements and courtyards subject to a flooding risk or groundwater. It is usually started automatically via float switches.

Features

Built-in overload motor protector with automatic reset permanent split capacitor.
Impeller: Noryl.
Superior Steel Shaft with rotor.
Mechanical seal: Carbon-ceramics.
Type Con galleggiante with float switch.
Protection: IPx8.

Applications

Submersible draining pumps is suitable for automatic fixed domestic applications and for draining cellars and garages subject to flooding, also particularly useful as a portable pump for emergencies such as draining waste from tanks or rivers, emptying muddy swimming pools, fountains or excavations and subways. These pumps can lift liquids even with suspended solids in sewage water from septic tank. Level float switch offers permanent and automatic pump operation.

Note : As the head or height increases the flow rate continues to decrease.
