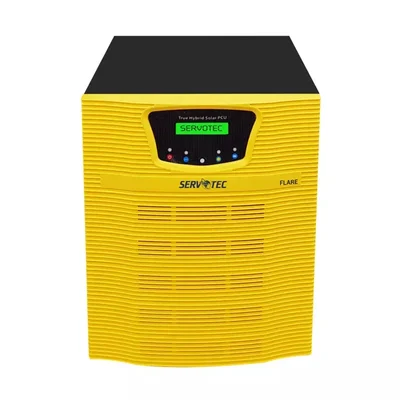

Servotech 3KVA 48V Flare Series 3548 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with Dual Technology Support

Brand : Servotech

SKU : TI-S3-37173

MRP :

₹36950

Get Extra ₹554 OFF on Prepaid Orders

Delivery By: Jun 18 - Jun 20

Add to Cart

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Servotech Solar Inverter

3000VA

Country of origin: India

Specification

Brand: Servotech
Weight (Approx.) : 29 kg

Model : STF-PCUOGP-3548/S11 ( 48v )
Capacity : 3000VA
Operating DC Voltage : 48V
Typical Efficiency : ≥82%
Switching Element : MOSFET
Charger Topology : Boost MOSFET
Dimension (L x W x H) : 430 X 400 X 500 mm

Parameter (Grid)

Nominal Grid Voltage : 230V
Nominal Frequency : 50Hz
Frequency Range : 45-55 Hz ± 1 Hz
Output PF : 0.7
Battery Charging Method (5 Stage) : Bulk/Absorption/Float/Equalize
Grid-Battery Charging : TUB (Default) : Boost : 14.4V ± 0.2V (Each Battery)
Grid-Battery Charging : TUB (Default) : Float : 13.8V ±0.2V (Each Battery)
Grid-Battery Charging : SMF : Boost : 14.2V ± 0.2V (Each Battery)
Grid-Battery Charging : SMF : Float : 13.8V ±0.2V (Each Battery)
Grid-Battery Charging Current : Enable : Default : 15A±1A
Grid-Battery Charging Current : Enable : Maximum : 18A±1A
Grid-Battery Charging Current : Disable : Normal/Boost : Charging Current 0.0A
Grid Reconnect @Battery Voltage : 11.7V ±0.2V (Each Battery)
Grid Low Cut Voltage : UPS Mode Enable : 170V±10V
Grid Low Cut Voltage : UPS Mode Disable : 100V±10V
Grid Low Cut Recovery : UPS Mode Enable : 180V±10V
Grid Low Cut Recovery : UPS Mode Disable : 110V±10V
Grid High Cut Voltage : UPS Mode Enable : 265V ±10V
Grid High Cut Voltage : UPS Mode Disable : 290V ±10V
Grid High Cut Recovery : UPS Mode Enable : 255V ±10V
Grid High Cut Recovery : UPS Mode Disable : 280V ±10V
Changeover (Batt. to Mains) : UPS Mode Enable/Disable : <6ms/<6ms
Changeover ((Mains to Batt) : UPS Mode Enable/Disable : <6ms/<30ms
DG Mode : Disable

Parameters (Battery Mode)

Output Phase : Single Phase
Output Waveform : Sinewave
Nominal Output Voltage : 220V ± 5%
Max. Output Current : 9.5A
Discharging Current : 50A±2A
Nominal Frequency : 50Hz±1
Battery Low Buzzer : 10.8V ±0.02V (Each Battery)
Battery Low Cut : 10.5V ±0.02V (Each Battery)
Battery High Cut : 16.5V ±0.02V (Each Battery)
Typical Efficiency : ≥84
Voltage THD : <3% (Linear Load)
Overload Capacity : UPS Mode Disable : >110% 3-Times Auto Reset with 30sec. Delay and 4th Time Shut Down
Overload Capacity : UPS Mode Enable : >110% 1st Time Shut Down after 30sec. Delay
Overload Capacity : >150% Output Goes Down
Protection : Overload, Battery Low, Battery High, Over Temperature, Short Circuit, PV Reverse, PV High, Mains Fuse Trip, Grid Overload, Wiring

Switches and LED Indication

POWER : Function : ON/OFF UPS Output : SYSTEM ON-LED ON, SYSTEM OFF-LED OFF
Inverter/UPS : When it is Short Pressed it Enable UPS/Inverter Mode Selection. When it is long Pressed Enables the UPS Parameter Setting - UPS Mode ON-LED ON, UPS Mode OFF-LED OFF
SMF/TUB : When it is Pressed it Enables TUBULAR/SMF Battery Selection - TUBULAR Battery-LED ON, SMF Battery LED OFF
Hybrid/PCU : When it is short pressed it enables Hybrid/PCU Mode Selection - PCU Mode - LED ON, Hybrid Mode - LED OFF
Only LED : Solar Status Green/Red - Green LED ON - Full Solar used, Green LED Blinking - Partial Solar used, Green LED OFF No Solar used, Red LED ON-PV Reverse Protection, Red LED OFF-No Protection Selected
Display : Battery Voltage, Solar Charging Current, Grid Charging Current, Solar Load Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load in % on Battery, Load in % on Solar, Charging Mode, Protection, Charging Mode, Solar Kwh (Saving), Solar Availability Status, Solar Working Mode (Hybrid/PCU Lite/PCU Ultra), UPS ON/OFF

Photovoltaic Input

Input Voltage Range (Min Max) : 80-260 VDC
Maximum PV Power Recommended : 3.0 KW

MPPT Based Charging Controller

Switching Element : Mosfet
Controller : ARM-Cortex
Type of Charger : MPPT
Efficiency : 95%

Parameter (Environment)

Operating Temperature : 0-50°C
Cooling : Fan
Max. Relative Humidity (@25°C (Non Condensing) : 95%
Noise 1 Meter : 50dB
Standard Compliance : IP20

Description

The Servotech 3KVA 48V Flare Series 3548 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter is a high-performance solar inverter designed for off-grid applications. It features MPPT technology for efficient solar energy conversion, pure sine wave output for stable power, and dual technology support for grid and solar compatibility. Ideal for home and commercial use, it ensures reliable backup power with advanced protection features.

Features

3KVA Capacity – Provides robust power backup for various applications.
48V System – Optimized for energy conversion and battery efficiency.
MPPT Technology – Maximizes solar energy utilization for improved performance.
Pure Sine Wave Output – Ensures stable and smooth power for sensitive appliances.
Dual Technology Support – Compatible with both grid and solar power sources.
Advanced Protection – Includes overload, short circuit, and overcharge safeguards.
Energy-Efficient Operation – Reduces electricity consumption and enhances battery life.
Smart LCD Display – Allows easy monitoring of system performance.
Compact & Durable Design – Ensures long-term reliability and easy installation.
