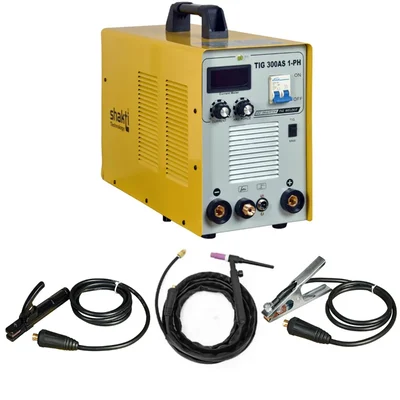

Shakti Technology TIG-300AS IGBT Inverter Type Welding Machine Single Phase With 1 Year Warranty
SKU : AB-ST-20230547
MRP : ₹35000
₹28700
18% OFF!
-
1
+
1070 people have viewed this recently
Get Extra ₹431 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Dual Operation  TIG & MMA
High performance IGBT Technology
Suitable for welding different metals
Simple to use

Country of origin: China
Specification
Description
A non-consumable tungsten electrode is used in the TIG (Tungsten Inert Gas) welding method to create the weld. To prevent ambient contamination of the weld region, an inert gas, usually argon, is used in the process. With a maximum output current of 200 amps, a 200 A TIG welding machine can be used for a variety of welding tasks, especially those involving thin materials and precision work.

Features :
  • Dual Operation: The welding machine can be operated both as MMA (Manual Metal Arc) and Tungsten Inert Gas (TIG). 1. TIG welding uses a non-consumable tungsten electrode to produce the weld. The weld area and electrode are protected by an inert shielding gas (argon). 2. In MMA, with consumable, flux-covered electrodes and a ground clamp, a short-circuit is initially made on the weld piece.
  • Suitable for welding different metals such as steel, stainless steel, nickel alloys, copper, brass and bronze etc..
  • Simple to use : The friendly user interface makes machine setup easy.


Specifications :
  • Model No. : TIG-300AS 1-PH
  • Product Type : Inverter welding Machine
  • Brand : Shakti Technology
  • Input Voltage : 1ph ~AC220V±15% 50/60 Hz
  • Rated Input Current(A) : 52
  • Input Power(KVA) : 11.5 KVA
  • Output Current Range(A) : 10-300
  • VRD&VRD Voltage : NO
  • Duty Cycle @25°C : 60%
  • No Load Voltage(V) : 56
  • Protection & Insulation : IP21 & F
  • Efficiency (%) : 80
  • Power Factor (cosφ) : 0.93
  • Dimension (mm) Approx. : 505x203x375 mm
  • Suitable Tungsten Rod : 1.6 - 3.2 mm
  • Suitable Welding Plate-Thickness : 0.5-10 mm
  • Weld Materials : Stainless Steel, Copper, Iron

Accessories :
  • Tig Torch
  • Earthing Clamp with cable
  • Holder With Cable

Applications :
  • TIG welding is used for welding stainless steel and other non-ferrous metals, including copper, brass, and bronze.
  • It is also commonly used in the automotive industry for welding exhaust systems, fuel tanks, and other automotive components.
  • It is ideal for welding critical joints, where precision and quality are essential, such as in the manufacture of medical devices, instruments, and components.
  • TIG welding machines are used in the fabrication of precision parts for the electronics industry, such as in the manufacturing of electronic .

Warranty : 1 Year Warranty on PCB Only

Note :
  • Do not use the welder for work other than welding.
  • Do not touch the live part.
  • Do not solder in places where skimming, cleaning and spraying are required.
  • When using, please wear a protective cover or protective clothing.
