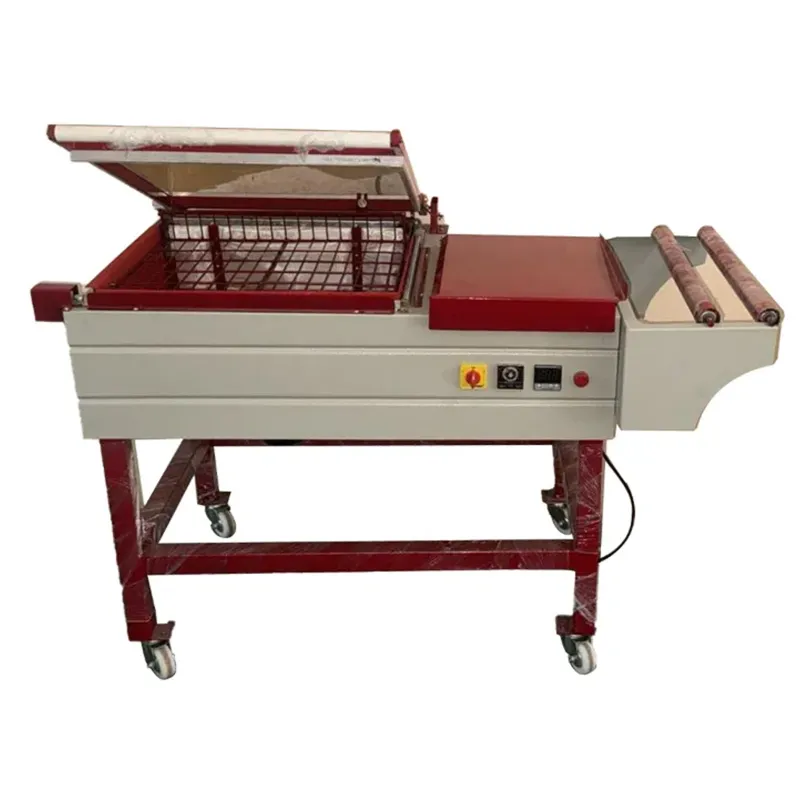

Generic (Imported) - Commercial 4 Kw Shrink Chamber Machine of 15 x 20 inch Sealing Size

Brand : Generic (Imported)

Commercial 4 Kw Shrink Chamber Machine of 15 x 20 inch Sealing Size

SKU : TI-C4-13113

MRP :

₹54999

701 people have viewed this recently

Get Extra ₹825 OFF on Prepaid Orders

Delivery By: Jun 20 - Jun 22

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Shrink Chamber Machine

Powder Coated Body

4 Kw Power Consumption

Country of origin: China

Specification

Brand: Generic (Imported)
Weight (Approx.) : 90 kg

Model : PM-57/SC
Body : Powder Coated
Power Source : Electric
Voltage : AC 220
Frequency : 50 Hz
Power Consumption : 4 kw
Sealing Size (W x L) : 15 x 20 inch (38.1x50.8cm)
Product Dimension : 450 x 300 x 250 mm
Dimension (L x W x H) : 1985 x 720 x 1080 mm
Machine Weight : 90 kg (Approx.)

Description

This Shrink Chamber Machine is a packaging equipment that wraps things securely in shrink film. It works by manually feeding the product into a chamber, closing the hood, and then automatically sealing and shrinking the film surrounding it using heat. This procedure creates a smooth, compact package that improves product protection and attractiveness. These machines are meant to be efficient, with little operator training and the ability to vary sealing duration and temperature.

Features

Sealing Size : The machine is designed to accommodate a sealing size of 15 x 20 inches, making it suitable for various packaging needs.
Power Consumption : It operates at a power rating of 4 kW, which provides sufficient energy for efficient heating and sealing processes.
Chamber Design : The design includes a spacious chamber that allows for continuous operation without overheating, facilitating high-volume production runs.
Durability and Build Quality : Constructed from robust materials that withstand the rigors of industrial use while maintaining consistent performance over time.

Applications

Packaging : Shrink chamber machines are primarily used for packaging products in a tight, protective film. This method is prevalent in the food and beverage industry but is also applicable to items like books, electronics, and industrial goods.
Gift Wrapping : These machines can efficiently wrap gifts for shipping, reducing size and weight while ensuring the items remain undamaged during transit.
Industrial Use : Shrink chamber machines can handle large industrial items, providing protection against bumps and scratches during shipping.
Tamper Resistance : The shrink wrap acts as a seal that indicates whether a product has been opened or tampered with, enhancing consumer confidence.

Usage

1. Preparation :

Ensure the machine is placed on a stable, flat surface.
Plug in the machine and turn it on to allow it to heat up.

2. Adjust Settings :

Set the sealing time using the timing knob on the control panel.

3. Loading Film :

Place the roll of shrink film onto the roller at the back of the machine.
Pull enough film forward to cover the area you intend to seal.

4. Positioning Pouches :

Place your pouches or items that need sealing under the sealing bar, ensuring they are aligned properly for an even seal.

5. Sealing Process :

Press down on the sealing arm firmly to initiate sealing.
Release once done; this should create a secure seal across the pouch.

Maintenance :

Inspect Sealing Jaws : Look for any signs of damage or wear that could affect sealing quality.
Clean Sealing Jaws : Use a soft cloth and a non-abrasive cleaning solution to remove any residue.
