Brand : Generic (Imported)
Three Phase Thermal Shrink Packaging Machine 18x10 inch, 9KW
SKU : DAR-SH-05
MRP : ₹60000
₹55000
8% OFF!
-
1
+
Get Extra ₹825 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

Thermal Shrink Packaging Machine

Voltage : 380V,3PH, 50-60Hz

It is suitable for shrink films such as POV, PVC, PP, POF, etc.

Country of origin: China
Specification
  • Brand: Generic (Imported)
  • Weight (Approx.) : 76.5 kg
  • Model No. : BSA 450 / BSD 4525
  • Voltage : 380V,3PH, 50-60Hz
  • Power : 9KW
  • Conveyor speed : 0-10 m/min
  • Tunnel size (L x W x H) : 830 x 450 x 250 mm
  • Conveyor loading : 15 kg
  • Shrink Film : POF,PVC,PP,POP
  • Heater type : Quartz heater
  • Heater size : 370mm x 15
  • Machine size (L x W x H) : 1200 x 650 x 1300mm
  • Weight : 76.5 Kg (Approx.)
Description

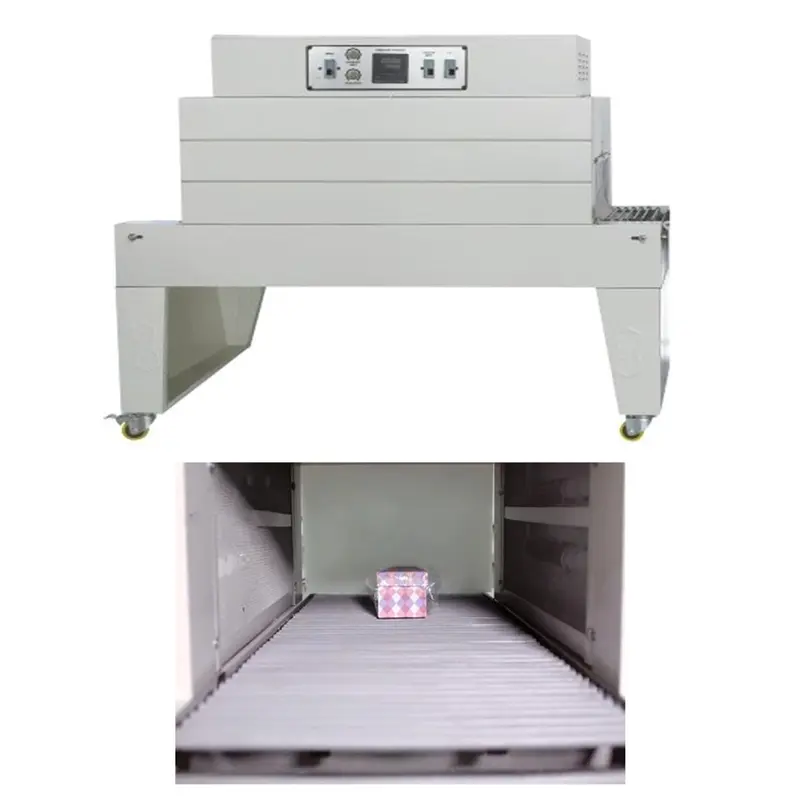

This thermal shrinking packaging machine have shrinking tubes on the top, bottom and sides of the shrinking room. The temperature of the infra-red room and the speed of the conveyor are adjustable. It is used in the packaging industry to apply heat to shrinkable materials, typically plastic films, around products for protection and presentation.

Features

 :
  • Compact construction, high efficiency.
  • Strong air-flow ensures excellent heat distribution for an even shrinking.
  • The temperature controlling system makes the operation easily.
  • The speed of the conveyer is adjustable.

Usage

 :
1. Setup the Machine :
  • Place the thermal shrink packaging machine on a stable, flat surface.
  • Ensure that the machine is connected to a power source.
2. Prepare the Product :
  • Place the product you want to package into a suitable shrink film bag.
  • Make sure the bag is large enough to accommodate the product with some extra space for sealing.
3. Adjust Settings :
  • Turn on the machine and adjust the settings according to the type of shrink film being used.
4. Load Products :
  • Place the prepared product with the shrink film bag onto the machine’s conveyor for sealing.
  • Ensure that products are spaced adequately to allow for proper sealing and shrinking.
5. Start Operation :
  • Activate the machine by pressing the start button.
  • Once sealed, products will move through the heating chamber where hot air will cause the film to shrink tightly around each item.
6. Collect Finished Products :
  • Once packaged, collect your finished products from the output area of the machine.

Maintenance :
  • Inspect the machine daily for any signs of wear or damage.
  • Monitor the shrink tunnel temperature to avoid overheating, which can cause burn holes in the film.

Applications

 :
  • Product Packaging : They are widely used for packaging bottles, cans, and other containers where a tight seal is required.
  • Labeling : Shrink tunnels can be utilized to apply shrink sleeves or labels that conform tightly to the shape of the product.
  • Food Industry : In food packaging, shrink tunnels help preserve freshness by sealing products in airtight packaging.
  • Cosmetics and Pharmaceuticals : They are also employed in the cosmetics and pharmaceutical industries for tamper-evident seals.
