Brand: Nutronics

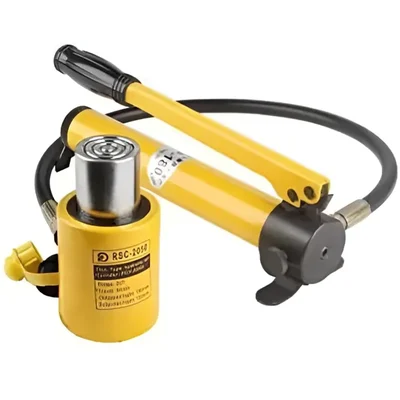

Nutronics 20T 2-Inch Stroke Single Acting Solid Hydraulic Cylinder Ram Jack with CP-180 Hand Pump
SKU: TI-N2-77029
Estimated Delivery By: Jul 17 - Jul 19
MRP : ₹17600 ₹12999
26% OFF!
Estimated Delivery By: Jul 17 - Jul 19 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹12999 (Including GST)
MRP : ₹17600
26% OFF!
Get Extra ₹195 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
A heavy-duty 20-ton solid hydraulic cylinder jack bundle featuring a 2-inch (50mm) stroke, single-acting configuration, and a compact CP-180 manual hand pump for high-pressure lifting.
Country of origin: China
Specifications
- Brand: Nutronics
- Weight (Approx.) : 3.8 kg
- Load Capacity : 20 ton
- Lifting Range : 56 - 106 mm
- Type: Single-Acting Solid Hydraulic Cylinder Ram Jack
- Load Capacity: 20 Ton (20,000 kg)
- Stroke (Maximum Lifting Height): 50 Millimetres (2 Inch)
- Total Extended Height: 156 mm (Calculated from minimum height + stroke)
- Minimum Height: 56 Millimetres
- Cylinder Total Height (Body): 106 mm
- Outside Diameter: 85 mm
- Inner Diameter: 50 mm
- Material Type: Solid Metal
- Colour: Yellow
- Pump Model: CP-180 Manual Hand Pump
- Pump Oil Storage Capacity: 400 cc
- Pump High Pressure Rating: 60 kg/cm²
- Vehicle Service Type: Sport Utility Vehicle, Truck
- Automotive Fit Type: Universal Fit
Description
The Nutronics Hydraulic Cylinder is a robust and reliable tool engineered for heavy-duty lifting, pushing, and positioning applications. Featuring a powerful 20-ton load capacity and a 2-inch (50mm) vertical stroke, this solid single-acting hydraulic ram delivers dependable linear force exactly where it is needed. Constructed out of premium, heavy-duty solid metal, it is built to survive long-lasting commercial use. The kit arrives paired with a matching CP-180 manual hydraulic hand pump to generate the exact fluid pressure required to handle normal operation under heavy loads. Its powerful capacity, durable construction, and user-friendly operation make it a valuable asset for rigorous industrial settings.
Features
:- Heavy-Duty Solid Construction: Crafted from high-strength solid metal to deliver superior durability and withstand extreme mechanical strain.
- Compact Single-Acting Design: Employs a single-acting fluid mechanism optimized for highly reliable one-way linear lifting and pushing.
- High Tonnage Output: Safely manages massive structural weights and vehicle frames up to 20 tons.
- Portable Hand Pump Included: Packaged with the CP-180 manual hand pump, featuring a 400cc oil reservoir for smooth field operation without electric power.
- Universal Application Support: Form-fit for automotive body repair shops, industrial fabrication setups, and structural rigging projects.
Applications
:- Automotive Body & Frame Repair: Ideal for heavy frame straightening, aligning truck chassis, and lifting large SUVs.
- Industrial Fabrication & Welding: Provides precision spacing, alignment support, and component positioning for heavy metal plates and Weldments.
- Rigging & Heavy Lifting: Serves as a compact helper for lifting machinery, leveling heavy structures, and low-clearance positioning.
- General Mechanical Maintenance: Universally useful for pressing out large pins, pushing tight bearings, and moving structural machinery.
Usage
:- Situate the solid hydraulic cylinder ram on a firm, flat, and unyielding surface directly underneath the load's designated lift point.
- Attach the high-pressure fluid hose securely between the CP-180 manual hand pump and the quick-connect port on the hydraulic ram.
- Tighten the manual pressure release valve on the side of the CP-180 hand pump by turning it clockwise.
- Pump the manual handle smoothly up and down to transfer oil, extending the inner cylinder to lift or push the load up to 50mm.
- Lower the load after work is finished by slowly twisting the pump's release valve counter-clockwise, allowing the fluid to vent back into the 400cc reservoir.
