Brand: Generic (Imported)

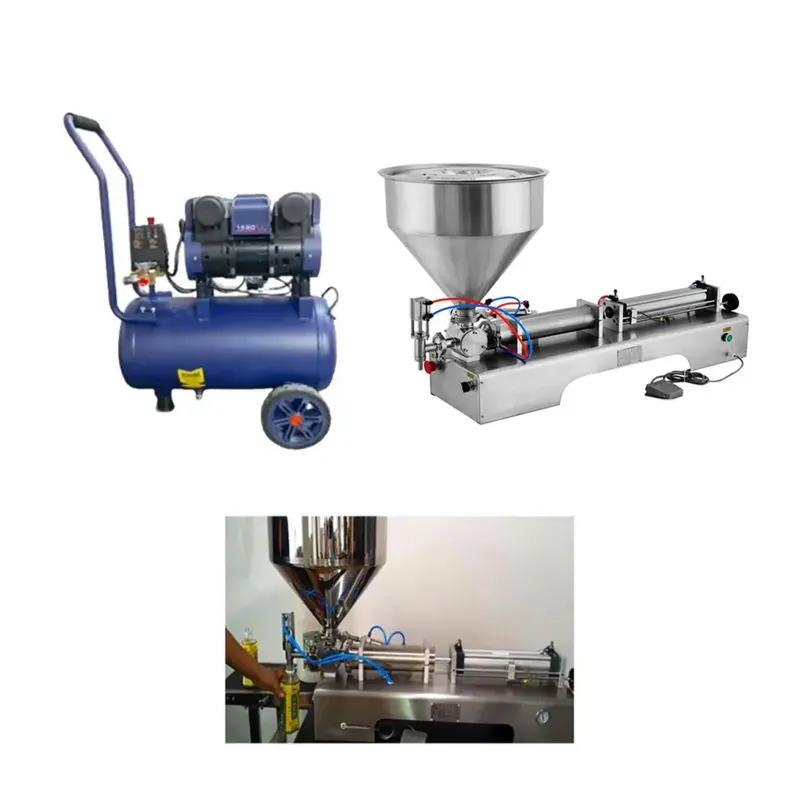

Combo of Single Nozzle Paste Filling Machine 100-1000 ml with Compressor
SKU: SI-PF-17232
Delivery By: Jun 24 - Jun 26
MRP : ₹86700 ₹75416
13% OFF!
Delivery By: Jun 24 - Jun 26 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹75416 (Including GST)
MRP : ₹86700
13% OFF!
Get Extra ₹1,131 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Single Head Paste Filling Machine
100-1000 ml Filling Capacity
600-1500 Bottle/Hour Production Capacity
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 35 kg

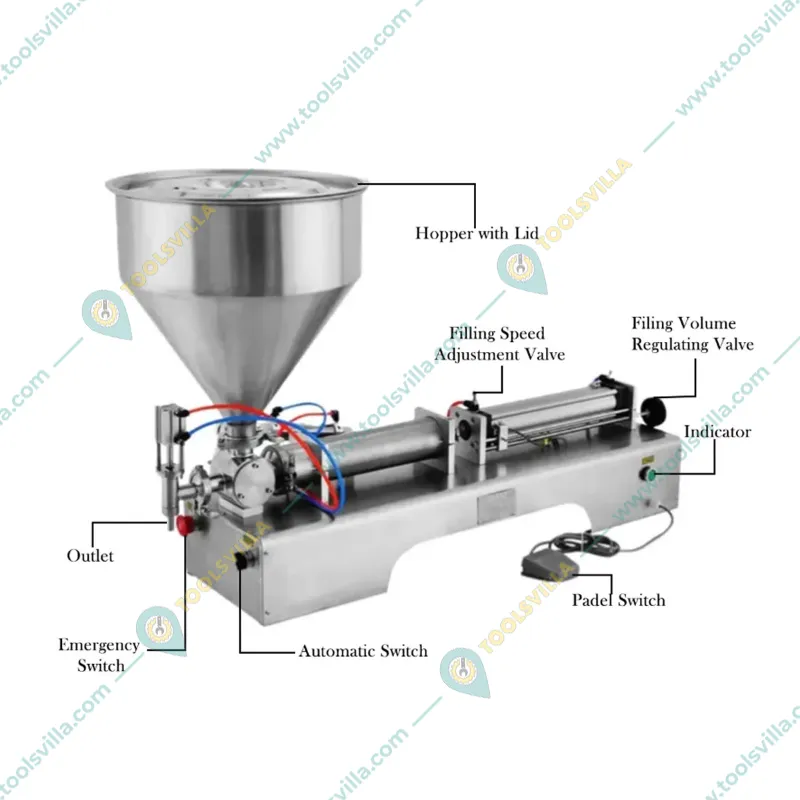

Paste Filling Machine
NOTE : This machine is not suitable for Grease filling.
- Power source : 220V/110V
- Phase : Single
- Frequency : 50Hz
- Filling Head : Single Head
- Filling Volume : 100-1000 ml
- Capacity of Hopper : 20 L
- Air Supply : 200 LPM
- Air Pressure : 0.6 Mpa
- Efficiency : 600-1500 bottles per hr
- Weight : 35Kg (Approx)

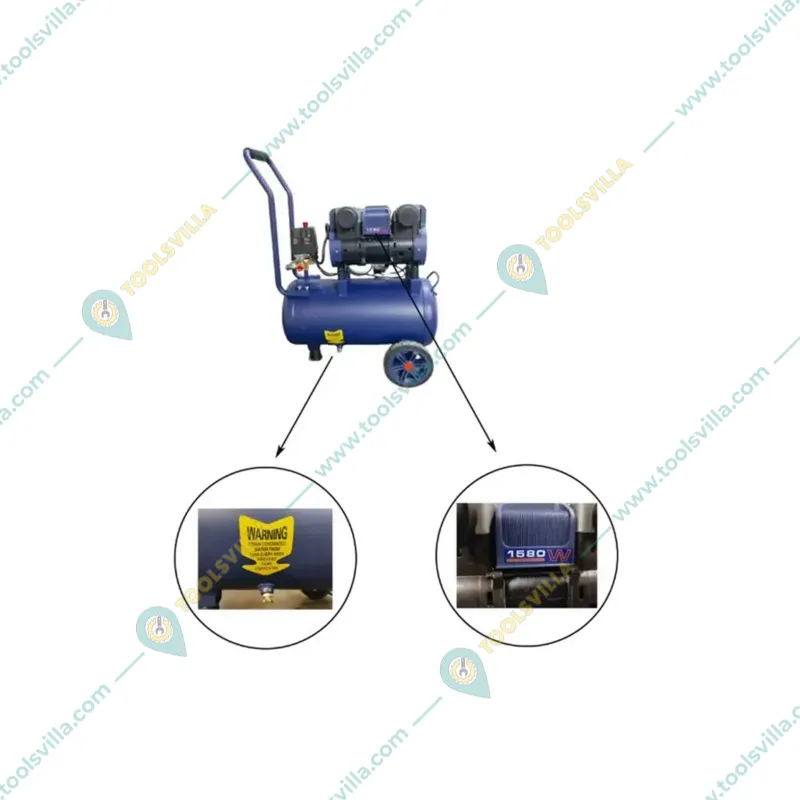

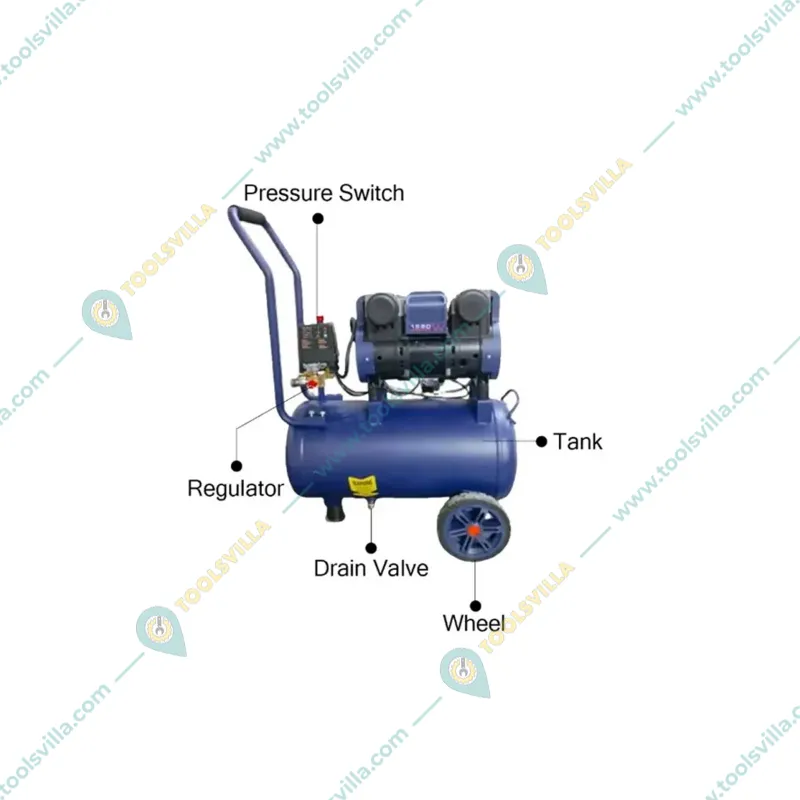

Air Compressor
- Voltage : 220 V
- Frequency : 50 Hz
- Power : 1580 W
- Tank Capacity : 30 Litres
- Motor Speed : 2850 RPM
- Air Pressure : 0.8 MPa
NOTE : This machine is not suitable for Grease filling.
Description
This single nozzle paste filling machine is used in many industries, including food and beverage, pharmaceuticals, cosmetics, and chemicals. This machine use compressed air to power their filling processes, making them efficient and reliable at dispensing liquids and pastes into containers. The addition of an air compressor improves the performance of these devices by ensuring that the products being filled are not contaminated by oil or other lubricants.
Features
:- It offers easy maintenance access and has readily available replacement parts.
- It has adjustable pressure settings to accommodate different filling requirements
- It is designed to be energy-efficient, reducing operational costs over time by consuming less electricity while providing adequate power output for your needs.
- This compressor has a sufficient flow rate to maintain continuous operation without interruptions.
Applications
:- Cosmetics : The machine can fill products like shampoo, shower gel, conditioner, lotion, facial cleanser, sunscreen, and mask essence water. These are common cosmetic products that require precise filling to ensure product quality and consistency.
- Food Industry : In the food industry, the semi-automatic paste filling machine can be used to fill products such as sauces (like chili sauce and bean paste), fruit juices, ketchups, milk, and other viscous food items. These products often have varying viscosities and require accurate filling to maintain product integrity.
- Pharmaceuticals : For pharmaceutical applications, the machine can fill substances like creams, and other pharmaceutical pastes with high precision. The ability to adjust the filling volume makes it suitable for a variety of pharmaceutical products that need to be accurately dispensed.
- Chemical Industry : For chemicals such as lubricants or adhesives that may have varying thicknesses, this machine provides an effective solution for packaging these products into appropriate containers.

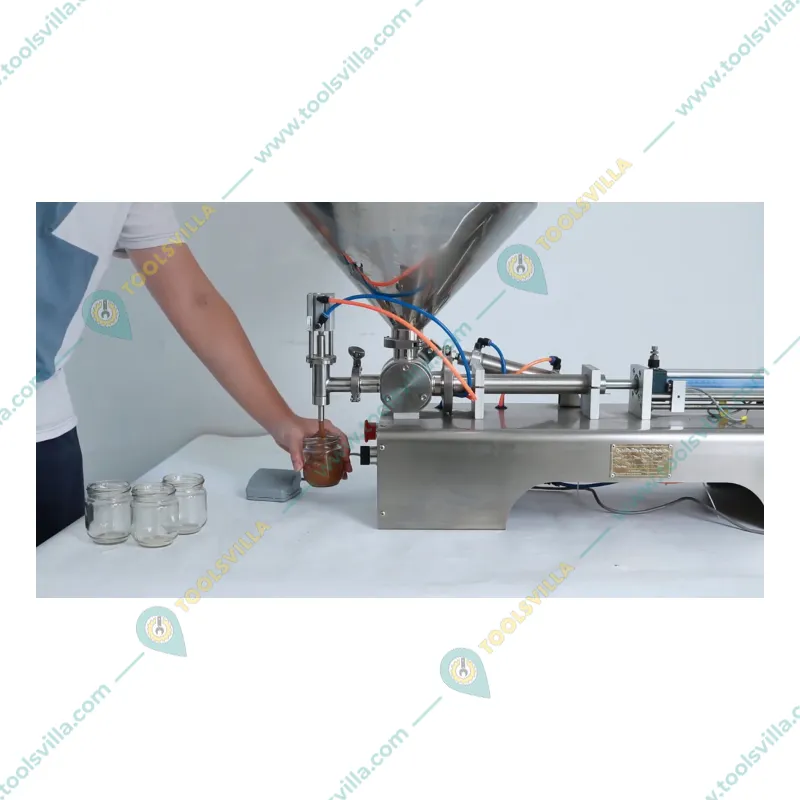

Usage
:- Prepare the Machine : Ensure that the machine is clean and sanitized before use to maintain product quality and hygiene standards.
- Set Up the Machine : Adjust the settings on the machine according to the type of paste being filled, such as viscosity and filling volume.
- Fill the Paste : Place the container under the filling nozzle of the machine. Manually place the paste into the hopper or cylinder of the machine.
- Initiate Filling Process : Start the filling process either by using a footswitch or a manual button on the machine, depending on its specific operation mechanism.
- Monitor Filling : Keep an eye on the filling process to ensure accurate and consistent filling of paste into containers.
- Complete Filling : Once the container is filled with the desired amount of paste, stop the filling process and remove the filled container from under the nozzle.
Maintenance :
- Regular Inspections : Implement a consistent inspection program to identify wear, loose components, or operational anomalies early on.
- Parts Replacement : Keep critical spare parts on hand to avoid delays in case of breakdowns. Replace worn-out parts promptly as part of preventative maintenance.
- Seal Replacement : Check and replace seals immediately upon signs of deterioration to prevent leaks and maintain filling precision.
- Operator Training : Train operators on correct machine use and maintenance practices to prevent accidents and damage due to misuse.
