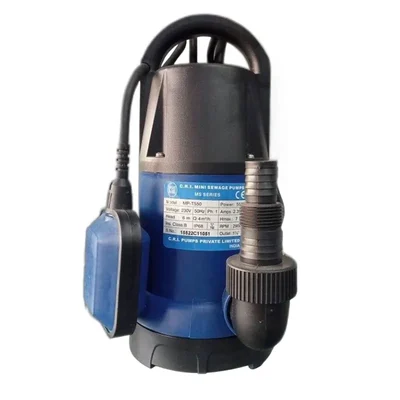

A submersible sewage pump from CRI offers features that support efficient waste handling. A sewage pump is a single-phase pump since power requirements are lower. Sewage pumps from CRI have impellers that are non-clog type. They help in the free flow of solids.
Features
:
Heavy duty bearings
High efficiency copper wound motor
In built capacitor for single phase and contactor for three phase which eliminates starter
Safe and quite operation
Most reliable and hard wearing
Tailor – made designs
Multipurpose applications
Easy and cost effective serviceability
Specification
:
Product Type: Power - 0.5HP
Brand: CRI
Model No : MP - T550
Product Type : Sewage Submersible Pump
Brand : CRI
Power : 0.75 Hp (550 Watt)
Electricity Connection : Single Phase
Rated Voltage : 230 Volt, 50 Hz AC Power Supply
Outlet Size : 1 1⁄2"
Solid Handling Capacity : 25 mm
Max Flow : 7980 LPH (133 LPM)
Max Head : 7 Meter (22 Feet)
Max. Immersible Depth : 5 Meter
Degree Of Protection : IP 68
Insulation Class : E
Max. Ambient Temperature : 40°C
Max. Liquid Temperature : 35°C
pH Value : 6 to 8.5
Weight : 6.8 Kg (Approx.)
Material Of Construction :
Pump Body : Plastic
Impeller : Thermoplastic
Shaft : S.S 304
Pump Casing : Plastic
Mechanical Seal : Carbon Ceramic
Accessories
:
10 Meter Long Cable
Float Switch
Applications
:
Draining sewage water from hotels, houses, commercial buildings, complexes etc.
Pumping waste water in Industries, Tunnels and mines
Pumping sewage water from stock farm and manhole sewer
