Brand: Toshweld

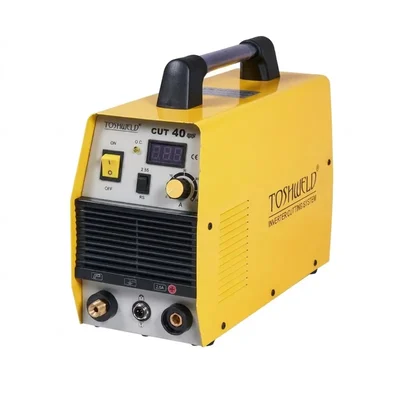

Toshweld 6.6kVA Single Phase MOSFET Plasma Cutting Machine, Portable 40A Metal Air Cutter, MOSFET PLASMA CUT 40
SKU: TI-TC-72138
Estimated Delivery By: May 24 - May 26
MRP : ₹28565 ₹23804
17% OFF!
Estimated Delivery By: May 24 - May 26 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹23804 (Including GST)
MRP : ₹28565
17% OFF!
Get Extra ₹357 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
A highly efficient 40A single-phase inverter air plasma cutter engineered with reliable MOSFET technology and a 6.6kVA power capacity. It easily slices through carbon steel, stainless steel, and aluminum sheets up to 6mm thick.
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 9 kg
- Output Current Range : 40 amp
- Technology : MOSFET
- Model Number: CUT 40 MOSFET PLASMA
- Machine Type: Inverter Air Plasma Cutting Machine
- Technology: MOSFET Inverter System
- Phase: Single Phase (1 Phase)
- Input Voltage Range: AC230+-10%
- Input Power Capacity: 6.6 kVA
- Output Current Range: 15 – 40 Amp
- Rated Input Current: 30 A
- Rated Output Voltage: 96 V
- Required Working Air Pressure: 4 – 5 kg
- Duty Cycle: 60% (0.6)
- Power Factor: 0.73
- Efficiency: 80% (0.8)
- Insulation Class: F
- Protection Index: IP21
- Cutting Thickness Range: 0.3 mm – 6.0 mm
- Dimensions: 15.5 x 6 x 12 Inches (393.7 x 152.4 x 304.8 mm)
Description
Designed for precise metal ripping and fabrication, the Toshweld CUT 40 MOSFET PLASMA is a professional-grade, small inverter air plasma cutting equipment. Compared to mechanical tools, this machine offers a more stable pilot arc and smoother cutting edges thanks to its multi-card MOSFET architecture, which has been demonstrated in the field. It has an adjustable output current range of 15 to 40 Amps and operates on conventional single-phase 230V AC lines with a 6.6kVA input capacity. Stainless steel, carbon steel, low-alloy steel, and copper sheets with thicknesses ranging from 0.3mm to 6.0mm are all cleanly parted by this lightweight 9 kg machine, which has a 60% duty cycle rating.
Features
:- Stable MOSFET Inverter Core: Immediate arc striking, dynamic arc stability, and extremely manageable maintenance are guaranteed by a tried-and-true multi-card layout.
- Clean Slag-Free Cutting: Rips through conductive metals up to 6 mm thick with little warping or heat distortion.
- Digital Parameter Tracking: Equipped with a bright front digital ammeter for accurate output current reading and balancing.
- Dual Air/Gas Check Integration: Before starting the cutting arc, operators can manually purge or test gas lines thanks to the integrated front check switch.
- Strong Circuit Protections: Equipped with an automatic O.C. (over-current) fault indication, Class F insulation characteristics, and an IP21 housing protection index.
- Lightweight Industrial Chassis: With an ergonomic top-mounted handle for maximum transportation on job sites, this chassis weighs just 9 kg.
Applications
:- Sheet metal fabrication involves cutting metal blanks into precise templates, patterns, panels, and bespoke brackets.
- Cutting through rusting floor pans, exhaust pipes, body brackets, and light frame reinforcement components is automotive body customization.
- HVAC Vent Manufacturing: Quickly cutting out unique pattern corners and thin galvanized ducting sheets.
- Dismantling old steel tanks, storage enclosures, railings, and structural plates up to 6 mm is known as scrap metal downsizing.
Usage
:- Attach a clean, moisture-free air compressor system that can sustain 4 to 5 kg of pressure to the rear intake port.
- Connect the ground clamp to the negative (-) output and firmly interface the plasma torch connection lead to the corresponding front gas-electric drain socket.
- Tightly fasten the return grounding clamp directly onto a portion of your intended target metal workpiece that is bare, ground, and free of corrosion.
- To achieve your desired Amps based on sheet thickness, turn on the front power rocker switch and turn the current adjustment knob.
- After an arc break, make sure the torch nozzle gets enough cooling air flow by pressing the 2.5S/5S post-flow switch position.
