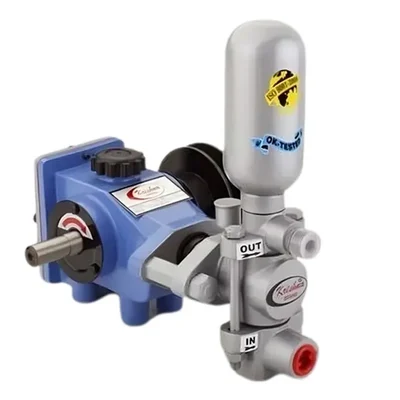

Krishna 1 HP Single Piston HTP Pump, 1440 RPM (KE-C1-12)

Features

• Single Piston (Simplex) Design: The pump utilizes only one piston or plunger. As the piston moves backward, it creates a vacuum, drawing fluid into the cylinder through an inlet valve. When the piston moves forward, it displaces the fluid, forcing it out through an outlet valve at high pressure.
• Piston (or Plunger) Pump: This type of pump operates on the principle of positive displacement. The reciprocating motion of the piston directly displaces a fixed volume of fluid with each stroke.

Specification

• Model Number : KE-C1-12
• Number of Piston : 1
• Normal Working Pressure : 0-150 PSI(10Kg./cm²)
• Maximum Pressure : 250 PSI (15 Kg)
• Pump RPM : 900 RPM
• Suction Capacity : 12 LPM
• Motor Power : 1 HP
• No-Load Speed : 1440 RPM
• V-Belt Size : B-32
• Main Body Material : Cast Iron
• Head Material : Cast Iron
• Piston Material : Stainless Steel
• NRV Material : Stainless Steel
• Stroke Length : 20 mm
• Piston Diameter : 30 mm

Accessories

Applications
