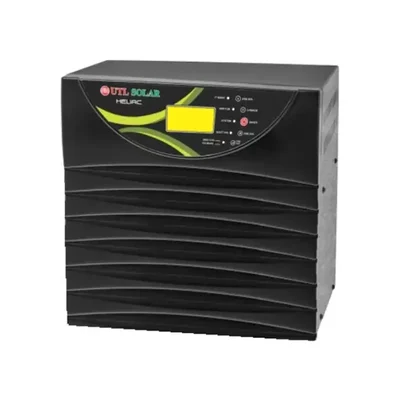

UTL HELIAC 3000 -24V Inverter 2200VA 24V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops With 3 Years Warranty

Brand: UTL

UTL HELIAC 3000 -24V Inverter 2200VA 24V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops With 3 Years Warranty
5.0

Name: UTL HELIAC 3000 -24V Inverter 2200VA 24V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops With 3 Years Warranty
Brand: UTL
SKU: TB-UT-51753
Price: 12700 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TB-UT-51753

MRP : ₹16600 ₹12700

23% OFF!

1004 people have viewed this recently

Get Extra ₹191 OFF on Prepaid Orders

Delivery By: Jan 31 - Feb 2

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹12700 (Including GST)

MRP : ₹16600

23% OFF!

Get Extra ₹191 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

UTL HELIAC 3000 -24V Inverter
2200VA 24V HELIAC SOLAR PCU Solar Inverter
For Home, Office & Shops With 3 Years Warranty

Country of origin: India

Brand: UTL
Weight (Approx.) : 25 kg

System Rating : 2200VA
Operating DC Voltage : 24V
Switching Element : MOSFET
Charger Topology : Boost Mosfet
Max. Battery Capacity : 200AH
Operating Mode : Smart mode (Default)
Optional DG mode : Disable (Default)
Solar Power Maximum : 2000W

Parameters (Grid)

Nominal Grid Voltage : 230V 1Φ
Nominal frequency : 50Hz
Frequency Range : 47-53Hz ± 1Hz
Battery Charging Method 3 Stages : Bulk/Absorption/Float/Equalize
Default charging mode : Tubular
Grid - Battery Charging Voltage (TUB) : 14.5V ± 0.2V
Grid - Battery Charging Voltage (LITHIUM) : 13.8V ± 0.2V
Grid Charging Current : 12A/15A ± 2A
Optional Grid charging : Enable
Grid Reconnect @ Battery Voltage (TUB) : 11.8V ± 0.2V
Grid Reconnect @ Battery Voltage (LITHIUM) : 12.4V ± 0.2V
Grid Low Cut Voltage : 170V ± 10V
Grid Low Cut Recovery : 180V ± 10V
Grid High Cut Voltage : 265V ± 10V
Grid High Cut Recovery : 255V ± 10V
Grid Low Cut Voltage : 100V ± 10V
Grid Low Cut Recovery : 110V ± 10V
Grid High Cut Voltage : 290V ± 10V
Grid High Cut Recovery : 280V ± 10V
Change Over (Battery to Mains) : <5ms
Change Over (Mains to Battery) : <12ms
Change Over (Mains to Battery) : <30ms

Parameters (Inverter)

Output Phase : 1Φ
Nominal Output Voltage : 230V ± 8%
Nominal Frequency : 50 Hz ± 1%
Max. Output Current : 4.3A
Battery Low Buzzer (TUB) : 10.8V ± 0.2V (Each Battery )
Battery Low Cut(TUB) : 10.5V ± 0.2V (Each Battery )
Battery Low Buzzer (LITHIUM) : 11.9V ± 0.2V (Each Battery)
Battery Low Cut (LITHIUM) : 11.6V ± 0.2V (Each Battery)
Battery High Cut (TUB) : 16.5 ± 0.2V (Each Battery)
Battery High Cut (LITHIUM) : 14.5 ± 0.2V (Each Battery)
Output Waveform : Sinewave
Typical Efficiency : >85%
Voltage Harmonic : <3% (Linear Load)

Parameters (Solar)

Switching Element : Mosfet
Type of Charger : PWM
SPV Charging Voltage (Boost) : 14.7V ± 0.2V (Each Battery)
SPV Charging Voltage (Boost) : 13.9V ± 0.2V (Each Battery)
Efficiency : >95%

UTL 2200VA 24V Offgrid PWM Solar PCU Home, HELIAC 3000-24V is a premium quality product from UTL. Moglix is a well-known ecommerce platform for qualitative range of Solar Inverter. All UTL 2200VA 24V Offgrid PWM Solar PCU Home, HELIAC 3000-24V are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture UTL 2200VA/24V Offgrid PWM Solar PCU Home, HELIAC 3000-24V, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. UTL products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of UTL Solar Inverter.

Features

Inbuilt Solar Charge Controller
: Ensures up to 30% more energy generation from solar panels compared to PWM controllers
Output Waveform : Modified Sine Wave output
Low Voltage Charging : Can charge the battery from the mains grid even with a low input voltage
Dual Priority Modes : Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money
Battery Health : Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life
Load Compatibility : Compatible with IT loads
Flexibility : Can operate without solar panels, functioning as a regular inverter initially
Protection : Comprehensive electronic protections
Display : LED display for operational status and fault indications.
