Brand : LUMINOUS

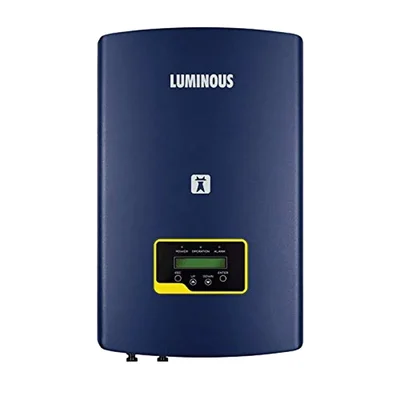

Luminous 5KW NXI 150 Solar Grid Tie Single Phase Inverter With 10 Years Warranty Designed for Residential Use
SKU : TI-L5-50786
MRP : ₹45000
₹39000
13% OFF!
-
1
+
Get Extra ₹585 OFF on Prepaid Orders
Delivery By: Nov 30 - Dec 2
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Luminous 3KW NXI 130 Solar Grid Tie Single Phase Inverter
10 Years Warranty
Designed for Residential Use
Country of origin: India
Specification
  • Brand: LUMINOUS
  • Weight (Approx.) : 12 kg
  • Rated output power (kW) : 5


Input DC
  • Max. DC Input Power (kW) : 7.5
  • Max. DC Input Voltage (V) : 550
  • Start-up Voltage [V] : 100
  • MPPT Voltage range (V) : 90 - 550
  • Max input current per MPPT (A) : 16
  • Number of MPPT : 2
  • Max Input Strings Number : 2


Output (AC)
  • Rated output power (kW) : 5
  • Max. output power [kW] : 5
  • Max. output Current [A] : 25
  • Grid Frequency range (Hz) : 50/60Hz
  • Power Factor (at rated output power) : 0.8 …1... 0.8
  • Total harmonic distortion [THDi] : < 1.5%
  • Feed-in phase/connection phase : Single Phase

Efficiency
  • Max. Efficiency :  >97.6
  • MPPT Efficiency :  >99.5

Protection
  • Inbuilt Protections :  DC Reverse Polarity Protection, Short Circuit Protection, O/P Over Current Protection, O/P Over voltage protection, Insulation resistance monitoring, Residual current detection, surge protection, slanding Protection, Temperature Protection

Interface
  • DC Connection : MC4 Connectors
  • Display : LED + Bluetooth App
  • Datalogger & Communication : RS485/GSM/WiFi* (Optional)

General Data
  • Topology : Transformerless
  • Consumption @ night : < 1 W
  • Operating Temperature Range : -25°C to 60°C
  • Cooling Method : Natural Convection
  • Relative Humidity : 0 - 100 %
  • Max. Operational Altitude : 4000m
  • Noise [dBA] : <30dBA
  • Designed Lifetime : > 20 years
  • Ingress Protection : IP66
  • Dimensions (W*H*D) (mm) : 310W *543H *160D

Standards
  • Safety/EMC : BIS Certified as per IS/IEC standards
Description
Luminous NXI 150 Grid Tie that can feed power from solar panels directly to grid. They are designed to quickly disconnect from the grid if the utility grid goes down (anti-islanding). More than 97% efficiency: The transformer-less design makes Luminous GTI highly efficient to deliver maximum Solar Power. Dual MPPT/Quad MPPT: Inbuilt MPPT charge controller extracts upto 30% more power from the panels. Dual/Quad MPPTs provides you the flexibility of connecting multiple arrays, which helps minimize the impact of shading, increases efficiency, resulting in more solar generation. IP65 Protection: Luminous GTI is IP 65 certified product hence it is suitable for outdoor Installation also. It can work in extreme weather conditions such as dust, heavy rains, excessive heat or extreme cold. Anti-Islanding protection: This does not send electricity to grid if Grid has failed, thereby ensures complete safety of line workers. MNRE & IEC compliance: GTI complies with all the National & International standards for safety and efficiency and reliability, such as IEC – 61683, IEC – 60068, IEC – 61000, IEC – 61727, IEC – 62116

Features

 :
  • Super high Frequency swiching technology
  • Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, anti-islanding, residual current detection
  • Inbuilt MPPT charge controller extracts upto 30% more power from Panels
  • User friendly Informative LCD Display
  • 10 Years Warranty
