Brand: Generic (Imported)

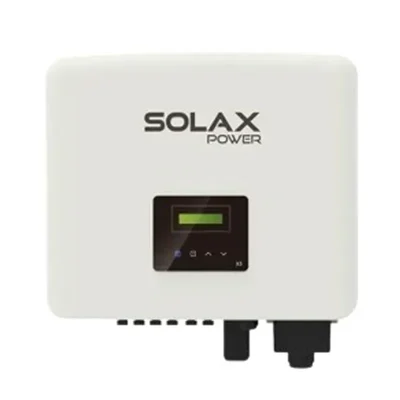

Solax X1-HYBRID-3.0-LV Solar Off Grid Inverters, Commercial Applications, Homes And Small Shops
SKU: TI-SX-63951
Delivery By: Feb 26 - Feb 28
MRP : ₹111200 ₹85500
23% OFF!
Delivery By: Feb 26 - Feb 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹85500 (Including GST)
MRP : ₹111200
23% OFF!
Get Extra ₹1,283 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Solax X1-HYBRID-3.0-LV Inverters
Solar Off Grid Inverters
Commercial Applications, Homes And Small Shops
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 24 kg
- Model Name : X1-HYBRID-3.0-LV
PV INPUT :
- Max. recommended PV array power : 6.0 kWp
- Max. PV input voltage : 600 V
- Rated PV input voltage : 360 V
- Operation voltage range : 70 = 550V
- MPPT voltage range : 70 = 550V
- Start-up voltage : 90 V
- No. of MPP trackers/Strings per MPP tracker : 2(1/1)
- Max. Input current per MPPT : 16A/16 A
- Max input short circuit current per MPPT : 20A/20 A
AC INPUT & OUTPUT (ON-GRID) :
- Rated output power : 3000 W
- Max. output apparent power : 3300 VA
- Max. output continuous current : 144A
- Rated AC voltage : 1/N/PE, 220/230/240 V
- Max. AC input apparent power : 6300 VA
- Max. AC input current : 27.4 A
- Nominal AC frequency : 50 Hz/60 Hz
- THDI (rated power) : <2%
BATTERY :
- Battery type : Lithium/Lead-acid
- Battery voltage range : 80-480 V
- Max. charge/discharge current : 30 A
EPS (OFF-GRID) OUTPUT (WITH BATTERY) :
- Rated EPS output voltage, frequency : 230 V, 50 Hz/60 Hz
- Rated EPS output power : 3600VA
- Peak EPS output power : 6000VA, 10s
- Switchover time : <10 ms
EFFICIENCY :
- Max efficiency : 97.6%
- European efficiency : 97.0%
ENVIRONMENT LIMIT :
- Ingress protection : IP65
- Operation temperature range : -35-60°C (45°C derating)
- Max operation altitude : 3000 m
- Relative humidity : 4-100% RH (condensing)
Description
The SolaX X1-Hybrid-3.0-LV is a high-performance, single-phase low-voltage battery storage inverter designed to provide energy independence for residential and light commercial settings. By integrating solar power generation with battery storage, it allows users to maximize self-consumption and maintain power during grid outages. Ideal for homes, small retail shops, and boutique offices, this inverter acts as the "brain" of a modern energy system. It efficiently manages power from solar panels, stores excess energy in batteries, and discharges it when demand is high or the sun isn't shining. Its "LV" (Low Voltage) designation makes it compatible with a wide range of affordable and safe battery technologies.
Features
:- EPS (Emergency Power Supply): Provides seamless backup power during blackouts with a changeover time of less than 10ms.
- High Efficiency: Optimized for maximum energy harvest from PV arrays even in low-light conditions.
- Dual MPPT Trackers: Allows for flexible roof installations (e.g., East-West orientations) to maximize sunlight exposure.
- Remote Monitoring: Full integration with the SolaX Cloud/App for real-time tracking of energy production and consumption.
- Compact & IP65 Rated: Robust design suitable for both indoor and outdoor installations, resisting dust and water.
- Scalable Storage: Easily pairs with low-voltage lithium batteries to expand capacity as energy needs grow.
