Brand: Generic (Imported)

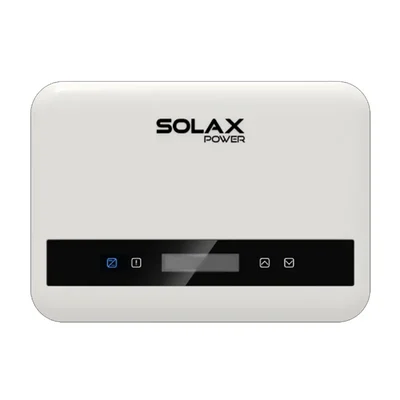

Solax X1-MINI-3.3K-G4 Solar Off Grid Inverters, Commercial Applications, Homes And Small Shops
SKU: TI-SX-63942
Delivery By: Feb 26 - Feb 28
MRP : ₹27600 ₹21200
23% OFF!
Delivery By: Feb 26 - Feb 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹21200 (Including GST)
MRP : ₹27600
23% OFF!
Get Extra ₹318 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Solax X1-MINI-3.3K-G4 Inverters
Solar Off Grid Inverters
Commercial Applications, Homes And Small Shops
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 7 kg
- Model Name : X1-MINI-3.3K-G4
DC INPUT :
- Max. PV array input power [Wp] : 6600
- Max. PV input voltage [V] : 550
- Startup voltage [V] : 50
- Nominal input voltage [V] : 360
- MPP tracker voltage range [V] : 40-550
- No. of MPP trackers / Strings per MPP tracker : 1/1
- Max. PV input current [A] : 16
- Isc PV Array Short Circuit current [A] : 22
AC OUTPUT :
- Rated AC output power [W] : 3300
- Rated AC output current [A] : 14.4
- Max. AC output apparent power [VA] : 3300
- Max. AC output current [A] : 15
- Nominal AC voltage/AC voltage range [V] : 220/230/240 ; 90-290
- Nominal AC frequency/AC frequency range [Hz] : 50/60 ; ±5
- Power Factor range : 0.8 leading~0.8 lagging
- THDi (Rated power) [%] : <3
SYSTEM DATA :
- Max. eciency [%] : 98
- Euro. eciency [%] : 97
- Standby consumption [W] @Night : <1
- Ingress protection : IP66
- Protection class : Class I
- Over voltage category : II (DC),III (AC)
- Operating ambient temperature range [°C] : -25~60
- Max. operation altitude [m] : <4000
- Humidity [%] : 0-100
- Typical noise emission [dB] : 25
- Storage temperature [°C] : -30~70
- Dimensions (W×H×D) [mm] : 290x206x120 mm
- Cooling concept : Natural cooling
- Communication interfaces : USB/RS485/DRM, Optional: Meter/CT
- Optional monitoring dongle : Pocket WiFi/LAN/4G
- Display : 2 x LED + LCD(16 x 2) / APP
Description
The Fourth Generation (G4) of the X1-Mini series is a "little powerhouse" that packs advanced industrial features into a chassis smaller than a sheet of A4 paper. It is the most powerful model in the Mini range, offering 3.3kW of AC output. Its ultra-low start-up voltage of 50V ensures the system starts generating power earlier in the morning and continues later into the evening, making it ideal for regions with variable weather or small roof spaces. While often searched in the context of "off-grid," it is technically an on-grid (grid-tied) inverter, designed to maximize self-consumption and reduce energy bills for modern homes and small businesses.
Features
:- High Efficiency: Boasts a maximum efficiency of 98% with a wide MPPT voltage range (40V–550V).
- PV Oversizing: Supports up to 200% DC oversizing, allowing you to install more solar panels to ensure peak AC output even on cloudy days.
- Smart Design: Features a fanless, natural cooling system for near-silent operation (<25dB) and an IP66 rating for flexible indoor or outdoor installation.
- Safety First: Includes built-in Type II Surge Protection (SPD) on both AC and DC sides, optional AFCI (Arc-fault protection), and a built-in export control function.
- Future-Ready: Compatible with SolaX’s Home EV Charger and Heat Pump solutions, with data monitoring refreshed every 10 seconds via SolaXCloud.
