Brand : Generic ( Made in India )

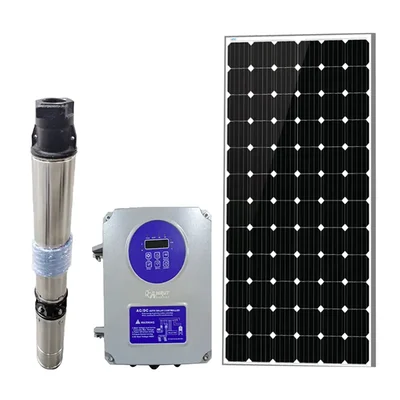

Amrut 1HP 50m Oil Filled Solar Submersible Pump With Controller & 545W Monocrystalline Solar Panel (1 Year Warranty)
SKU : TI-A1-36147
MRP : ₹50000
₹46999
6% OFF!
-
1
+
Get Extra ₹705 OFF on Prepaid Orders
Delivery By: Jun 5 - Jun 7
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Solar Submersible Pump
1 hp Solar Pump
Without Solar Panel
Warranty for 1 Year on Manufacturing Defect
Country of origin: India
Description
The Amrut 1HP Solar Water Pump Controller (without solar panel) is designed to efficiently manage the operation of a 1HP solar water pump. It utilizes MPPT (Maximum Power Point Tracking) technology to optimize solar energy usage, ensuring maximum efficiency. The controller is built with robust materials for durability and includes safety features such as over-voltage, under-voltage, and overload protection. Its user-friendly interface allows for easy installation and operation, making it suitable for agricultural, residential, and industrial applications.

Features

 :
  • Compatibility: Designed for 1HP solar water pumps.
  • Controller Type: Advanced MPPT (Maximum Power Point Tracking) technology for efficient solar energy utilization.
  • Durability: Built with robust materials for long-lasting performance.
  • Ease of Use: Simple installation and user-friendly interface.
  • Protection: Includes safety features like over-voltage, under-voltage, and overload protection.
  • Energy Efficiency: Optimizes solar power usage for cost-effective operation.

Specification

 :
  • Product Type: Solar Pump
  • Brand: Generic ( Made in India )
  • Weight (Approx.) : 73 kg
Solar Pump :
  • Voltage : 72 V
  • Material : Stainless Steel
  • Power Source : Solar
  • Phase : Three Phase
  • Motor Type : DC
  • Pressure : Low Pressure, High Pressure, Medium Pressure
  • Pump Head : 60m
  • Speed : 2800 RPM
  • Power : 1 HP
  • Head : 50m
  • LPM : 35
  • Outer Diameter : 95MM
  • NRV : 1.25 Inch

Controller :
  • Solar Input : 80-400V Dc
  • Current Upto : 12 Amp

Solar Panel :
  • No. of Cells : 144
  • Maximum Voltage Vmp (V) : 42.10V
  • Maximum Current I mp (A) : 12.96A
  • Open Circuit Voltage V oc (V) : 49.47V
  • Short Circuit Current I sc (A) : 13.75A
  • Maximum Series Fuse Rating (A) : 15.00A
  • Application Class : Class A
  • Power Tolerance (%) : 0 ± 3
  • Operational Temperature (°C) : - 40° to + 85°
  • Module Dimensions (mm) : 2279×1134×35
  • Maximum System Voltage (V) : 1000
  • Fire Rating : Class C
